ZTL431/ZTL432

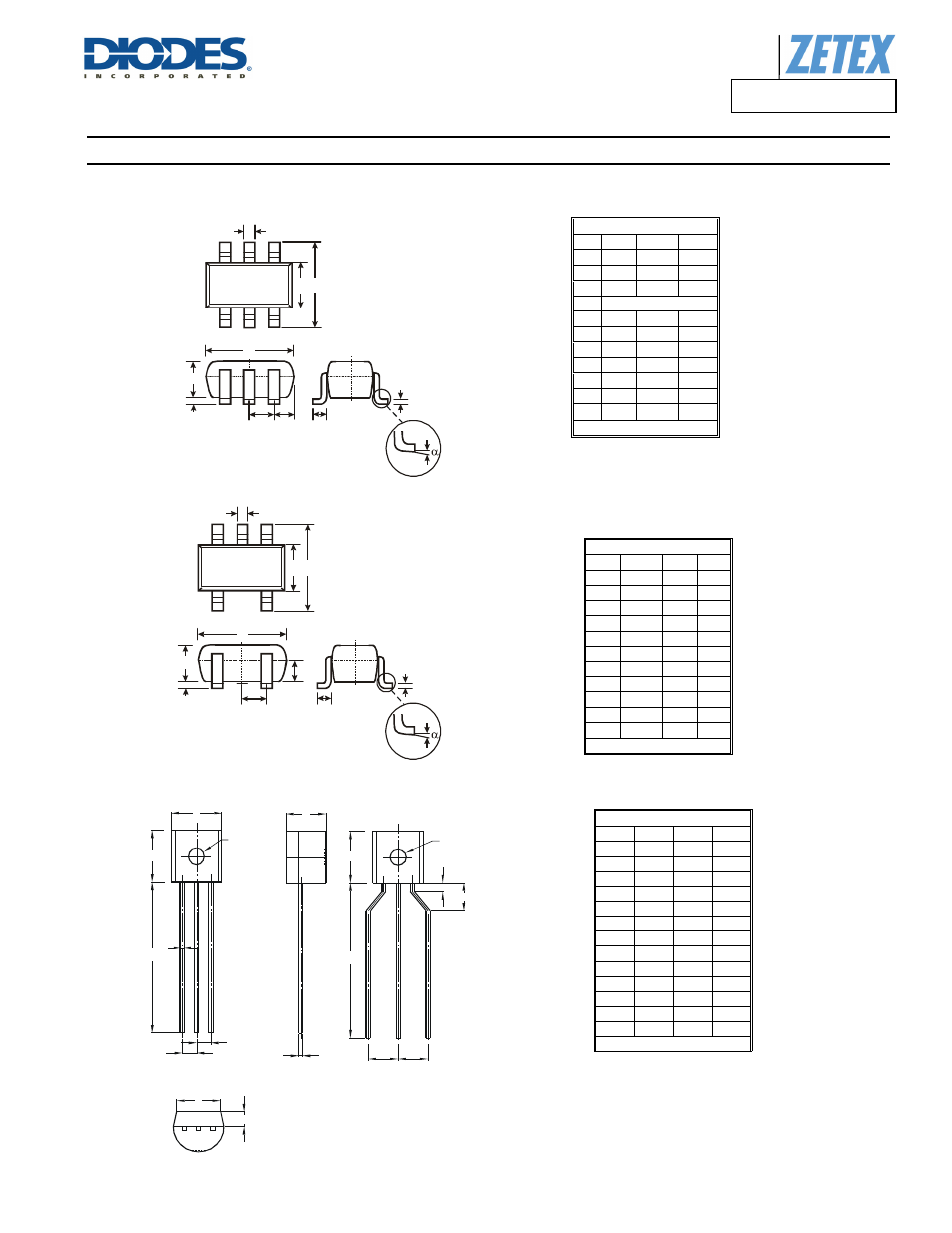

Package Outline Dimensions
(cont.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
SOT363
SOT25
T092
SOT363
Dim Min Max Typ
A 0.10 0.30 0.25
B 1.15 1.35 1.30
C 2.00 2.20 2.10
D 0.65 Typ
F 0.40 0.45 0.425
H 1.80 2.20 2.15
J 0 0.10 0.05
K 0.90 1.00 1.00
L 0.25 0.40 0.30
M 0.10 0.22 0.11
 0° 8° -
All Dimensions in mm
SOT25
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D   0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
 0° 8° 
All Dimensions in mm
TO92
Dim Min Max Typ
A 3.45 3.66 —
B 4.27 4.78 —
b — — 0.38
c — — 0.38
D — — 3.87
E 4.32 4.83 —
e — — 1.27
e2 2.40 2.90 —
L 12.98 15.00 —
L1 12.80 15.00 —
L2
0.80 - —
L3 2.00 3.00 —
N 1.22 1.37 —
All Dimensions in mm
A
M
J
L D
B C
H
K
F
A
M
J
L D
B C
H
K
N
EJECTION
MARK
LOOSE PRODUCT
TAPED PRODUCT
EJECTION
MARK
B
E
b
e
e
D
N
c
e2 e2
L1
E
L2
L3
A
L
