TB0640M - TB3500M
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol
Value
Unit
Non-Repetitive Peak Impulse Current @10/1000us
I
pp
50 A
Non-Repetitive Peak On-State Current @8.3ms (one-half cycle)
I
TSM
30 A
Typical Positive Temperature Coefficient for Breakdown Voltage
ΔVBR/ΔT
j
0.1 %/°C
Thermal Characteristics
Characteristic Symbol
Value
Unit
Thermal Resistance, Junction to Lead
R
θJL
20 °C/W
Thermal Resistance, Junction to Ambient
R
θJA
100 °C/W
Junction Temperature Range
T
J
-40 to +150
°C
Storage Temperature Range
T
STG
-55 to +150
°C

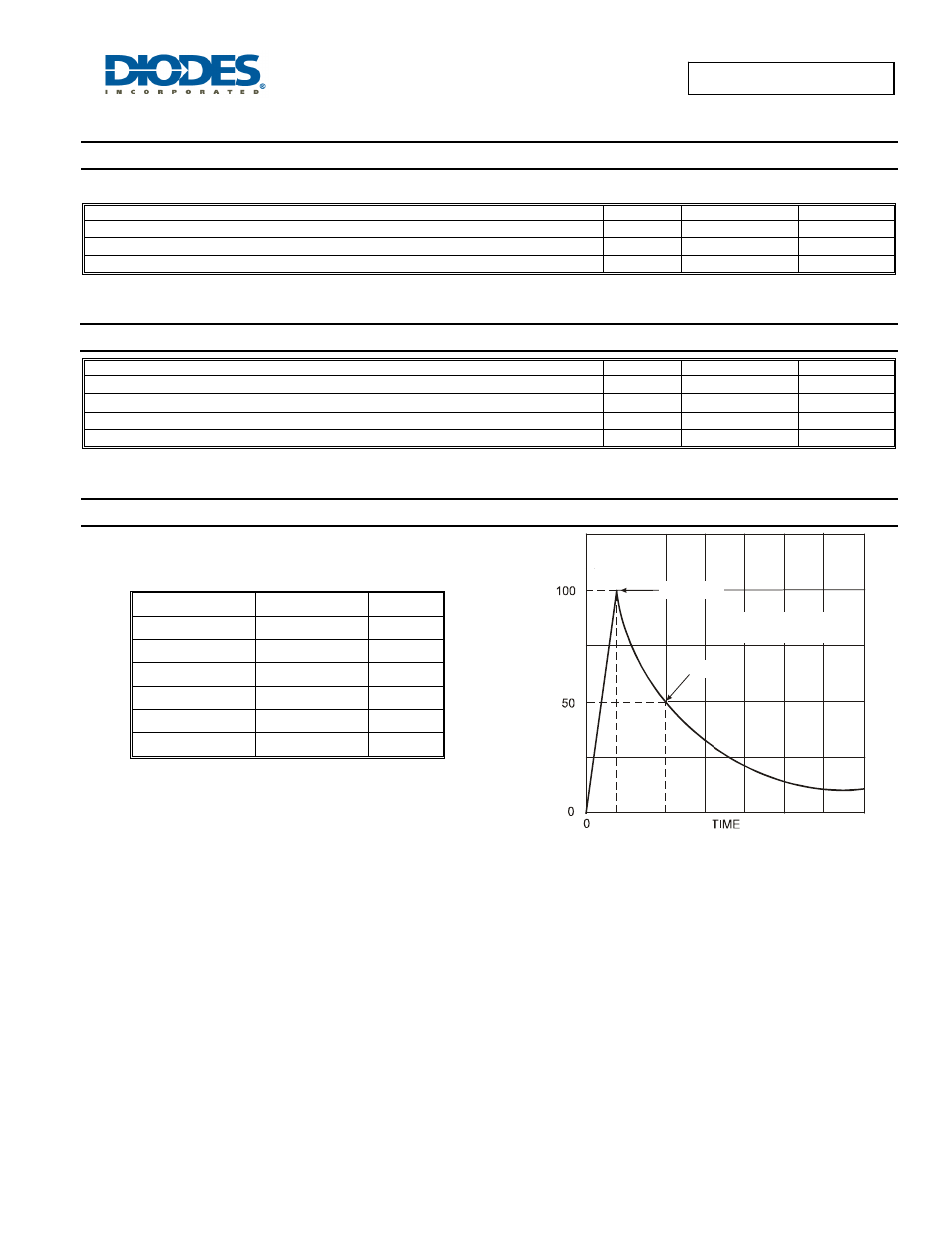

Maximum Rated Surge Waveform
Waveform
Standard
Ipp (A)
2/10 us
GR-1089-CORE
300
8/20 us
IEC 61000-4-5
250
10/160 us
FCC Part 68
150
10/700 us
ITU-T, K.20/K.21
100
10/560 us
FCC Part 68
75
10/1000 us
GR-1089-CORE
50
I
,
PEAK
PUL
SE CU
RRENT (
%
)
PP
Peak Value (I
)
pp
Half Value
t = rise time to peak value
t = decay time to half value
r
p
t
r
t
p
