ZXMS6004DG
.zetex.com
© Diodes Incorporated, 2008
www.diodes.com

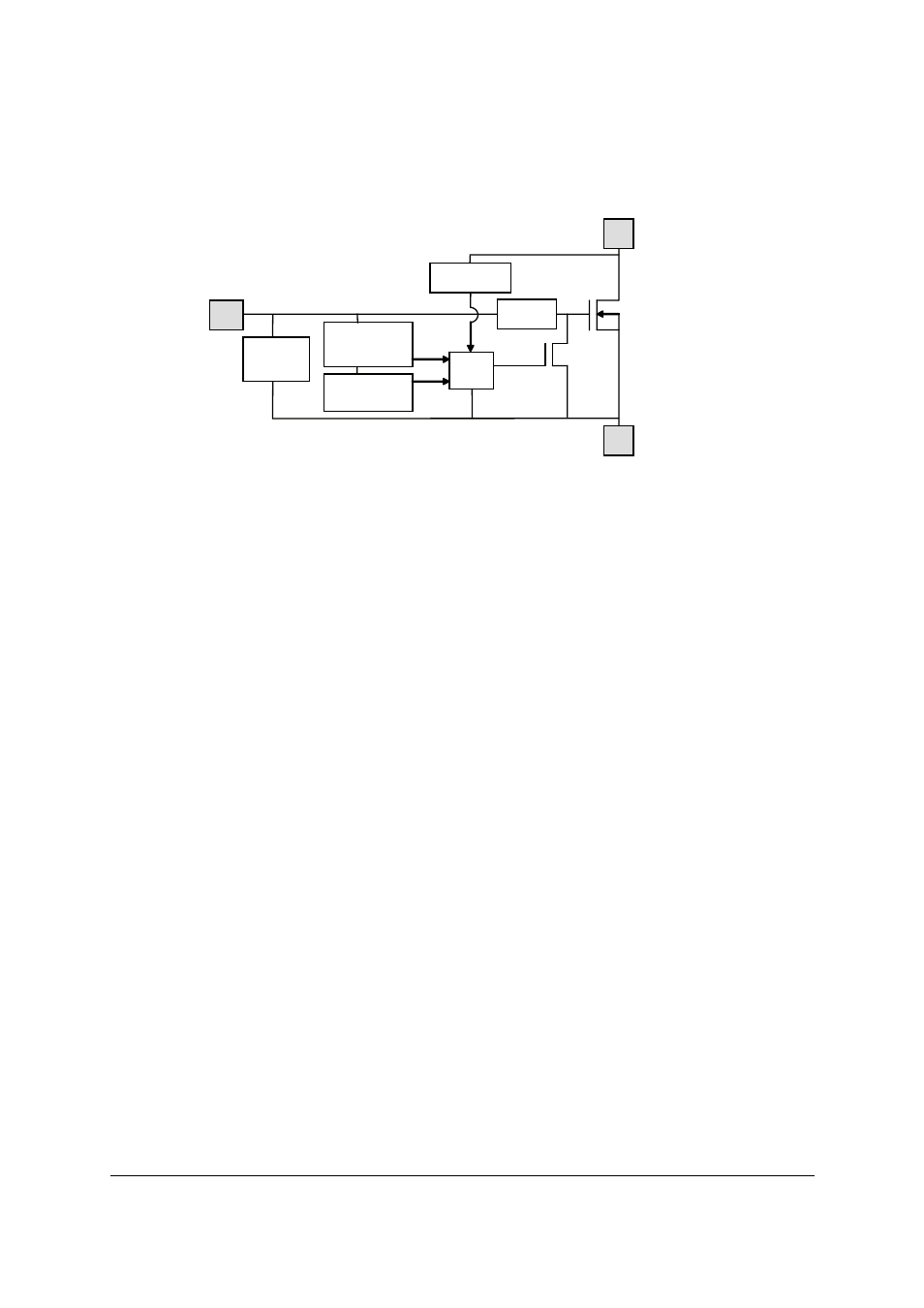

Functional block diagram
Application information
•
Especially suited for loads with a high in-rush current such as lamps and motors.
•
All types of resistive, inductive and capacitive loads in switching applications.
•
μC compatible power switch for 12V and 24V DC applications.
•
Automotive rated.
•
Replaces electromechanical relays and discrete circuits.
•
Linear Mode capability - the current-limiting protection circuitry is designed to de-activate at
low V
DS
to minimise on state power dissipation. The maximum DC operating current is
therefore determined by the thermal capability of the package/board combination, rather than
by the protection circuitry. This does not compromise the product’s ability to self-protect at low
V
DS
.
Over-voltage
Protection
ESD
Protection
Over-temperature
Protection
Over-current
Protection
Logic
dV/dt
Limitation
IN
D
S
