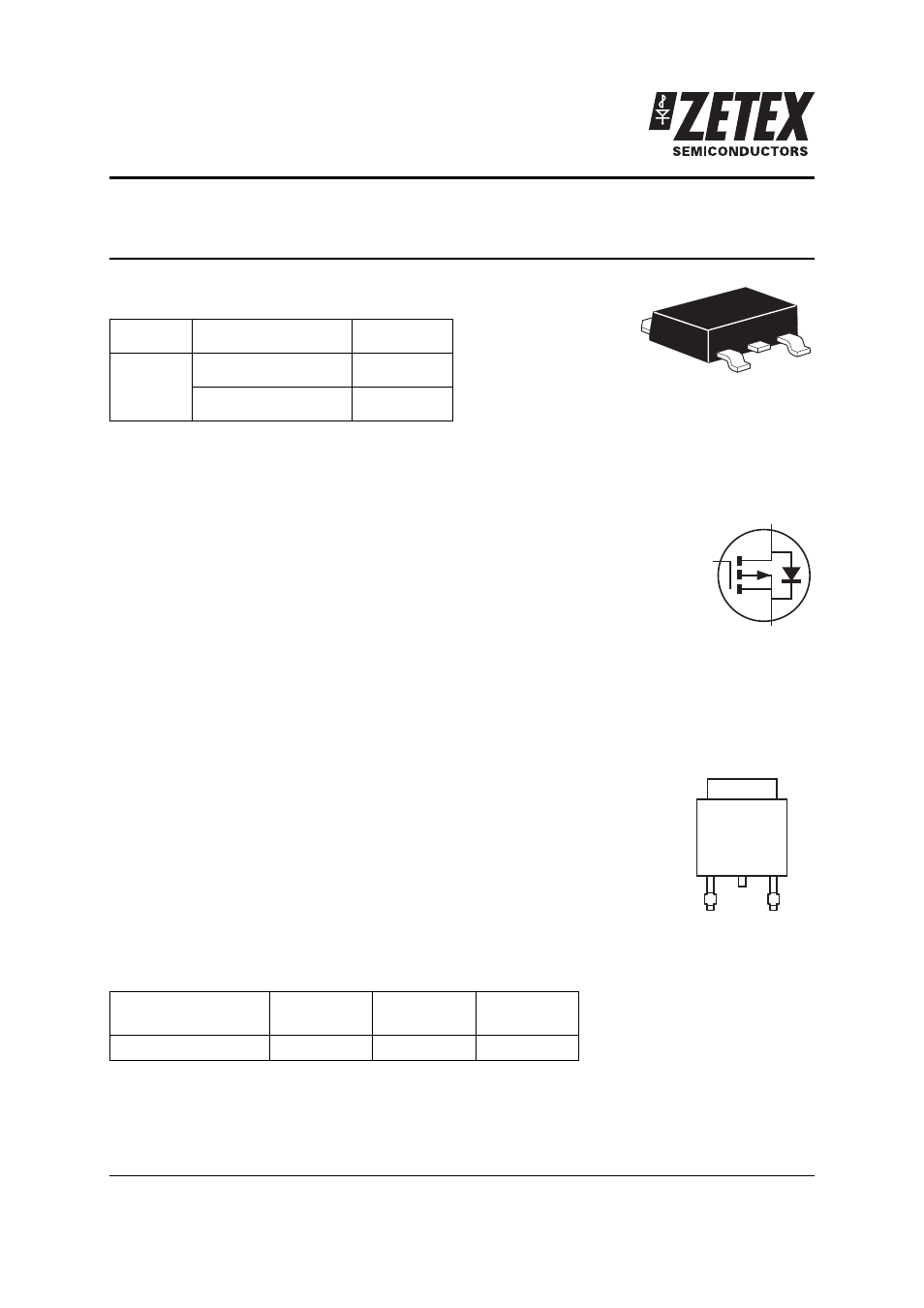

ZXMP10A18K
100V DPAK P-channel enhancement mode MOSFET
Summary
Description
This new generation trench MOSFET from Zetex features a unique
structure combining the benefits of low on-resistance and fast
switching, making it ideal for high efficiency power management
applications.
Features
•
Low on-resistance
•
Fast switching speed
•
Low threshold
•
Low gate drive
•
DPAK package
Applications
•
DC-DC converters
•
Power management functions
•
Disconnect switches
•
Motor control
Ordering information
Device marking
ZXMP
10A18
V
(BR)DSS
R
DS(on)
(
⍀)
I
D
(A)
-100
0.150 @ V
GS
= -10V
-5.9
0.190 @ V
GS
= -6V
-5.2
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXMP10A18KTC
13
16
2,500
D
S
G
G
S
D
D
Pinout - top view
