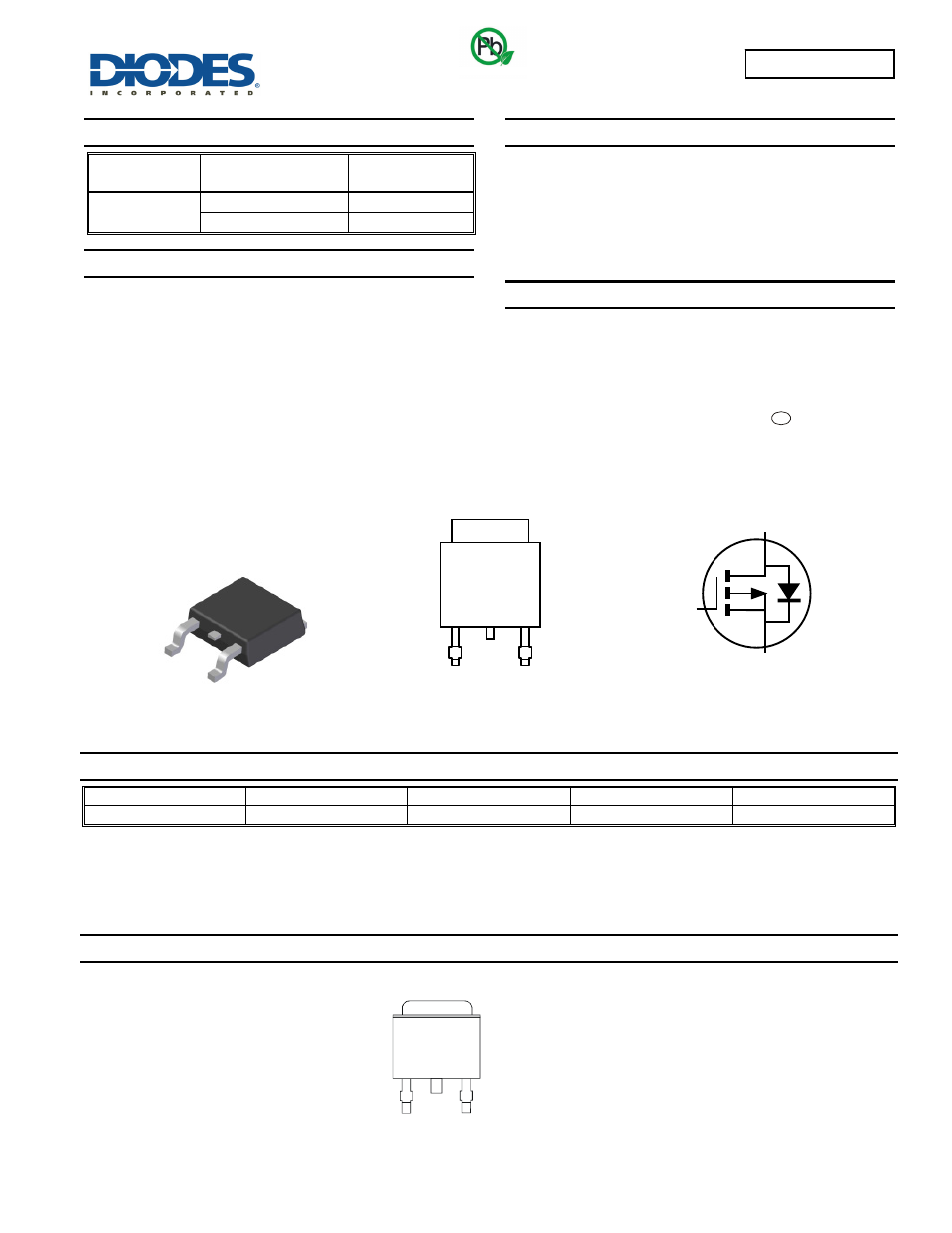

ZXMP10A17K

100V P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(on)

I

D

T

A

= +25

°C

-100V

350m

Ω @ V

GS

= -10V

-3.9A

450m

Ω @ V

GS

= -6.0V

-3.4A

Description and Applications

This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
• Motor

Control

• DC-DC

Converters

Power Management Functions

Uninterrupted Power Supply

Features and Benefits

Fast Switching Speed

Low Gate Drive

Low Input Capacitance

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

TO252

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 0.33 grams (approximate)





















Ordering Information

(Note 4)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

ZXMP10A17KTC See

below

13

16

2,500

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information











Top View

Pin Out – Top View

Equivalent Circuit

G

S

D

D

TO252

ZXMP

10A17

YYWW

ZXMP = Product Type Marking Code, Line 1
10A17 = Product Type Marking Code, Line 2
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)



Green

e3

D

S

G
