ZXMP6A16K
Issue 3 - June 2007 7 www.zetex.com
© Zetex Semiconductors plc 2007

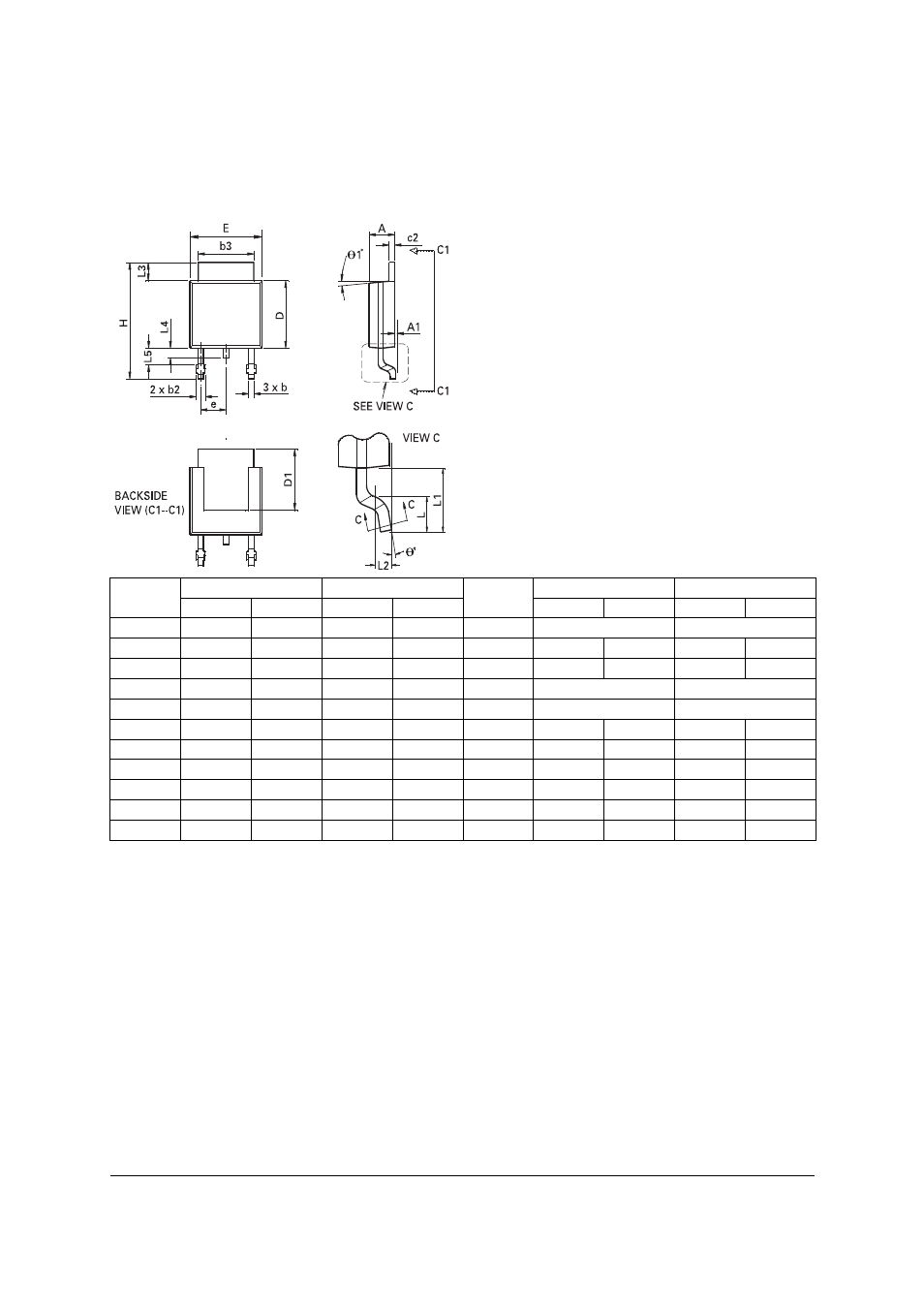

Package outline - DPAK
Note: Controlling dimensions are in inches. Approximate dimensions are provided in millimeters
DIM Inches Millimeters DIM Inches Millimeters
Min Max Min Max Min Max Min Max
A 0.086 0.094 2.18 2.39 e 0.090 BSC 2.29 BSC
A1 - 0.005 - 0.127 H 0.370 0.410 9.40 10.41
b 0.020 0.035 0.508 0.89 L 0.055 0.070 1.40 1.78
b2 0.030 0.045 0.762 1.14 L1 0.108 REF 2.74 REF
b3 0.205 0.215 5.21 5.46 L2 0.020 BSC 0.508 BSC
c 0.018 0.024 0.457 0.61 L3 0.035 0.065 0.89 1.65
c2 0.018 0.023 0.457 0.584 L4 0.025 0.040 0.635 1.016
D 0.213 0.245 5.41 6.22 L5 0.045 0.060 1.14 1.52
D1 0.205 - 5.21 -
⍜1°
0° 10° 0° 10°
E 0.250 0.265 6.35 6.73 ⍜° 0° 15° 0° 15°
E1 0.170 - 4.32 - - - - - -
