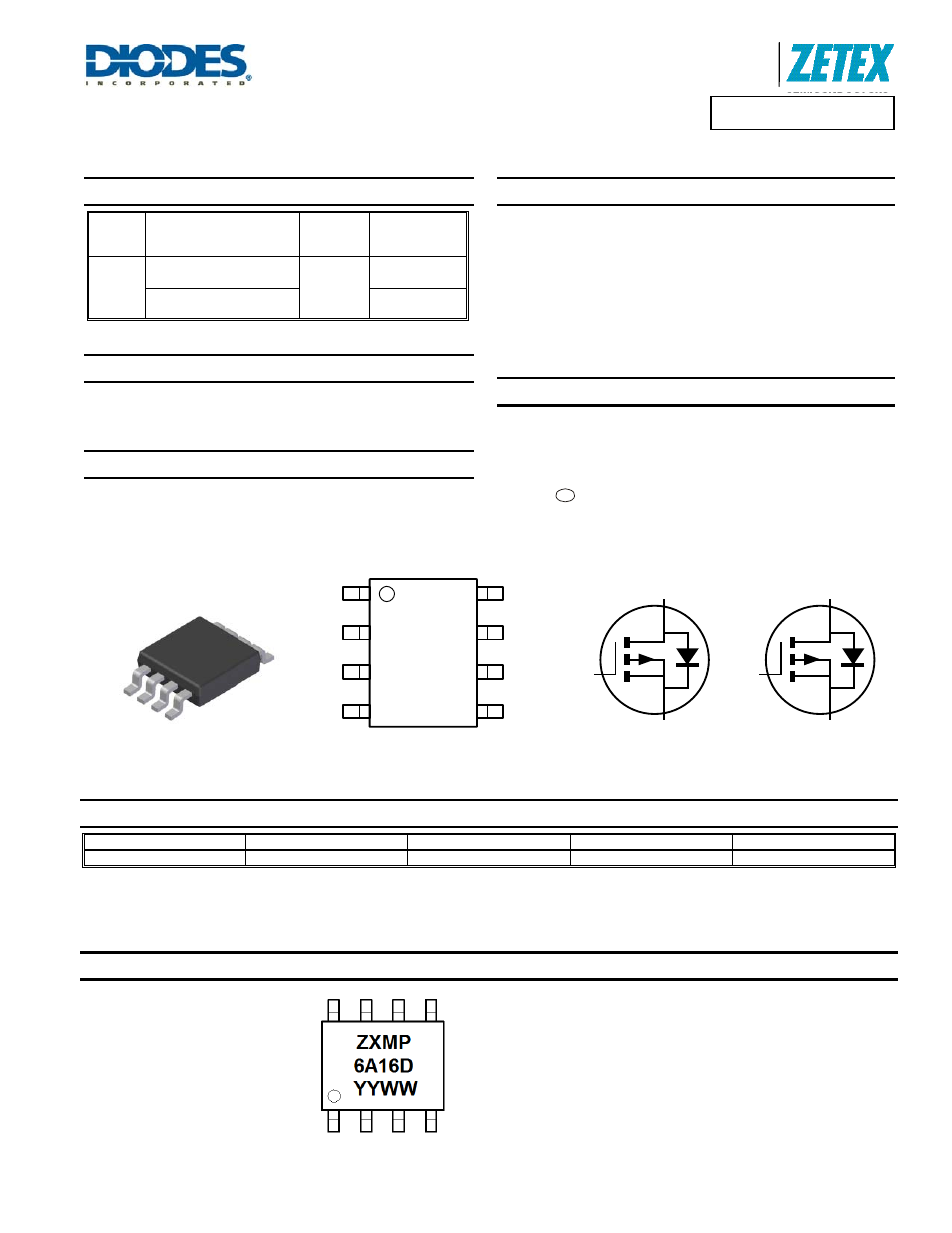

ZXMP6A16DN8
Document number: DS33586 Rev. 4 - 2
1 of 8
July 2012
© Diodes Incorporated
ZXMP6A16DN8
A Product Line of
Diodes Incorporated
DUAL P-CHANNEL 60V ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
Max Package
I
D
T
A
= +25°C
(Notes 4 & 6)
-60V
85m
Ω @ V
GS
= -10V
SO-8
-3.9A
125m
Ω @ V
GS
= -4.5V
-3.2A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
• DC-DC
Converters
•
Power Management Functions
• Disconnect
Switches
• Motor
Control
Features
• Low
On-Resistance
•
Fast Switching Speed
• Low
Threshold
•
Low Gate Drive
•
Low Profile SOIC Package
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SO-8
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish; Solderable per MIL-STD-202, Method
208
•
Weight: 0.074 grams (approximate)
Ordering Information
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMP6A16DN8TA ZXMP6A16D
7
12
500
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Marking Information
e3
Equivalent Circuit
Top View
SO-8
Top View
D1
S1
G1
S2
G2
D1
D2
D2
D2
S2
G2
D1
S1
G1
ZXMP6A16D = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 11 = 2011)
WW = Week (01 - 53)
