ZXM61P02F
Document Number DS33478 Rev. 3 - 2
2 of 7
October 2013
© Diodes Incorporated
ZXM61P02F
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic Symbol
Value
Units
Drain-Source Voltage
V
DSS
-20 V
Gate-Source Voltage
V
GS
±12 V
Continuous Drain Current
V
GS
= 4.5V
T
A
= +25°C (Note 6)
T
A
= +70°C (Note 6)
I
D
-0.9
-0.7
A
Pulsed Drain Current (Note 7)
I
DM
-4.9 A
Continuous Source Current (Body Diode) (Note 6)
I
S
-0.9 A
Pulsed Source Current (Body Diode) (Note 7)
I
SM
-4.9 A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic Symbol
Value
Unit
Power Dissipation (Note 5)
Linear Derating Factor
P
D
625
5
mW
mW/°C
Power Dissipation (Note 6)
Linear Derating Factor
P
D
806
6.4
mW
mW/°C
Thermal Resistance, Junction to Ambient (Note 5)
R
θJA
200 °C/W
Thermal Resistance, Junction to Ambient (Note 6)
R
θJA
155 °C/W
Operating and Storage Temperature Range
T
J,
T
STG
-55 to +150
°C
Notes:
5. For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions
6. For a device surface mounted on FR4 PCB measured at t ≤ 5 secs.
7. Repetitive rating 25mm x 25mm FR4 PCB, D=0.05 pulse width=10μs - pulse current limited by maximum junction temperature.

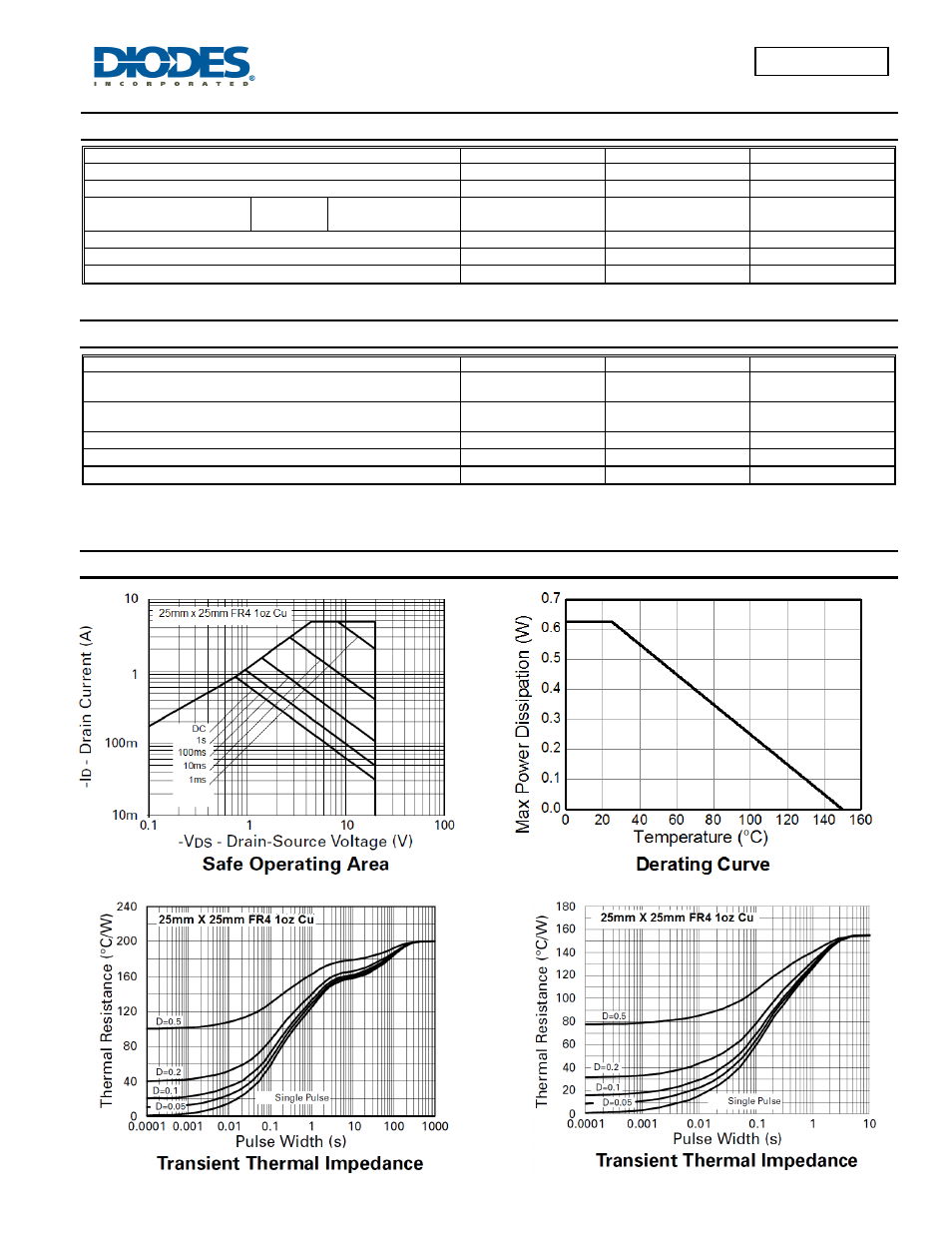

Thermal Characteristics
