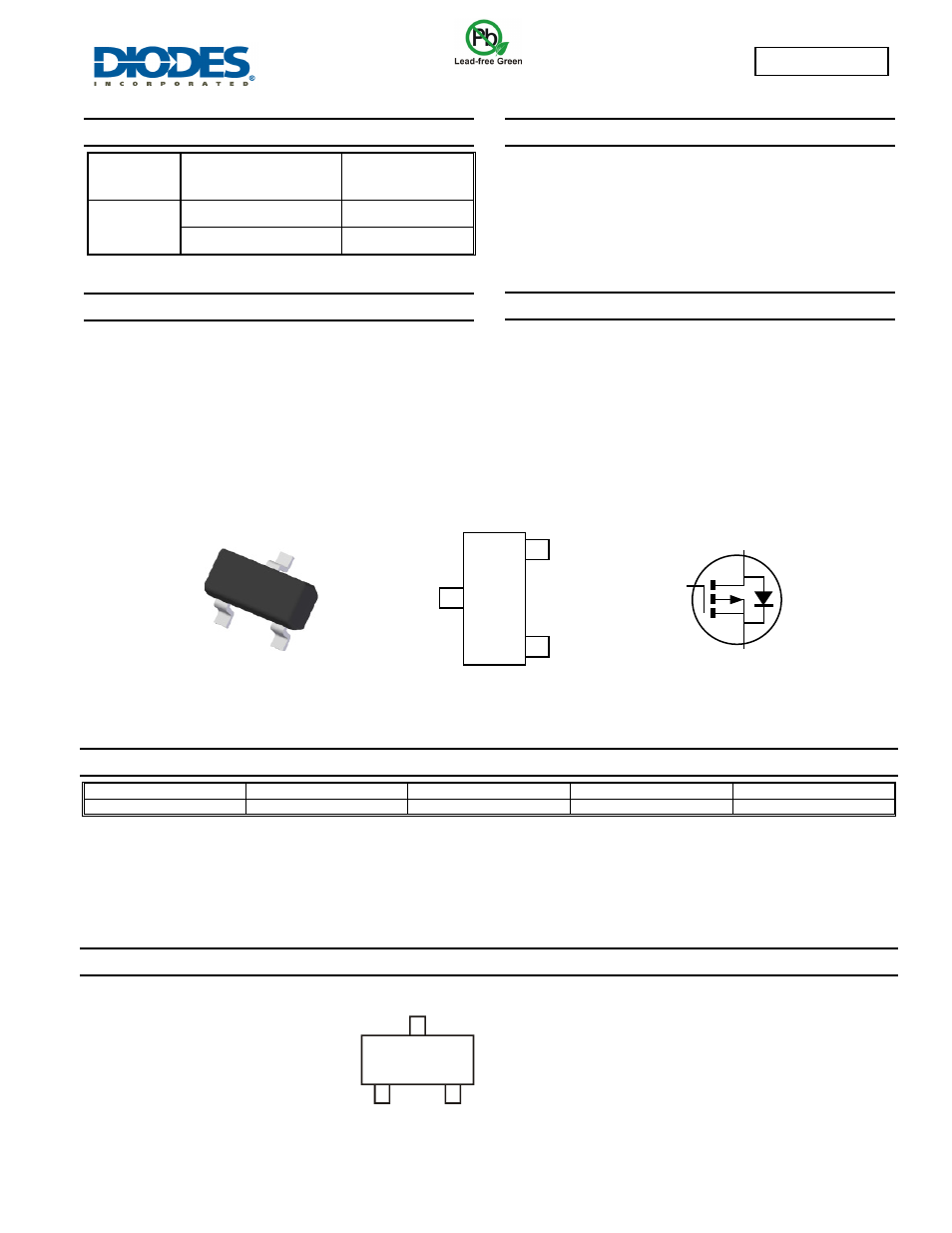

ZXM61P02F
Document Number DS33478 Rev. 3 - 2
1 of 7
www.diodes.com
October 2013
© Diodes Incorporated
ZXM61P02F
20V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25 C
-20V
600mΩ @ V
GS
= -4.5V -0.92A
900mΩ @ V
GS
= -2.7V -0.75A
Description and Applications
This MOSFET utilizes a unique structure that combines the benefits
of low on-resistance with fast switching speed, making it ideal for
high-efficiency power management applications.

DC - DC converters
 Power management functions
 Disconnect switches
 Motor control
Features and Benefits
 Fast switching speed
 Low on-resistance
 Low threshold
 Low gate drive
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT23
 Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
 Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXM61P02FTA P02 7 8 3000 Units
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Top View
Equivalent Circuit
P02 = Product Type Marking Code
D
S
G
Top View
Pin Out
D
S
G
SOT23
P02
