ZXMN20B28K
200V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25
°C
200V
750m Ω @ V
GS = 10V 2.3A
780m Ω @ V
GS = 5V 2.3A
Description and Applications
This MOSFET features low on-resistance, fast switching and a high
avalanche withstand capability, making it ideal for high efficiency
power management applications.
• SLIC line drivers for VoIP applications
• Transformer driving switch
• Power management functions
• Motor control
• Uninterrupted power supply
Features and Benefits
• 100% Unclamped Inductive Switch (UIS) test in production
• High avalanche energy pulse withstand capability
• Low gate drive voltage (Logic level capable)
• Low input capacitance
• Low on-resistance
• Fast switching speed
• “Green” Component and RoHS compliant (Note 1)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TO252-3L
• Case Material: Molded Plastic “Green” Molding Compound,
UL Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Diagram
• Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.33 grams (approximate)
Ordering Information
(Note 1)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXMN20B28KTC See below 13 16 2,500
Note: 1. Diodes, Inc. defines “Green” products as those which are Eu RoHS compliant and contain no halogens or antimony compounds; further information
about Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information

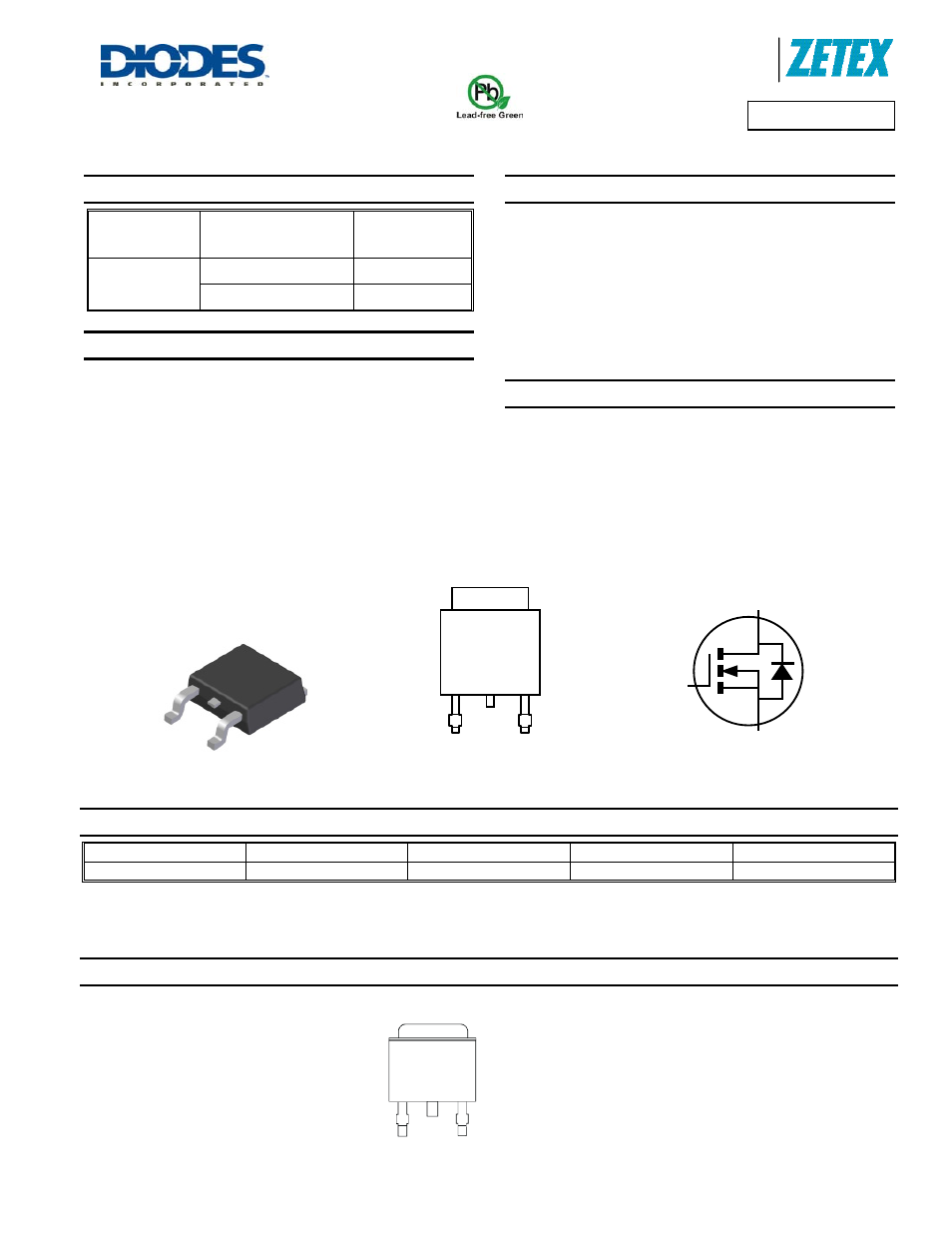

Top View Pin Out – Top View Equivalent Circuit
D
S
G
G S
D
D
TO252-3L
ZXMN
20B28
YYWW
ZXMN = Product Type Marking Code, Line 1
20B28 = Product Type Marking Code, Line 2
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)
