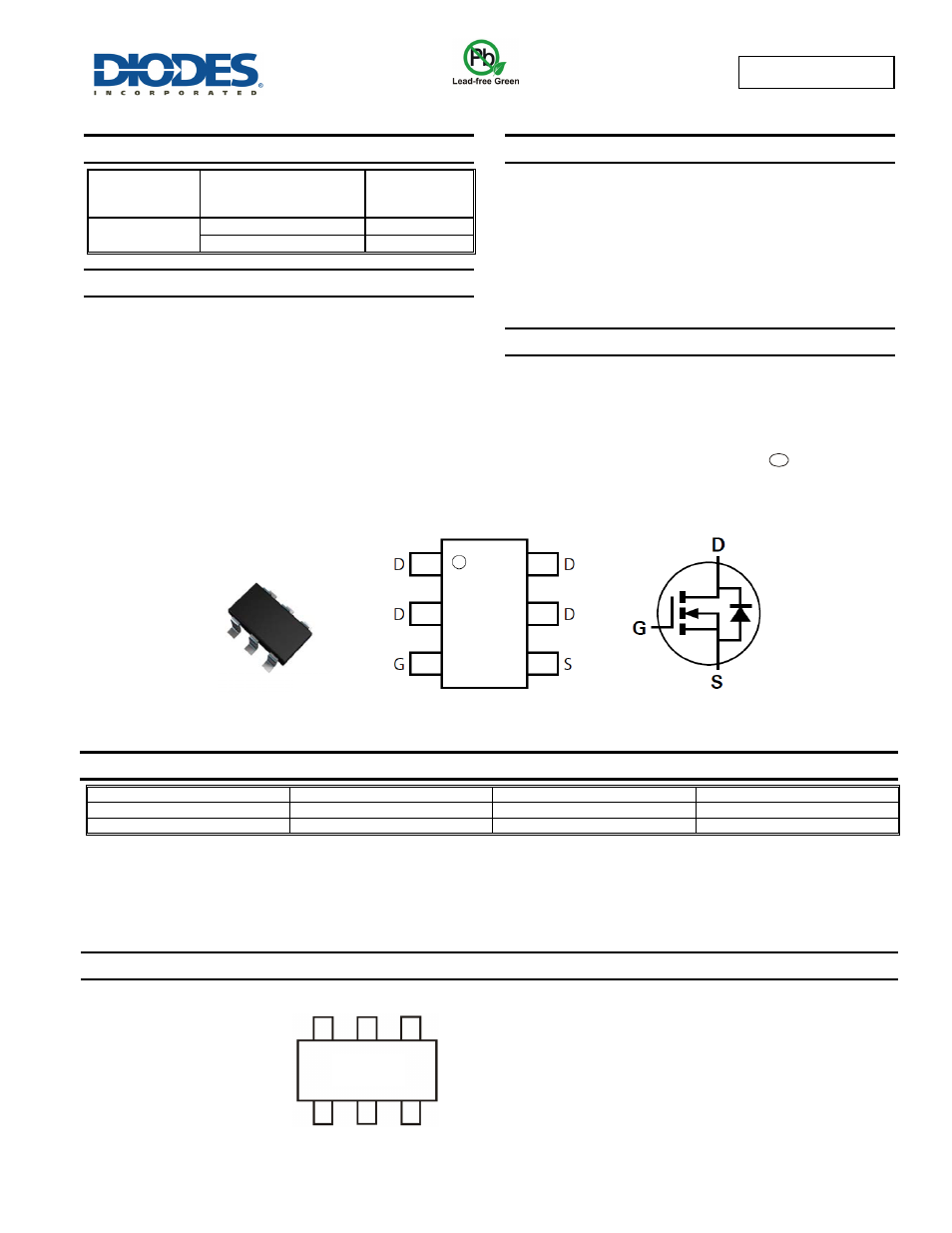

ZXMN10B08E6

Datasheet Number: DS33570 Rev. 2 – 2

1 of 7

www.diodes.com

May 2014

© Diodes Incorporated

ZXMN10B08E6

NEW PROD

UC

T


100V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

Max R

DS(on)

Max I

D

T

A

= +25

°C

(Note 6)

100V

230m

Ω @ V

GS

= 10V

1.9A

300m

Ω @ V

GS

= 4.5V

1.68A

Description and Applications

This new generation TRENCH MOSFETs from Diodes utilizes a
unique structure that combines the benefits of low on-resistance with
fast switching speed. This makes them ideal for high efficiency, low
voltage, power management applications.

DC - DC Converters

Power Management Functions

• Disconnect

Switches

• Motor

Control

Features and Benefits

• Low

On-Resistance

Fast Switching Speed

• Low

Threshold

Low Gate Drive

• SOT26

Package

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

SOT26

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin annealed over Copper leadframe
Solderable per MIL-STD-202, Method 208

Weight: 0.015 grams (approximate)















Ordering Information

(Note 4)

Part Number

Reel Size (inch)

Tape Width (mm)

Quantity Per Reel

ZXMN10B08E6TA

7

8

3,000

ZXMN10B08E6TC

13

8

10,000

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.


Marking Information












Top View

Pinout Top-view

10B8 = Product Type Marking Code

Device Symbol

SOT26

10B8

e3
