ZVN3310F
Document Number DS31980 Rev. 4 - 2
4 of 5
www.diodes.com
October 2009
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVN3310F

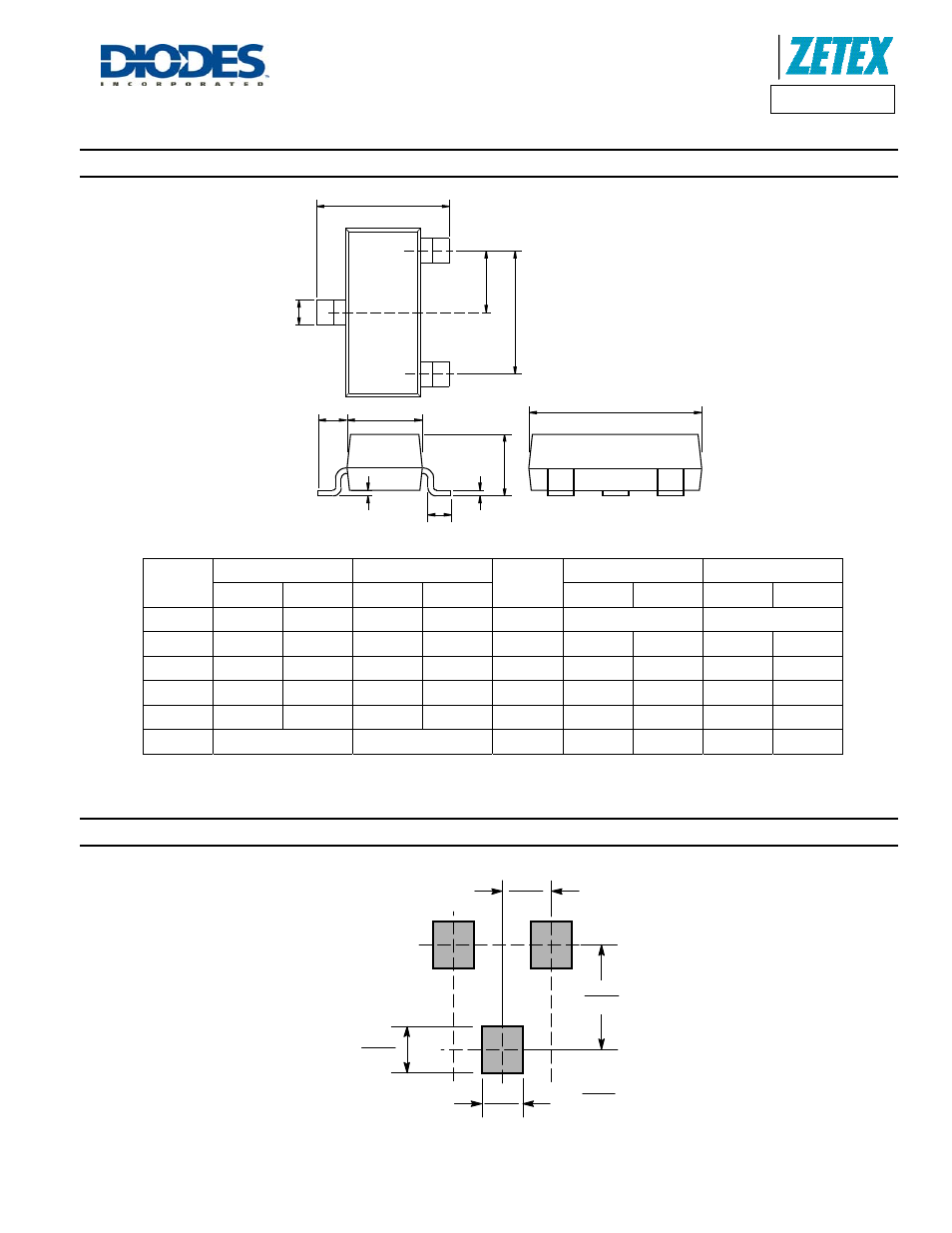

Package Outline Dimensions
E
e
L
e1
D
A
c
E1 L1
A1
b
3 leads
Dim. Millimeters Inches Dim. Millimeters Inches
Min. Max. Min. Max. Min. Max. Min. Max.
A - 1.12 - 0.044 e1 1.90 NOM 0.075 NOM
A1 0.01 0.10 0.0004 0.004 E 2.10 2.64 0.083 0.104
b 0.30 0.50 0.012 0.020 E1 1.20 1.40 0.047 0.055
c 0.085 0.20 0.003 0.008 L 0.25 0.60 0.0098 0.0236
D 2.80 3.04 0.110 0.120 L1 0.45 0.62 0.018 0.024
e 0.95 NOM 0.037 NOM - - - - -
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
Suggested Pad Layout
mm
inches
0.8
0.031
0.9
0.035
0.95
0.037
2.0
0.079
