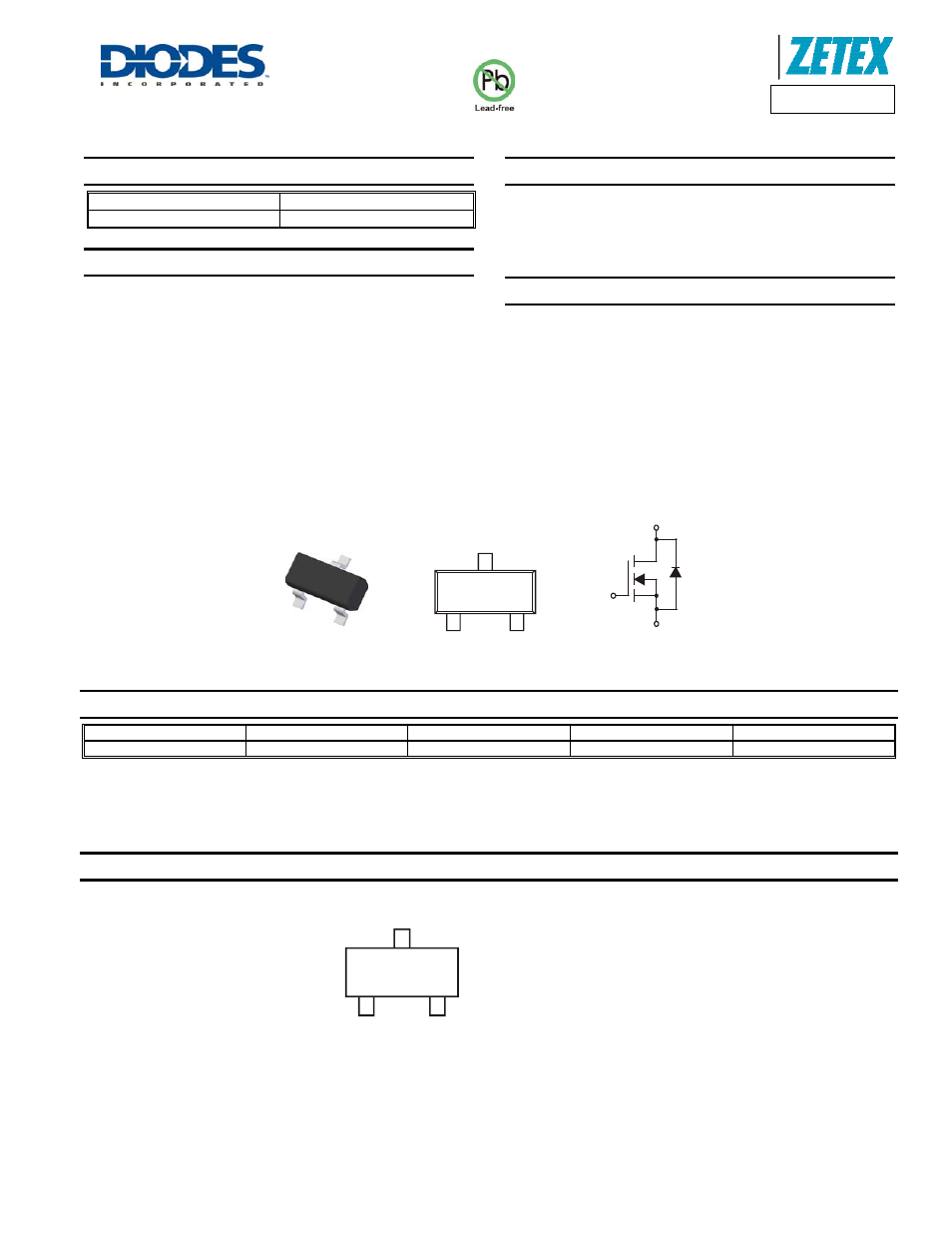

ZVN3310F
100V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
DS
(V)
100
R
DS(ON)
(
Ω)
10
Description and Applications
This MOSFET utilises a structure that combines low input
capacitance with relatively low on-resistance and has an intrinsically
higher pulse current handling capability in linear mode than a
comparable trench technology structure. This MOSFET is suitable for
general purpose applications.
•
General purpose 100V FET
• Power
management
• Disconnect
switches
• Telecoms
•
Complementary Type – ZVP3310F
Features and Benefits
•
High pulse current handling in linear mode
•
Low input capacitance
•
Fast switching speed
•
Lead Free By Design/RoHS Compliant (Note 1)
Mechanical Data
• Case:
SOT-23
•
Case Material: UL Flammability Classification Rating 94V-0
•
Moisture sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 2)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZVN3310FTA MF
7
8
3000
Notes:
1. No purposefully added lead.
2. For packaging details, go to our website at
Marking Information
MF = Product Type Marking Code
TOP VIEW
D
G
S
TOP VIEW
Pin Out Configuration
MF
SOT-23
Equivalent Circuit
Source
Gate
Drain
