ZXMN6A11G
Document number: DS33556 Rev. 5 - 2
1 of 8
October 2010
© Diodes Incorporated
ZXMN6A11G
A Product Line of
Diodes Incorporated
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25°C
60V
120m
Ω @ V
GS
= 10V
4.4A
180m
Ω @ V
GS
= 4.5V
3.5A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
• DC-DC
converters
•
Power management functions
• Disconnect
switches
• Motor
Control
•
Uninterrupted power supply
Features and Benefits
•
Fast switching speed
•
Low gate drive
•
Low input capacitance
•
“Green” component and RoHS compliant (Note 1)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT223
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See diagram below
•
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Note 1)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN6A11GTA See
below
7
12
1,000
Notes:
1. Diodes, Inc. defines “Green” products as those which are RoHS compliant and contain no halogens or antimony compounds; further information
about Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information
6A11
ZXMN
ZXMN = Product Type Marking Code, Line 1
6A11 = Product Type Marking Code, Line 2
D
S
G

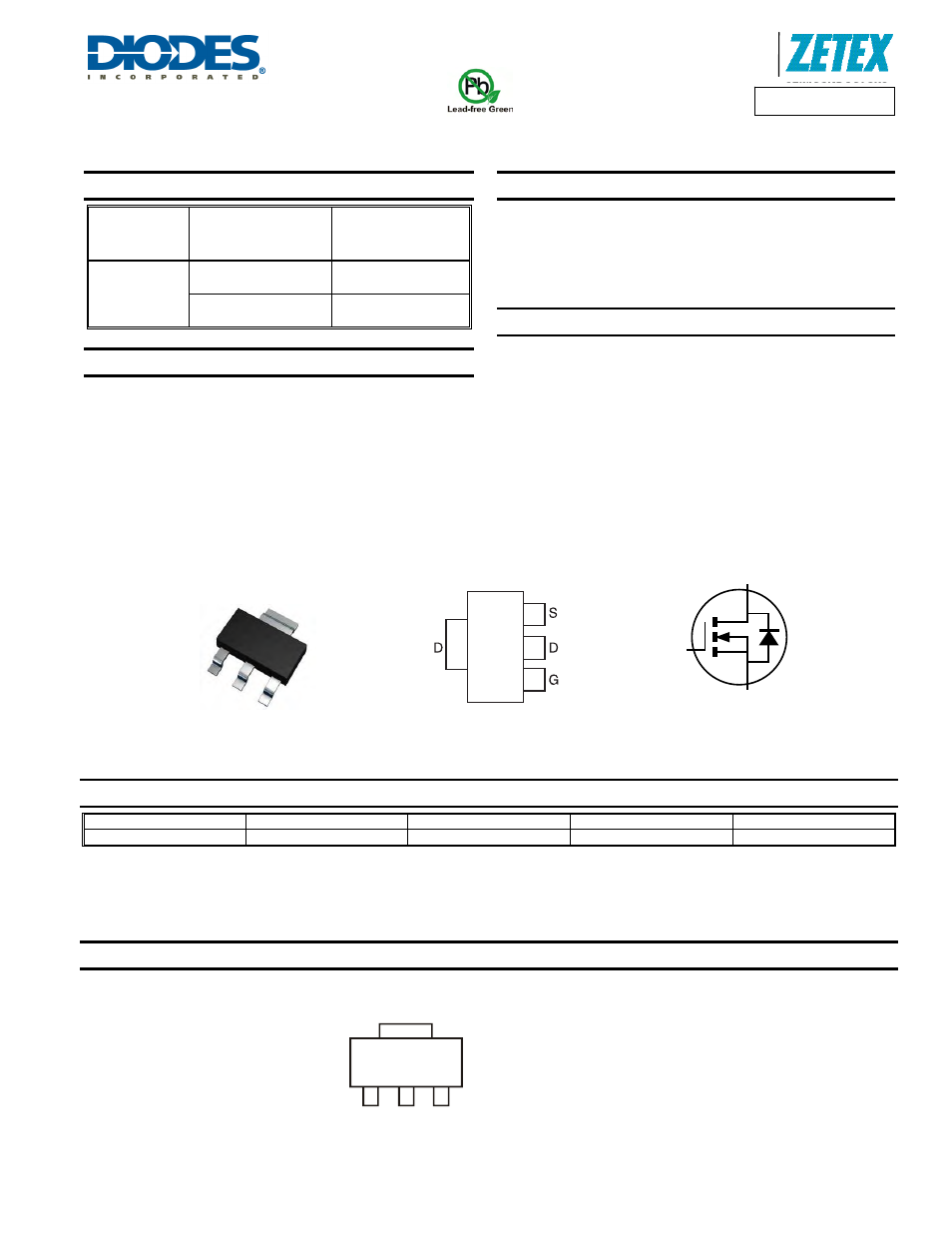

Equivalent Circuit
Pin Out - Top
Top View
SOT223
