ZXMN6A09K
Document Number DS33569 Rev. 6 - 2
1 of 8
March 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXMN6A09K
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
Max R
DS(on)
Max I
D
T
A
= 25
°C
(Note 3)
60V
40m
Ω @ V
GS
= 10V
7.7A
60m
Ω @ V
GS
= 4.5V
6.3A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
•
DC-DC converters
•
Power management functions
•
Disconnect switches
•
Motor control
Features and Benefits
•
Low on-resistance
•
Fast switching speed
•
Low gate drive
•
Lead-Free Finish; RoHS compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: TO252
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish. Solderable per MIL-STD-202,
Method 208
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 1 & 2)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN6A09KTC ZXMN6A09
13
16
2,500
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Marking Information

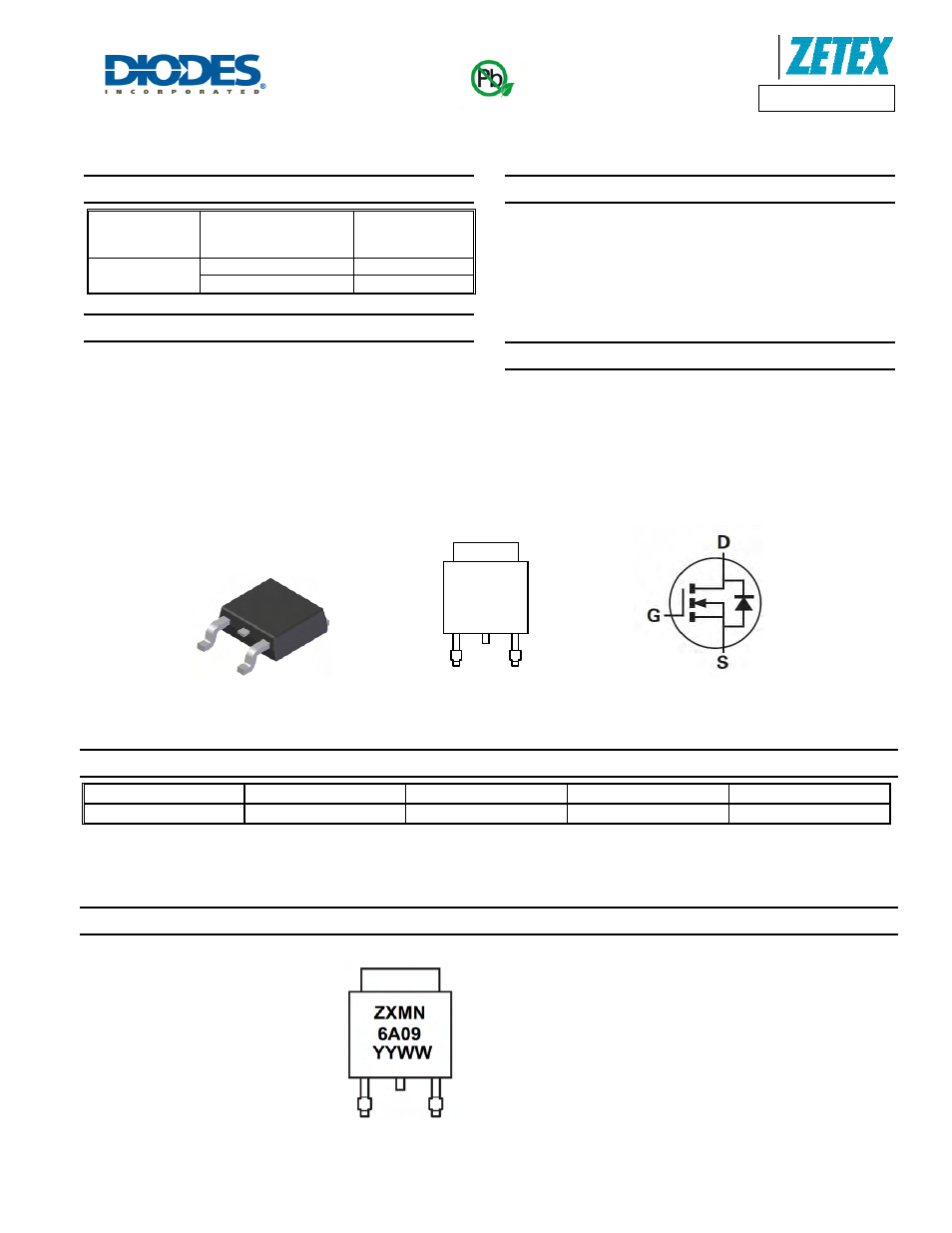

Top View
Pin Out -Top View
Equivalent Circuit
G
S
D
D
TO252
Green
ZXMN6A09 = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 10 = 2010)
WW = Week (01 - 53)
