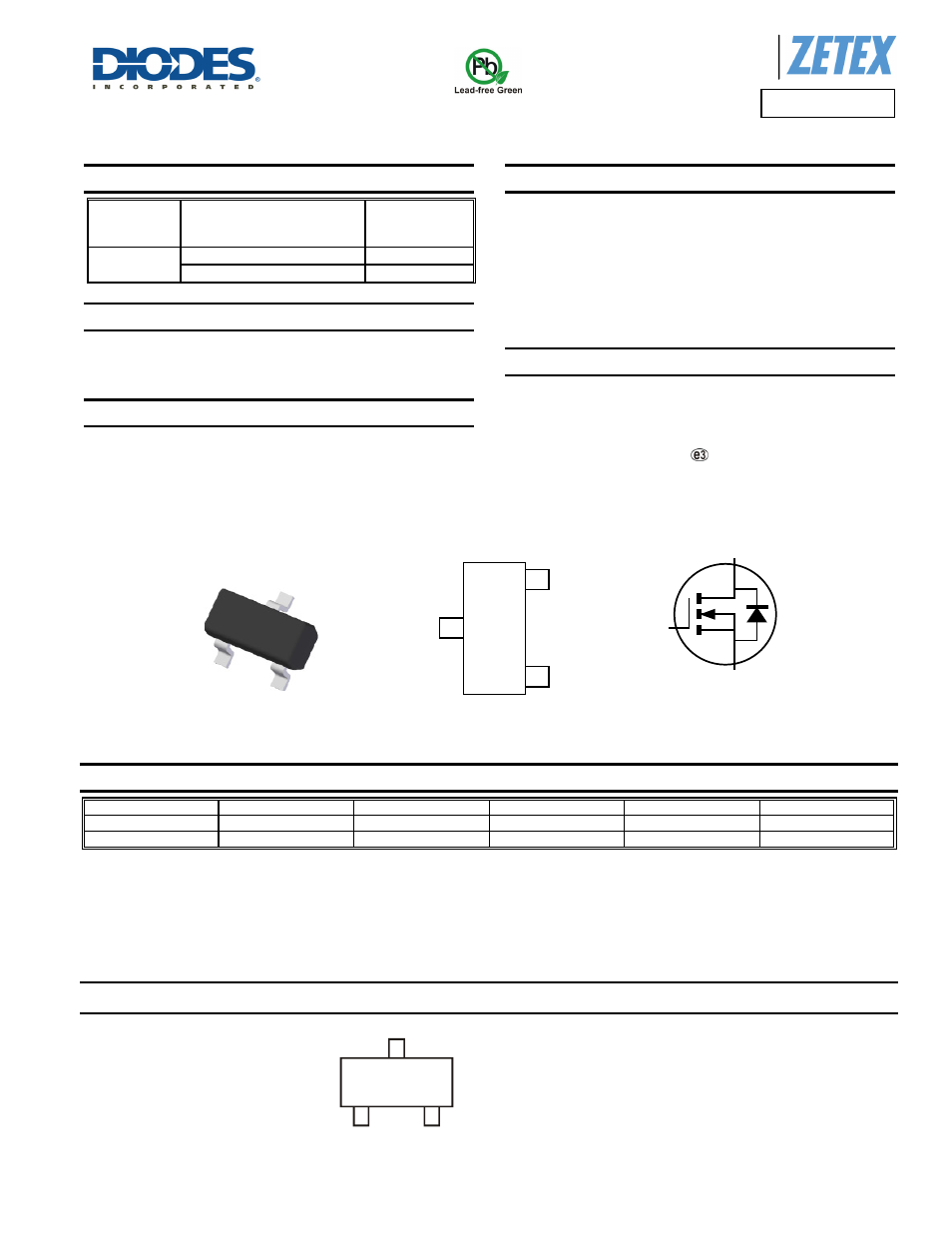

ZXMN6A07F
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
Max R
DS(on)
Max I
D
T
A
= 25
°C
(Note 7)
60V
250m
Ω @ V
GS
= 10V
1.4A
350m
Ω @ V
GS
= 4.5V
1.2A
Description
This MOSFET utilizes a unique structure that combines the benefits
of low on-resistance with fast switching speed, making it ideal for
high-efficiency power management applications.
Applications
•
DC - DC converters
•
Power management functions
•
Relay and solenoid driving
•
Motor control
Features
• Low
on-resistance
•
Fast switching speed
•
Low threshold
•
Low gate charge
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound,
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.008 grams (approximate)
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN6A07FTA
AEC-Q101 7N6
7
8
3000
ZXMN6A07FQTA
Automotive 7N6
7
8
3000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at
Marking Information
Top View
Equivalent Circuit
7N6 = Product Type Marking Code
Top View
Pin Out
D
S
G
SOT23
D
S
G
7N6
YM
