N-CHANNEL ENHANCEMENT
MODE VERTICAL DMOS FET
ISSUE 1 – FEBRUARY 95
FEATURES
* 60 Volt V
DS
* R
DS(on)
= 0.33
Ω
* Repetitive Avalanche Rating
APPLICATIONS
* Solenoids / relay drivers for automotive
* Stepper Motor Drivers
* DC-DC convertors
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Drain-Source Voltage V
DS
60 V
Continuous Drain Current at T
amb
=25°C I
D
1.1 A
Practical Continuous Drain Current at
T
amb
=25°C
I
DP
1.3 A
Pulsed Drain Current I
DM
15 A
Gate Source Voltage V
GS
±
20 V
Power Dissipation at T
amb
=25°C P
tot
850 mW
Practical Power Dissipation at T
amb
=25°C* P
totp
1.13 W
Avalanche Current-Repetitive I
AR
1 A
Avalanche Energy-Repetitive E
AR
25 mJ
Operating and Storage Temperature Range T
j
:T
stg
-55 to +150 °C
*The power which can be dissipated assuming the device is mounted in a typical manner on a P.C.B.
with copper equal to 1 inch square minimum

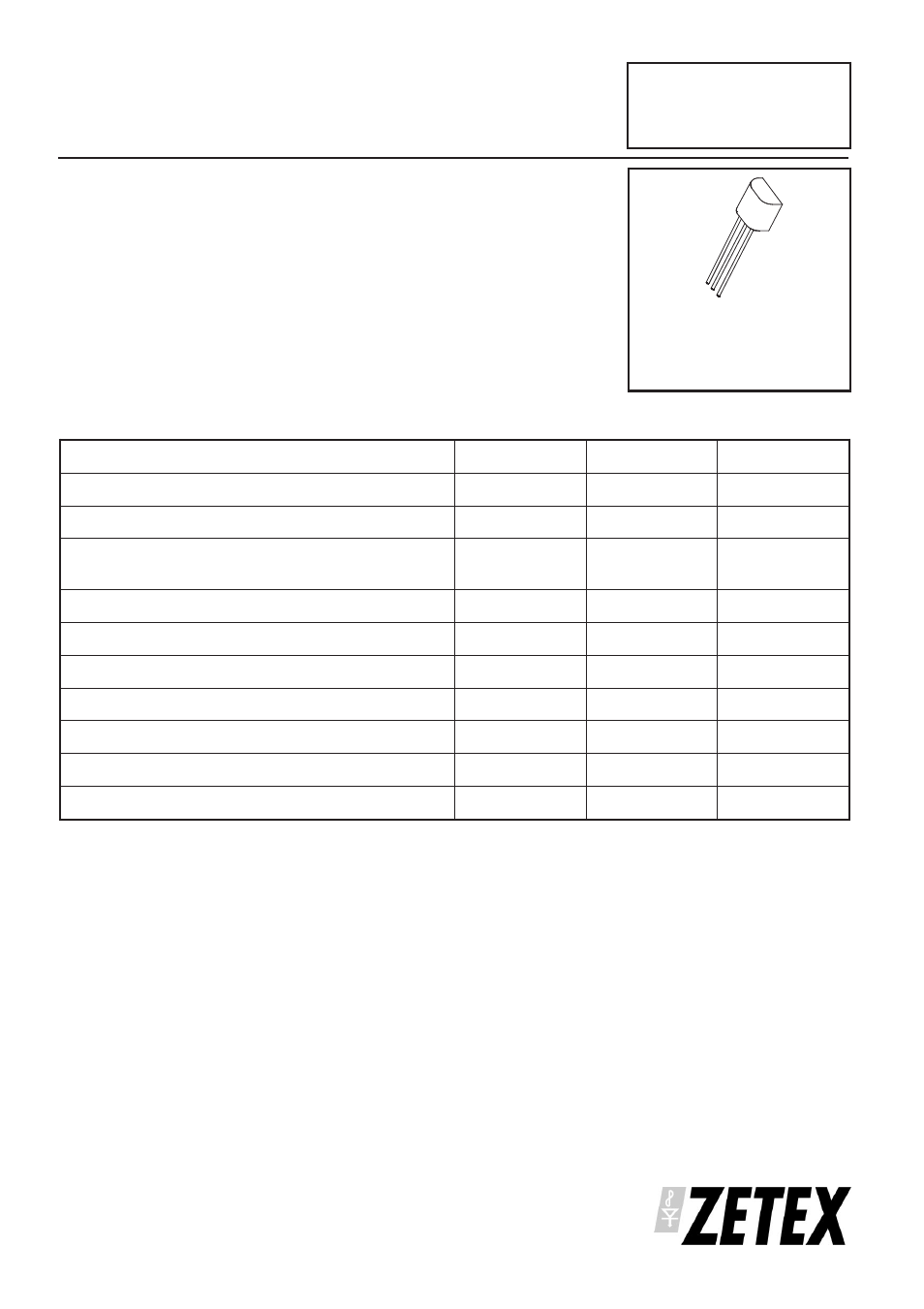

E-Line
TO92 Compatible
ZVN4306AV
D
G
S
