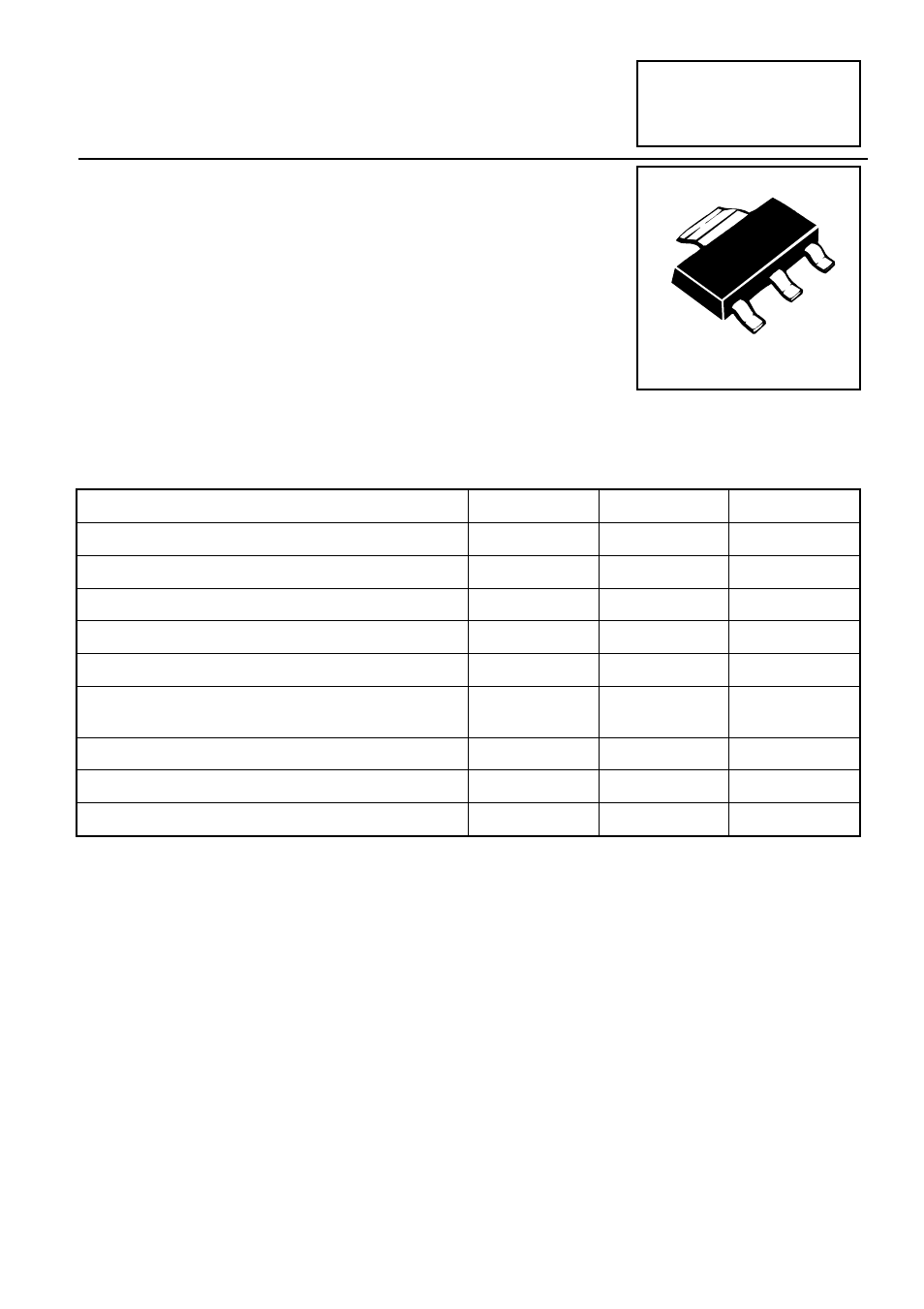

Diodes ZVN4206GV - Manual

SOT223 N-CHANNEL ENHANCEMENT
MODE VERTICAL DMOS FET
ISSUE 3 - APRIL 1998
FEATURES
* 60 Volt V
DS
* R
DS(on)
= 1
Ω
* Repetitive avalanche rating
* No transient protection required
* Characterised for 5V logic drive
APPLICATIONS
* Automotive relay drivers
* Stepper motor driver
PARTMARKING DETAIL - ZVN4206V
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Drain-Source Voltage V
DS
60 V
Continuous Drain Current at T
amb
= 25°C I
D
1 A
Pulsed Drain Current I
DM
8 A
Gate-Source Voltage V
GS
±
20 V
Power Dissipation at T
amb
= 25°C P
tot
2 W
Continuous Body Diode Current at T
amb
=
25°C
I
SD
600 mA
Avalanche Current - Repetitive I
AR
600 mA
Avalanche Energy - Repetitive E
AR
15 mJ
Operating and Storage Temperature Range T
j
:T
stg
-55 to +150 °C
ZVN4206GV
D
D
S
G
