ZXMN3A14F
30V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
Max R
DS(on)
Max I
D
T
A
= 25
°C
(Note 4)
30V
65m
Ω @ V
GS
= 10V 3.2A
95m
Ω @ V
GS = 4.5V 2.6A
Description and Applications
This MOSFET utilizes a unique structure that combines the benefits
of low on-resistance with fast switching speed, making it ideal for
high-efficiency power management applications.
•
DC - DC converters
•
Power management functions
•
Disconnect switches
•
Motor control
Features and Benefits
• Low
on-resistance
• Fast switching speed
• Low gate charge
•
Low threshold
•
Totally Lead-Free & Fully RoHS compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe
Solderable per MIL-STD-202, Method 208
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXMN3A14FTA 314 7 8 3000 Units
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. For more packaging details, go to our website at http://www.diodes.com.

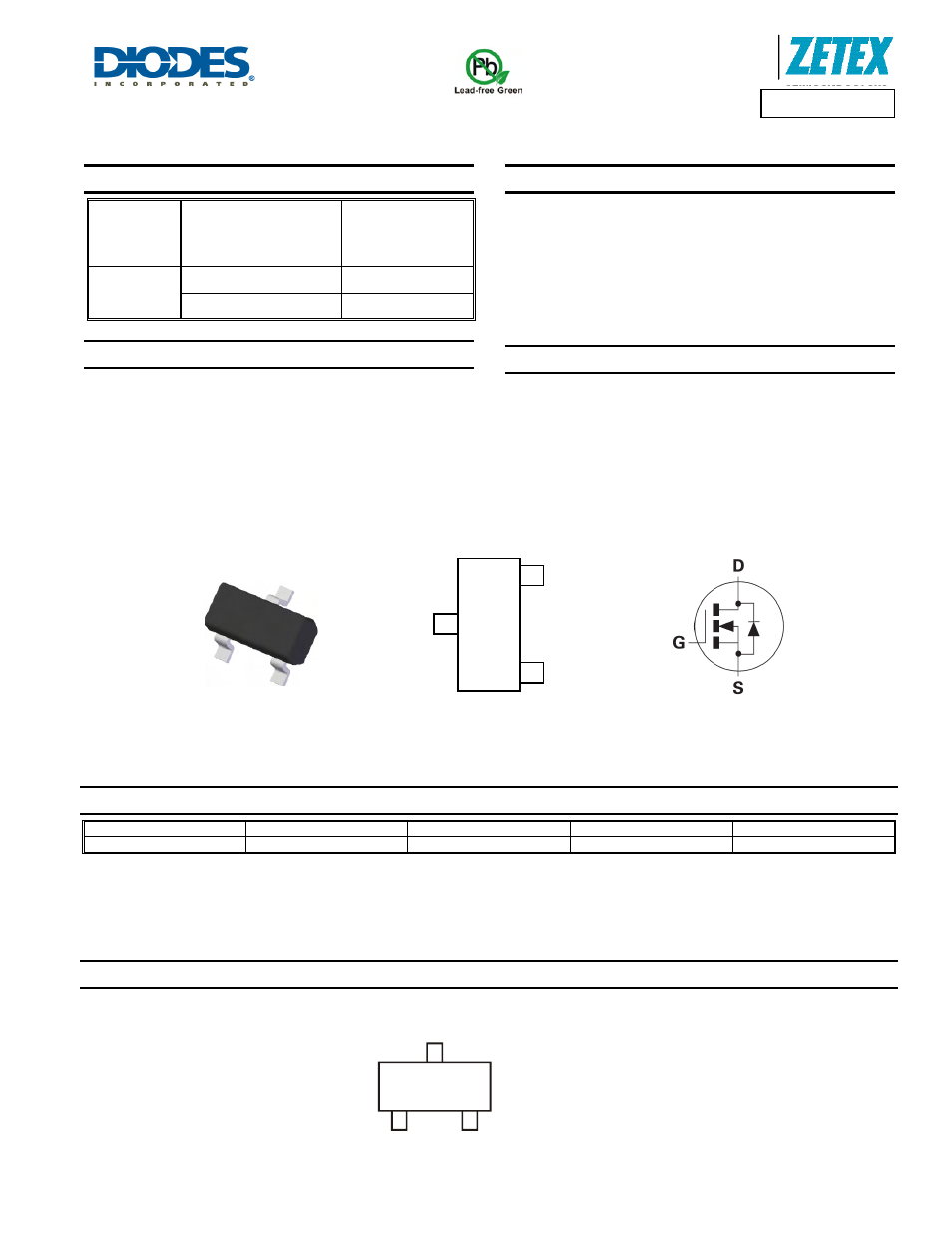

Marking Information
Top View
Equivalent Circuit
314 = Product Type Marking Code
Top View
Pin Out
D
S
G
SOT23
314
