Zetex plc
Fields New Road
Chadderton
Oldham, OL9 8NP
United Kingdom
Telephone (44) 161 622 4422
Fax: (44) 161 622 4420 Zetex GmbH
Streitfeldstraße 19
D-81673 München
Germany
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
Zetex Inc
700 Veterans Memorial Hwy
Hauppauge, NY11788
USA
Telephone: (631) 360 2222
Fax: (631) 360 8222
Zetex (Asia) Ltd
3701-04 Metroplaza, Tower 1
Hing Fong Road
Kwai Fong
Hong Kong
Telephone: (852) 26100 611
Fax: (852) 24250 494
These offices are supported by agents and distributors in major countries world-wide.
This publication is issued to provide outline information only which (unless agreed by the Company in writing) may not be used, applied or reproduced
for any purpose or form part of any order or contract or be regarded as a representation relating to the products or services concerned. The Company
reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service.
For the latest product information, log on to www.zetex.com
© Zetex plc 2002
ZXMN3A06DN8
ISSUE 2 - OCTOBER 2002
7
DIM
INCHES MILLIMETRES
MIN MAX MIN MAX
A 0.053 0.069 1.35 1.75
A1 0.004 0.010 0.10 0.25
D 0.189 0.197 4.80 5.00
H 0.228 0.244 5.80 6.20
E 0.150 0.157 3.80 4.00
L 0.016 0.050 0.40 1.27
e 0.050 BSC 1.27 BSC
b 0.013 0.020 0.33 0.51
c 0.008 0.010 0.19 0.25
⍜ 0 Њ 8 Њ 0 Њ 8 Њ
h 0.010 0.020 0.25 0.50

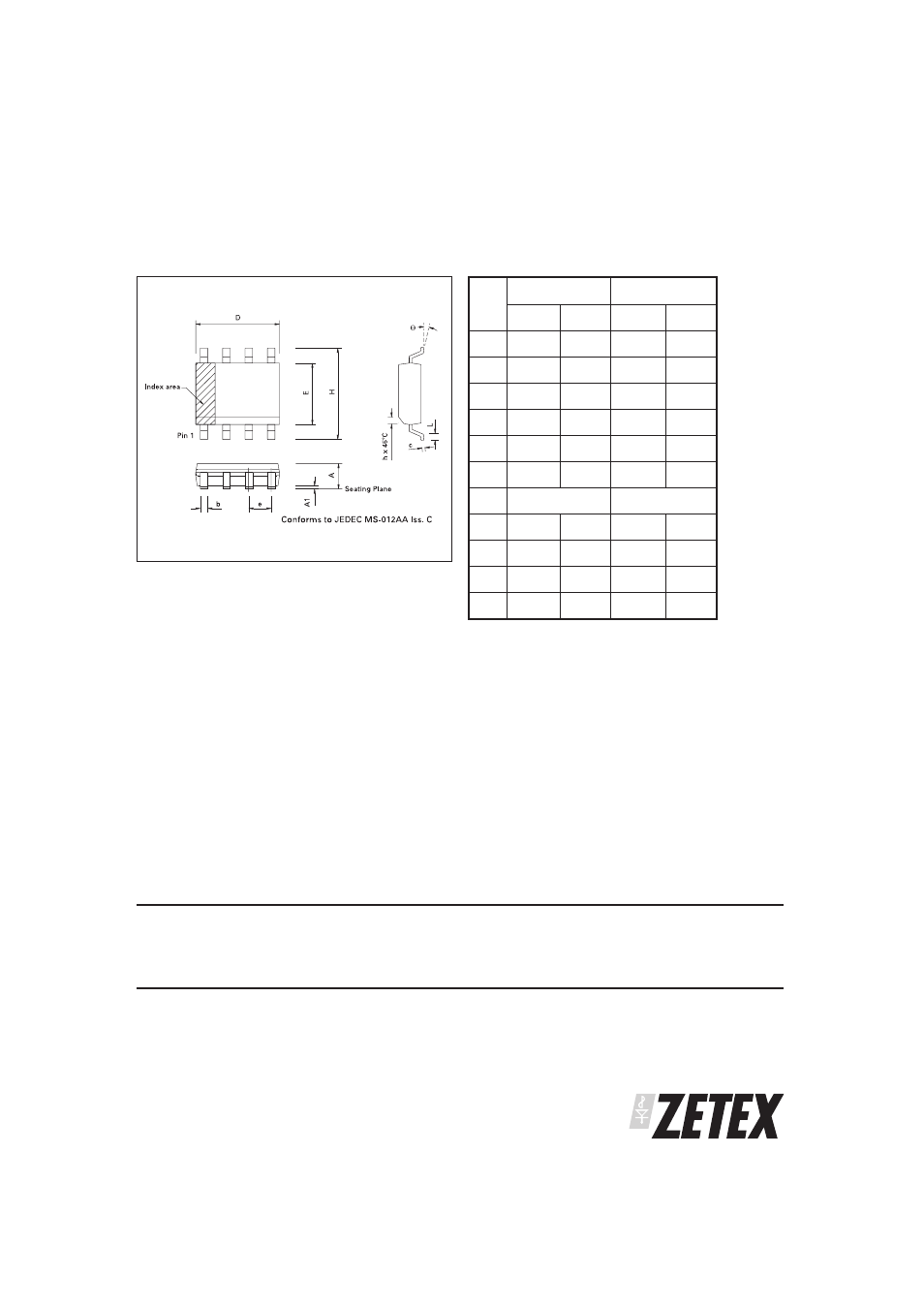

PACKAGE DIMENSIONS PACKAGE OUTLINE
CONTROLLING DIMENSIONS ARE IN INCHES
APPROX IN MILLIMETRES
