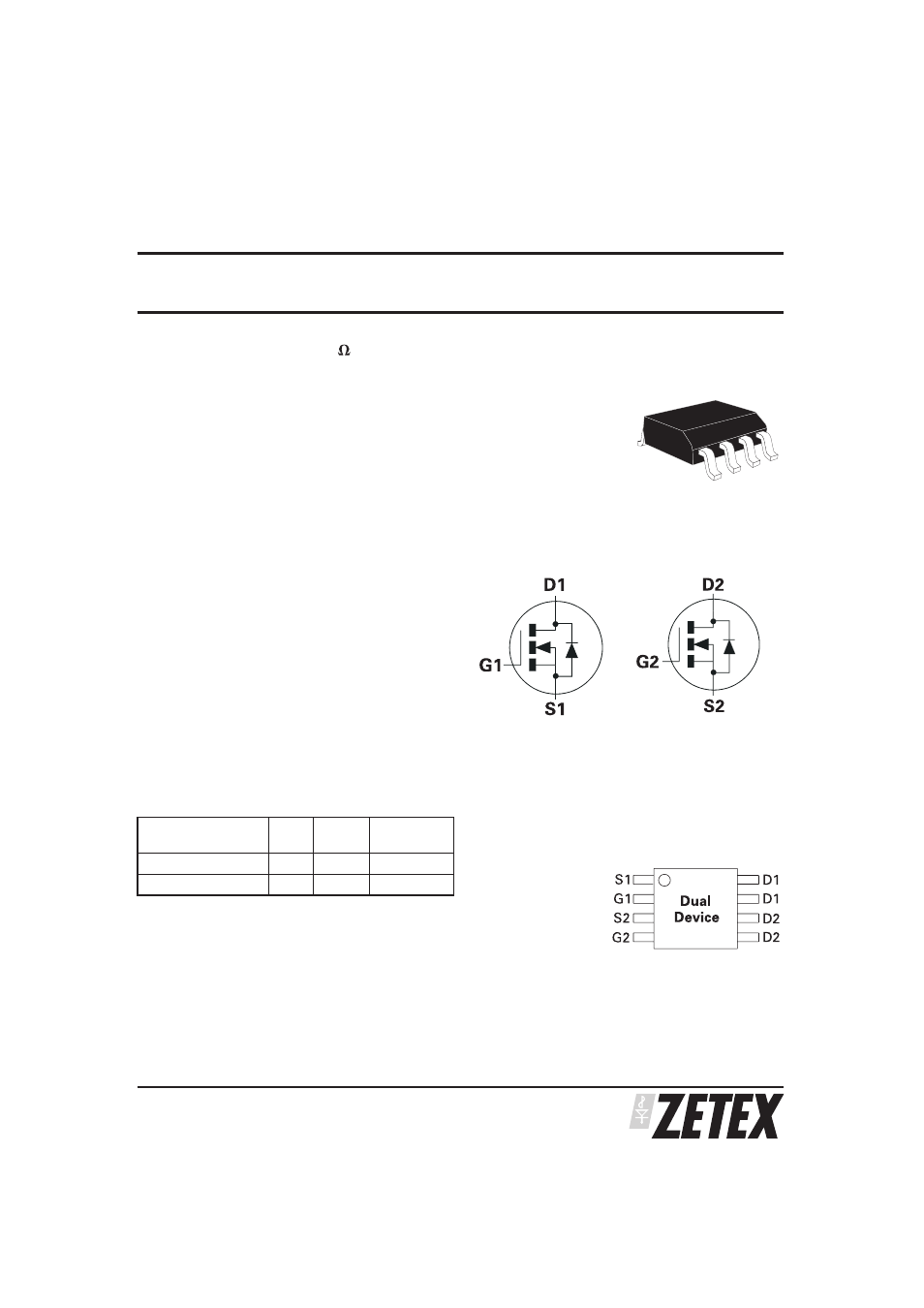

Diodes ZXMN3A06DN8 - Manual

SUMMARY
V
(BR)DSS
= 30V; R
DS(ON)
= 0.035 ; I
D
= 6.2A
DESCRIPTION
This new generation of TRENCH MOSFETs from Zetex utilizes a unique
structure that combines the benefits of low on-resistance with fast switching
speed. This makes them ideal for high efficiency, low voltage, power
management applications.
FEATURES
•
Low on-resistance
•
Fast switching speed
•
Low threshold
•
Low gate drive
•
Low profile SOIC package
APPLICATIONS
•
DC - DC Converters
•
Power Management Functions
•
Disconnect switches
•
Motor control
DEVICE MARKING
ZXMN
3A06D
ZXMN3A06DN8
ISSUE 2 - OCTOBER 2002
1
DUAL 30V N-CHANNEL ENHANCEMENT MODE MOSFET
DEVICE REEL TAPE
WIDTH
QUANTITY
PER REEL
ZXMN3A06DN8TA 7’‘ 12mm 500 units
ZXMN3A06DN8TC 13’‘ 12mm 2500 units
ORDERING INFORMATION
SO8
Top view
PINOUT
