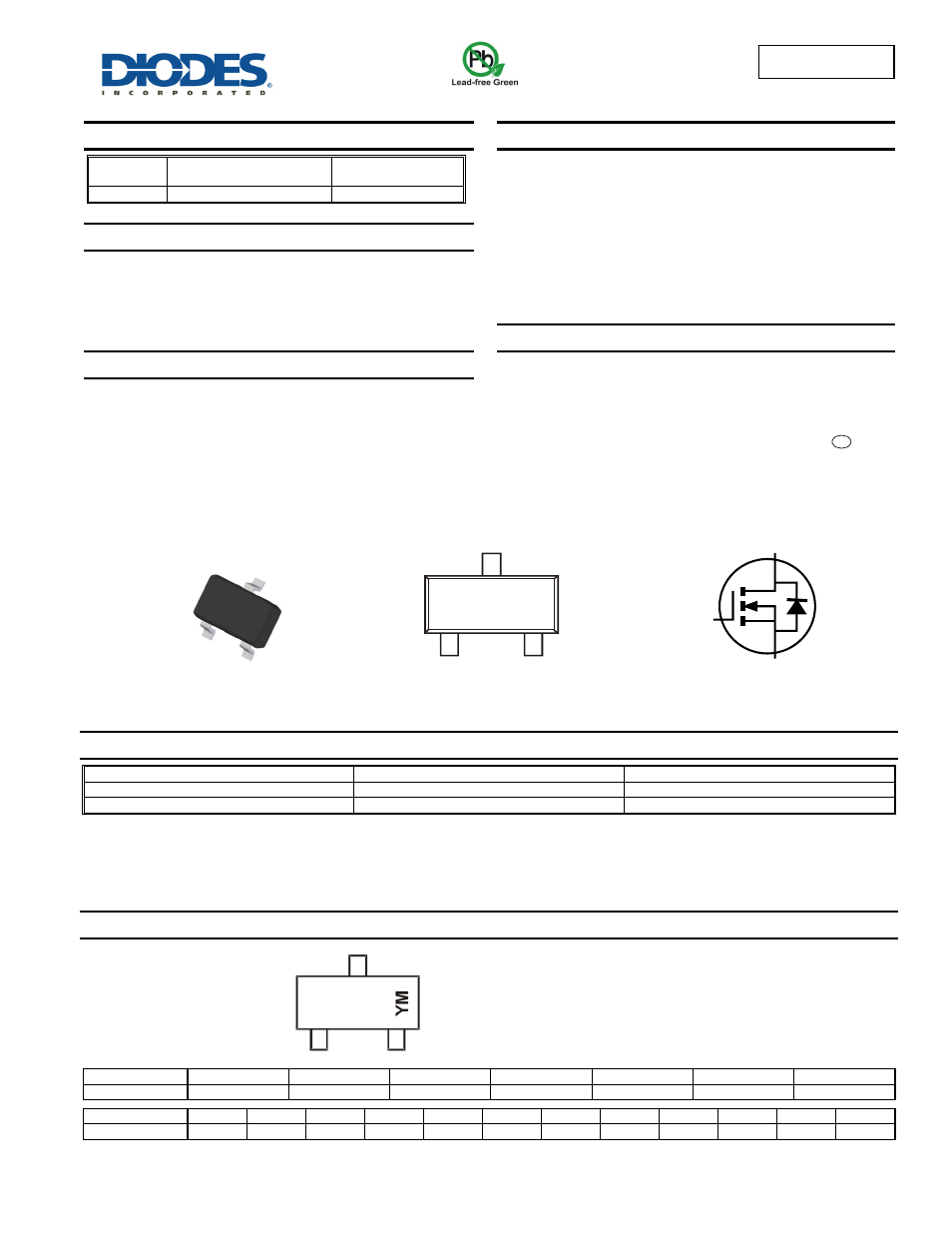

ZXMN3A01F
Document number: DS33528 Rev. 3 - 2
1 of 7
February 2014
© Diodes Incorporated
ZXMN3A01F
ADVANCED INFORMATION
D
S
G
30V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
30V 0.12Ω @ V
GS
= 10V
2.0A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
DC-DC
Converters
Power Management Functions
Motor
Control
Features
Low
On-Resistance
Fast Switching Speed
Low
Threshold
Low Gate Drive
Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Terminal Connections: See Diagram
Weight: 0.006 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
ZXMN3A01FTA
SOT23
3,000/Tape & Reel
ZXMN3A01FTC
SOT23
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
e3
Top View
D
G
S
Top View
Pin Configuration
Equivalent Circuit
7N3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2013)
M = Month (ex: 9 = September)
7N3
