ZXGD3102T8
ACTIVE OR’ING CONTROLLER
Description
The ZXGD3102 is intended to drive MOSFETs
configured as ideal diode replacements. The
device is comprised of a differential amplifier
detector stage and high current driver. The
detector monitors the reverse voltage of the
MOSFET such that if body diode conduction
occurs a positive voltage is applied to the
MOSFET’s Gate pin. Once the positive voltage is applied to the Gate
the MOSFET switches on allowing reverse current
flow. The detectors’ output voltage is then
proportional to the MOSFET Drain-Source reverse
voltage drop and this is applied to the Gate via the
driver. This action provides a rapid turn off as
current decays.
Features
• Turn-off time typically 105ns
• 180V blocking voltage
• Proportional Gate drive
• 2A Source, 5A Sink driver
• V
CC
Range 5-15V
• Low component count
Applications
• High Side OR’ing diode replacement for
Servers, Computer
• Low Side OR’ing diode replacement for
Telecoms
• Ideal diode applications

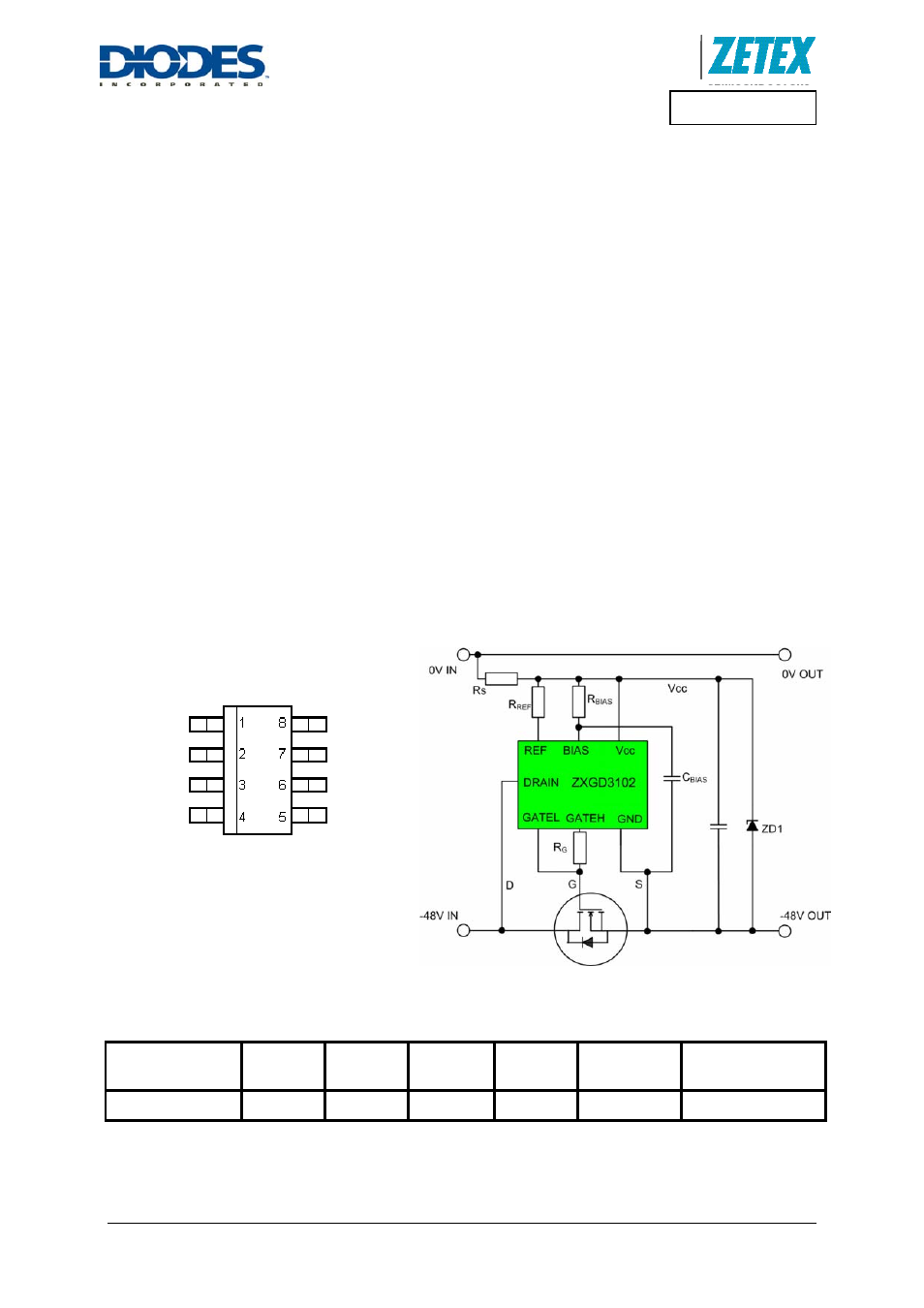

Pin out details Typical Configuration
Ordering information
Device Status Package Part Mark
Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXGD3102T8TA Active SM8 ZXGD3102 7 12 1000
GATEL 3
REF 2
N/C 1
GATEH 4
8 DRAIN
7 BIAS
6 GND
5 V
CC
SM8
