ZXTP558L

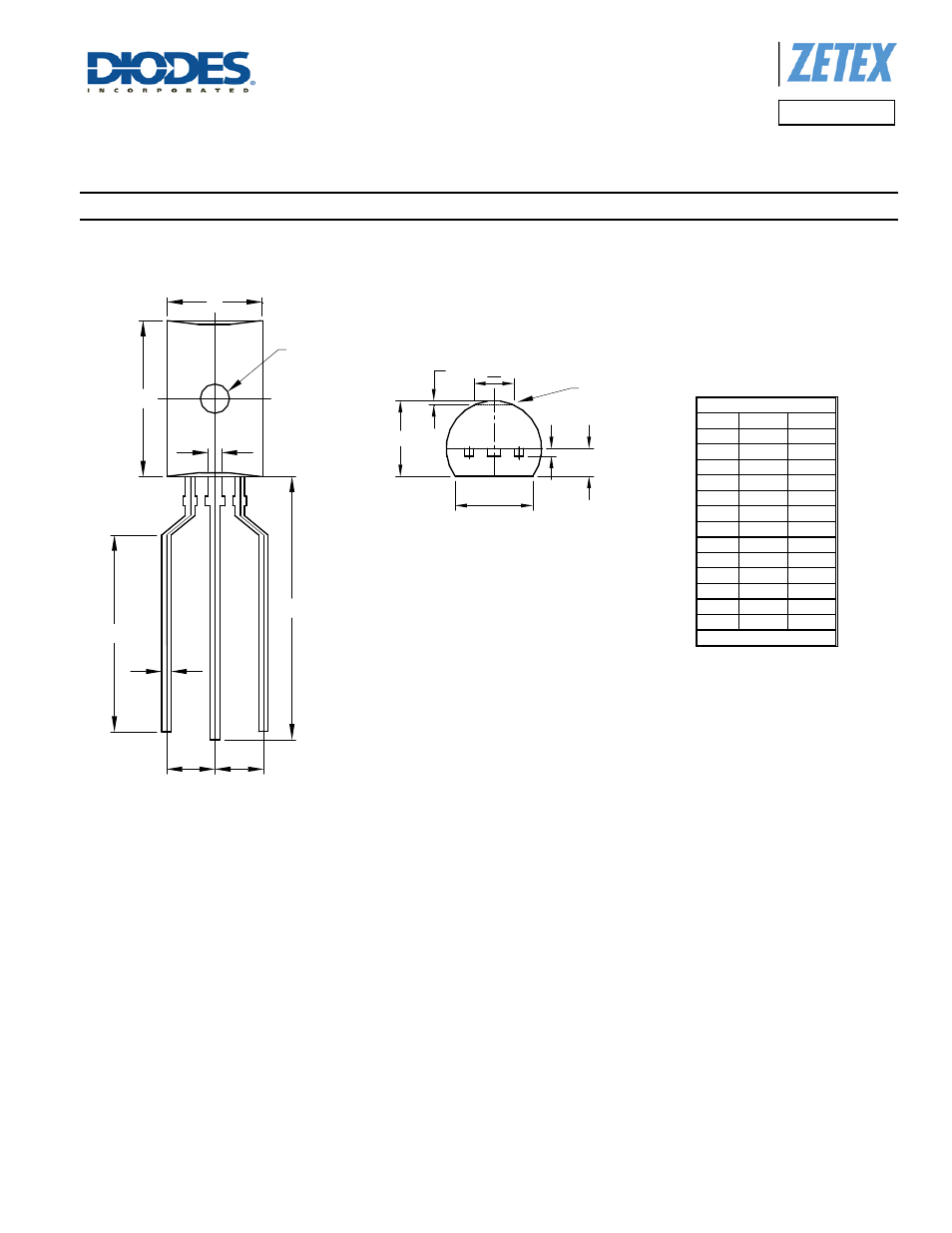

Package Outline Dimensions
TO92L
Dim Min Max
A 3.70 4.10
A1 1.28 1.58
b 0.35 0.55
b1 0.60 0.80
c 0.35 0.45
D 4.70 5.10
D1 4.00 -
e1 2.30 2.70
E 7.80 8.20
L 10.10 10.70
L1 13.80 14.20
h 0.00 0.30
θ - 1.60
All Dimensions in mm
Taped
L 1
L
b
b 1
E
D
e 1 e 1
E j e c t i o n M a r k
D 1
A
h
A 1
c
O
E j e c t i o n M a r k
