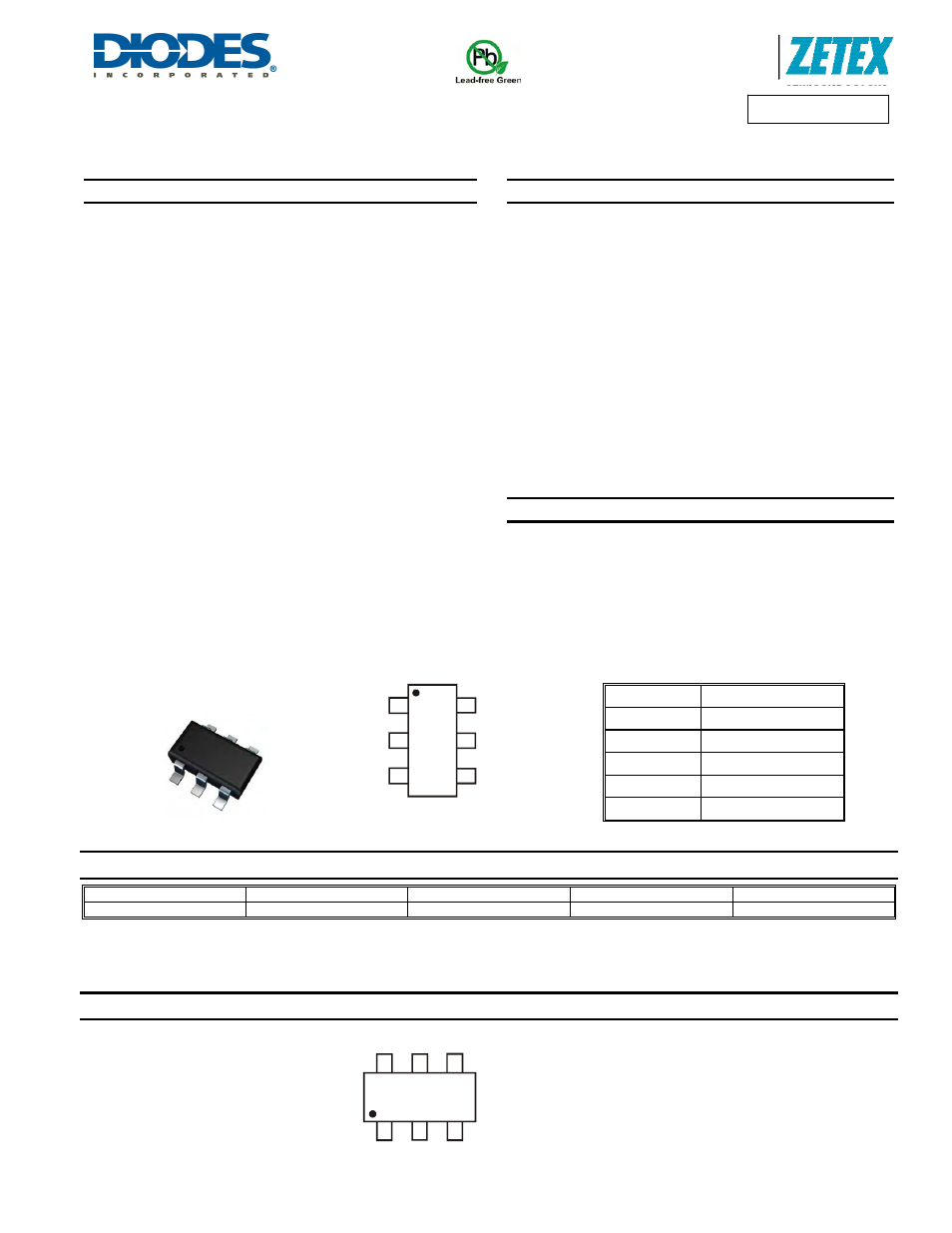

ZXGD3005E6

ADVAN

CE I

N

F

O

RM

ATI

O

N

25V 10A GATE DRIVER IN SOT26

Description and Applications

The ZXGD3005E6 is a high-speed non-inverting single gate driver
capable of driving up to 10A into a MOSFET or IGBT gate capacitive
load from supply voltages up to 25V. With propagation delay times
down to <10ns and correspondingly rise/fall times of <20ns.

This gate driver ensures rapid switching of the MOSFET or IGBT to
minimize power losses and distortion in high current switching
applications. It is ideally suited to act as a voltage buffer between the
typically high output impedances of a controller IC and the effectively
low impedance on the gate of a power MOSFET or IGBT during
switching. Its low input voltage requirement and high current gain
allows high current driving from low voltage controller ICs.

The ZXGD3005E6 has separate source and sink outputs that enables
the turn-on and turn-off times of the MOSFET or IGBT to be
independently controlled. In addition, the wide supply voltage range
allows full enhancement of the MOSFET or IGBT to minimize on-state
losses and permits +15V to -5V gate drive voltage to prevent dV/dt
induced false triggering of IGBTs. The ZXGD3005E6 has been
designed to be inherently rugged to latch-up and shoot-through
issues. The optimized pin-out SOT26 package eases board layout,
enabling reduced parasitic inductance of traces.

Power MOSFET and IGBT Gate Driving in:

Synchronous switch-mode power supplies

Power Factor Correction (PFC) in power supplies

Secondary side synchronous rectification

Plasma Display Panel power modules

1, 2 and 3-phase motor control circuits

Audio switching amplifier power output stages

• Solar

inverters

Features and Benefits

Emitter-follower configuration for ultra-fast switching

<10ns propagation delay time

<20ns rise/fall time

Non-inverting voltage buffer stage

Wide supply voltage up to 25V to minimize on-losses

10A peak current drive into capacitive loads

Low input current of 1mA to deliver 4A output current

Separate source and sink outputs for independent control of rise
and fall time

Optimized pin-out to ease board layout and minimize parasitic
inductance of traces

Rugged design that avoids latch-up or shoot-through issues

Near - Zero quiescent supply current

“Lead-Free”, RoHS Compliant (Note 1)

“Green” Devices (Note 2)

Qualified to AEC-Q101 Standards for High Reliability



Mechanical Data

• Case:

SOT26

Case material: Molded Plastic. “Green” Molding Compound.

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.018 grams (approximate)





1



Ordering Information

(Note 3)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

ZXGD3005E6TA 3005

7

8

3000

Notes:

1. No purposefully added lead
2. “Green” devices, Halogen and Antimony Free, Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For packaging details, go to our website at http://www.diodes.com


Marking Information

Pin Name

Pin Function

V

CC

Supply voltage high

IN

Driver input pin

V

EE

Supply voltage low

SOURCE Source

current

output

SINK

Sink current output

3005 = Product Type Marking Code

SOT26

Top View

Top View

Pin-Out

3005

V

CC

IN

V

EE

Source

Do Not Connect

Sink
