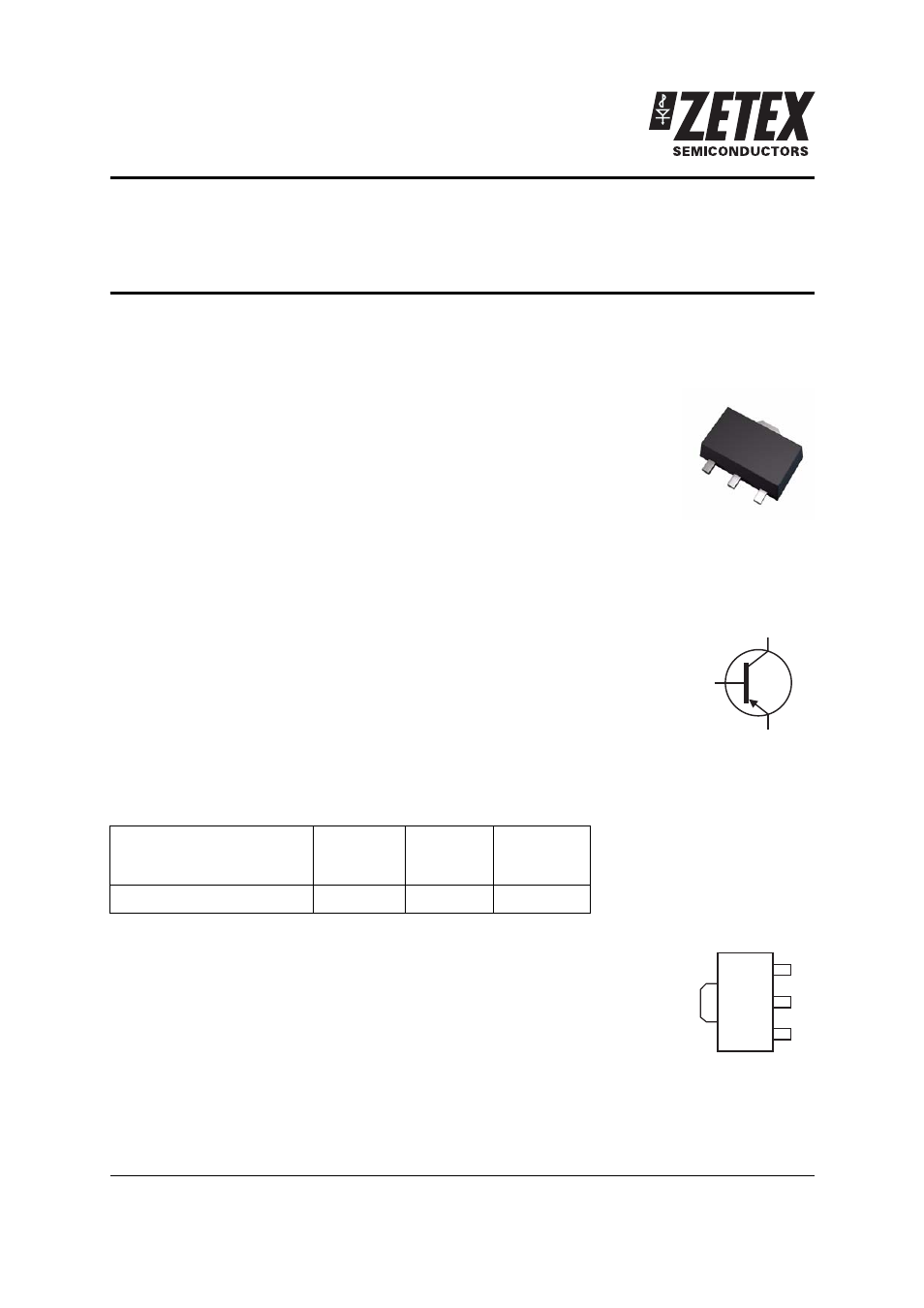

ZX5T955Z.
140V PNP Low saturation medium power transistor
in SOT89
Summary
BV
CEO
= -140V : R
SAT
= 85m
⍀; I
C
= -3A
Description
Packaged in the SOT89 outline this new 5th generation low saturation 140V
PNP transistor offers low on state losses making it ideal for use in DC-DC
circuits, line switching and various driving and power management functions.
Features
•
3 amps continuous current
•
Up to 10 amps peak current
•
Very low saturation voltages
Applications
•
Motor driving
•
Line switching
•
High side switches
•
Subscriber line interface cards (SLIC)
Ordering Information
Device Marking
955
Device
Reel
Size
Tape
Width
Quantity
Per Reel
ZX5T955TA
7”
12mm
1000
C
E
B
C
E
Pinout - top view
C
B
