ZTX796A
A Product Line of
Diodes Incorporated

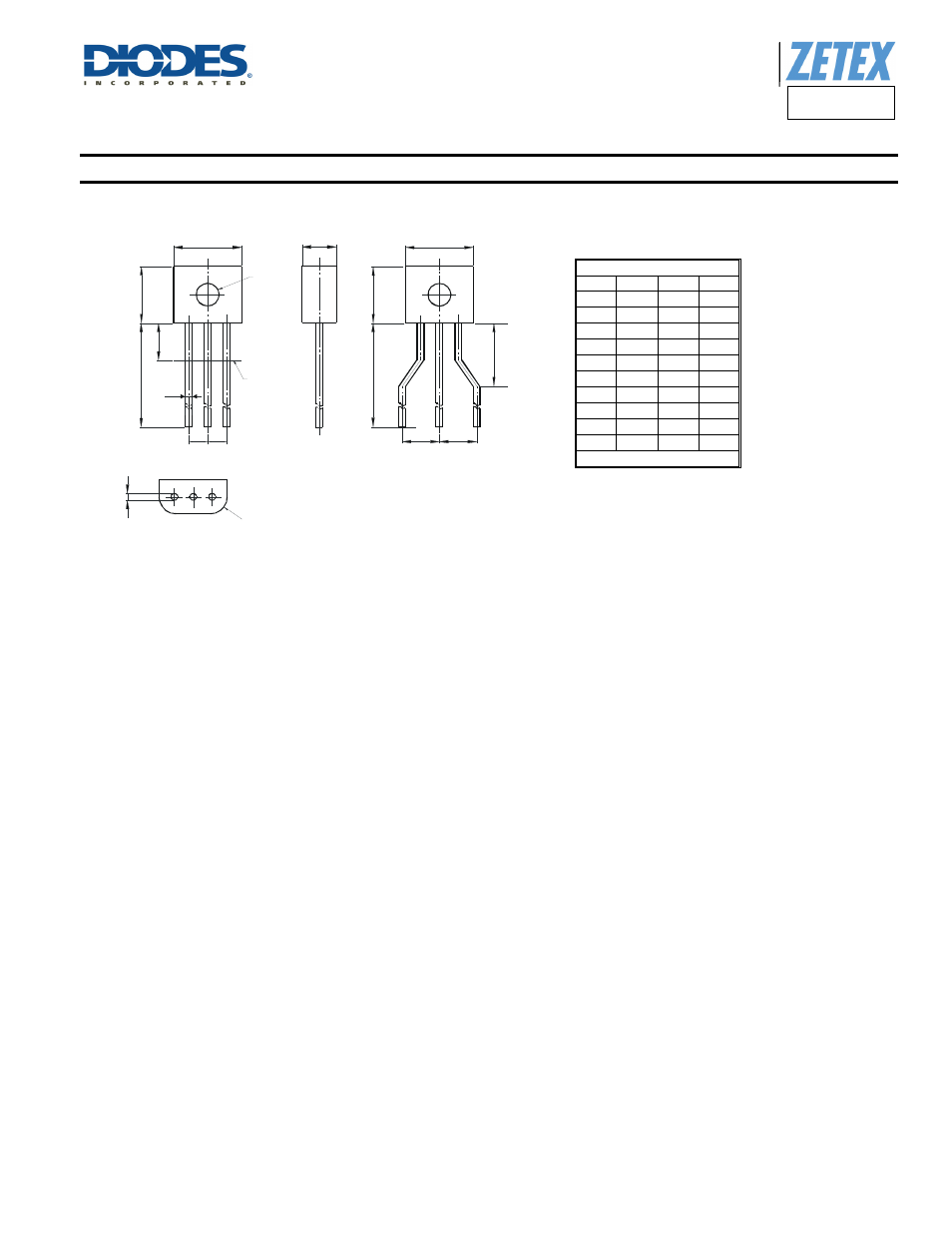

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Note: For high voltage applications, the appropriate industry sector guidelines should be considered with regards to voltage spacing between terminals.
E-Line
Dim Min Max Typ
A 2.16 2.41 
b 0.41 0.495 
b1 0.41 0.495 
D 4.37 4.77 
E 3.61 4.01 
e   1.27
e2   2.54
F  2.50 
L 13.00 13.97 
L1 2.50 3.50 
All Dimensions in mm
b 1
R 1 . 1 4
︵
. 0 4 5
︶
T A P E D P R O D U C T
E
L
D
e 2 e 2
E
L
F
D
e e
E j e c t i o n
M a r k
b
L O O S E P R O D U C T
S e a t i n g
P l a n e
A
L 1
