ZXTN19055DZ
55V, SOT89, NPN medium power transistor
Summary
BV
CEX
> 150V
BV
CEO
> 55V
I
C(cont)
= 6A
V
CE(sat)
< 60mV @ 1A
R
CE(sat)
= 28m
⍀
P
D
= 2.1W
Description
Packaged in the SOT89 outline this low saturation 55V NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Feature
• Extremely low equivalent on-resistance of 28m ⍀
• 6 Amps continuous current
• Up to 10 amps peak current
• Very low saturation voltages
• Excellent h
FE
characteristics up to 10 amps
• 150V Forward blocking voltage
Applications
• Emergency lighting circuits
• Motor driving (including DC fans)
• Solenoid, relay and actuator drivers
• DC modules
• Backlight inverters
Ordering information
Device marking
S75
Device Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXTN19055DZTA 7 12 1000
C
E
B
C
E

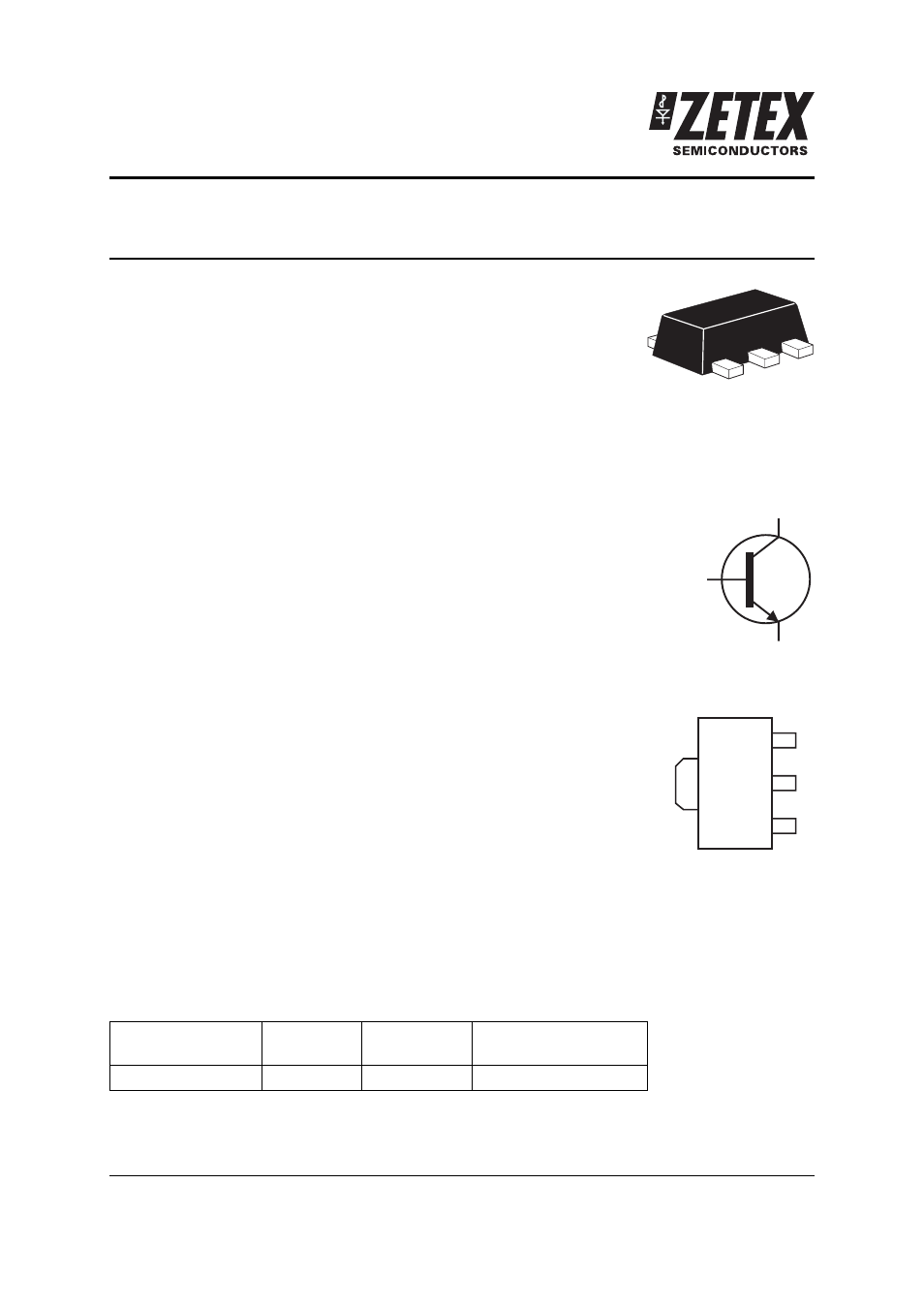

Pinout - top view
C
B
