ZXTN26070CV
Document number: DS32129 Rev. 3 - 2
1 of 7
www.diodes.com
April 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN26070CV
70V NPN LOW SATURATION TRANSISTOR IN SOT-666
Features
• BVceo = 70V, BVcbo = 150V
• I
C
Cont. 2A
•
5A Peak Pulse Current
•
Extremely Low Equivalent On Resistance; R CE(sat) = 130m Ω at
1A
• Lead, Halogen, and Antimony Free/RoHS Compliant (Note 1)
•
“Green” Devices (Note 2)
Applications
• DC-DC
converter
Mechanical Data
• Case: SOT-666
• Case material: Molded Plastic. “Green” Molding Compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.003 grams (Approximate)
Ordering Information
(Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXTN26070CV-7 1Q6 7 8mm 3000
Notes: 1. No purposefully added lead. Halogen and Antimony free: <900ppm bromine, <900ppm chlorine (<1500ppm total) and <1000ppm antimony compounds.
2. Diodes Inc.‘s “Green” Policy can be found on our website at http://www.diodes.com
3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Top View
1Q6 = Product Type Marking Code

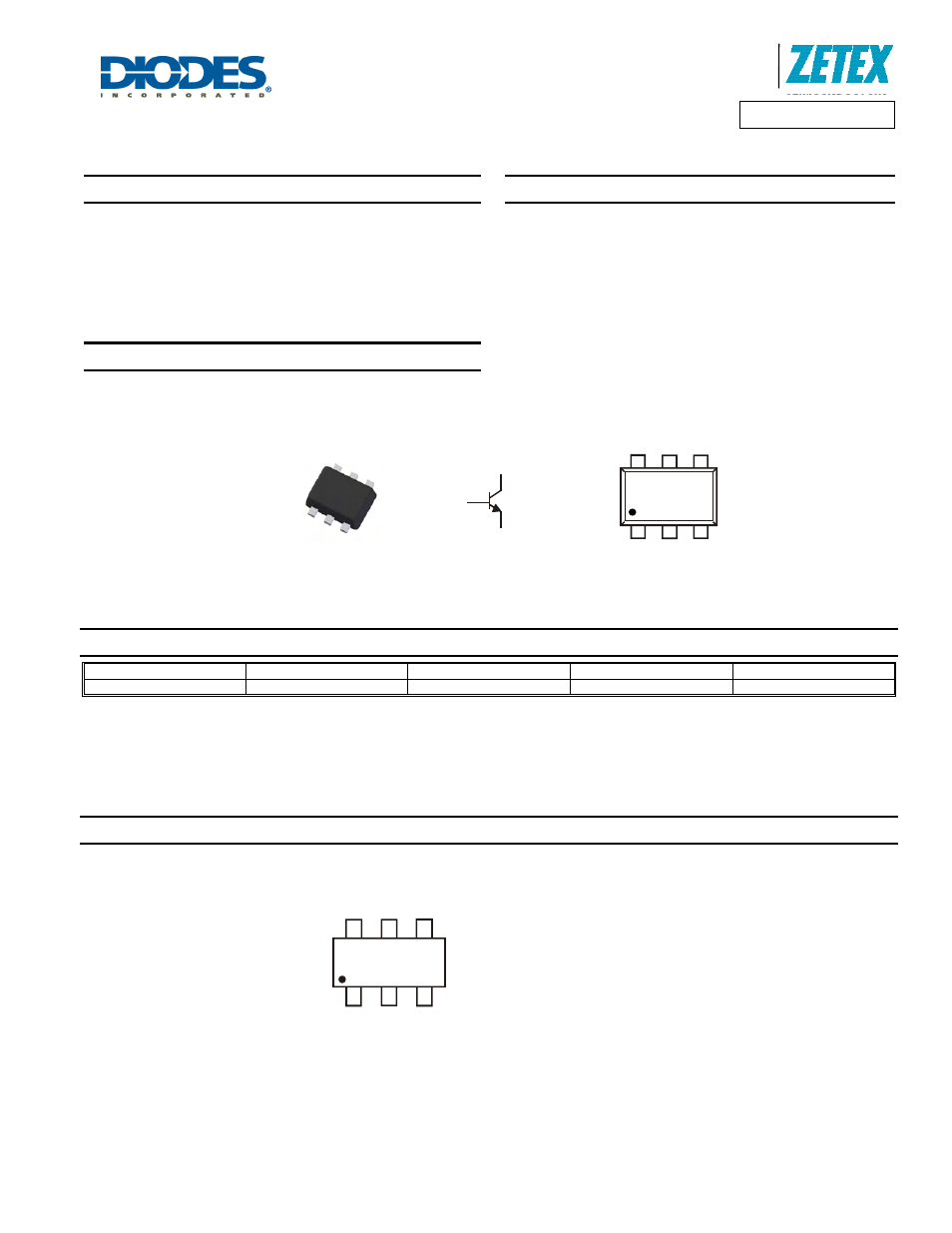

Device Schematic Pin Out Configuration
1 2 3
6 5 4
1, 2, 5, 6
3
4
1Q6
