ZXTC4591AMC
Document number: DS31925 Rev. 4 - 2
1 of 9
October 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTC4591AMC
COMPLEMENTARY 40V HIGH PERFORMANCE TRANSISTOR
Features
NPN Transistor
• BV
CEO
> 40V
•
I
C
= 3A Continuous Collector Current
•
Low Saturation Voltage (500mV max @ 1A)
•
R
SAT
= 195m
Ω for a low equivalent On-Resistance
PNP Transistor
• BV
CEO
> -40V
•
I
C
= -3A Continuous Collector Current
•
Low Saturation Voltage (-500mV max @ -1A)
•
R
SAT
= 350m
Ω for a low equivalent On-Resistance
•
h
FE
characterized up to 2A for high current gain hold up
•
Low profile 0.8mm high package for thin applications
•
R
θJA
efficient, 40% lower than SOT26
• 6mm
2
footprint, 50% smaller than TSOP6 and SOT26
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP capable (Note 4)
Mechanical Data
•
Case: W-DFN3020-8 Type B
•
Nominal package height: 0.8mm
•
Case material: molded plastic. “Green” molding compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - NiPdAu, Solderable per MIL-STD-202,
Method 208
•
Weight: 0.013 grams (approximate)
Applications
•
DC – DC Converters
• Charging
circuits
• Power
switches
•
LED Backlighting circuits
• Motor
control
• Portable
applications
Ordering Information
(Note 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTC4591AMCTA AEC-Q101
91A
7
8
3,000
ZXTC4591AMCQTA Automotive
91A
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at
Marking Information

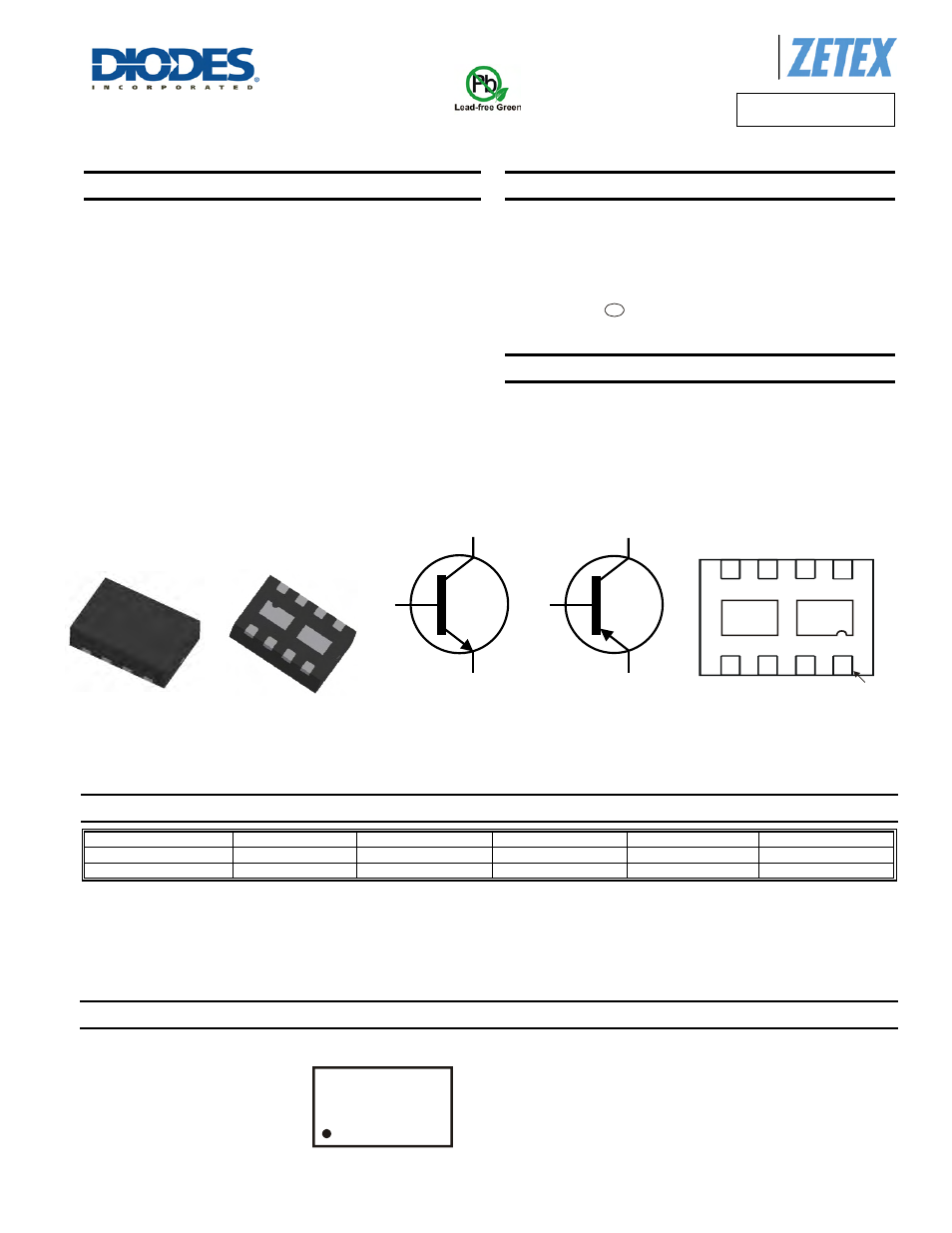

Equivalent Circuit
Top View
Bottom View
W-DFN3020-8
Type B
NPN Transistor
PNP Transistor
91A = Product type marking code
Top view, dot denotes pin 1
C2
E2
B2
C1
E1
B1
C2
C2
C1
C1
E2
B2
E1
B1
C1
C2
Pin 1
Bottom View
Pin Out
91A
e4
