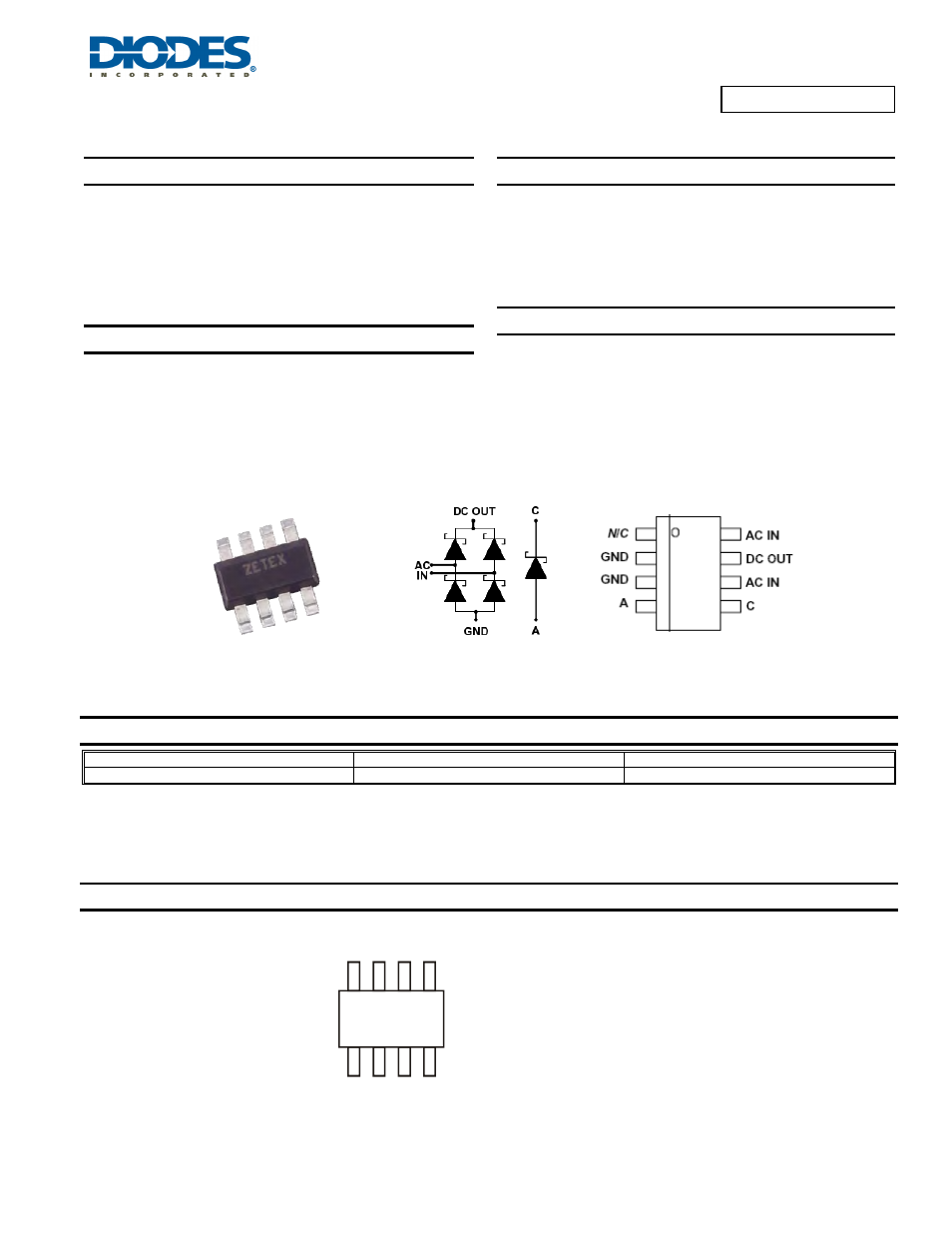

ZXSBMR16PT8
SCHOTTKY BRIDGE RECTIFIER PLUS FREEWHEEL DIODE
Product Summary
•
Schottky Bridge and Freewheel diode for use in MR16 LED
Drive
•
Internal Ambient Temperature = 90°C MAX within MR16 circuit
enclosure
•
V
R
= 13.2V
RMS
•
I
F
= 0.4A
AVG
•
I
R
= 10
μA
Description and Applications
This low leakage Schottky bridge and freewheel diode have been
specifically designed for the MR16 LED driver solution alongside
ZXLD1350E5 as described in Design Note DN86.
Features and Benefits
•
Compact surface mount solution and reduced component count in
MR16 LED drive circuit
•
Optimized bridge and freewheel diode for use in MR16 LED diode
circuitry
• Low
V
F
and low reverse leakage current
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SM-8
•
Case Material: TBD
• Moisture
Sensitivity:
TBD
• Terminals:
TBD
•
Weight: TBD grams (approximate)
Ordering Information
(Note 1)
Device
Packaging
Shipping
ZXSBMR16PT8TA
SM-8
1000/Tape & Reel
Notes:
1. For Packaging Details, go to our website at
Marking Information
Top View
ZXSBMR16P = Product Type Marking Code
SM-8
ZXMB
MR16P
Device Circuit
Top View
Pin-Out
