SD101AW - SD101CW

Document number: DS11012 Rev. 19 - 2

1 of 3

www.diodes.com

July 2008

© Diodes Incorporated

SD101AW - SD101CW


SCHOTTKY BARRIER SWITCHING DIODE

Features

Low Forward Voltage Drop

Guard Ring Construction for Transient Protection

Negligible Reverse Recovery Time

Very Low Reverse Capacitance

Lead, Halogen and Antimony Free, RoHS Compliant

"Green" Device (Notes 2 and 3)

Mechanical Data

Case: SOD-123

Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Leads: Solderable per MIL-STD-202, Method 208

Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe)

Polarity: Cathode Band

Marking Information: See Page 3

Ordering Information: See Page 3

Weight: 0.01 grams (approximate)







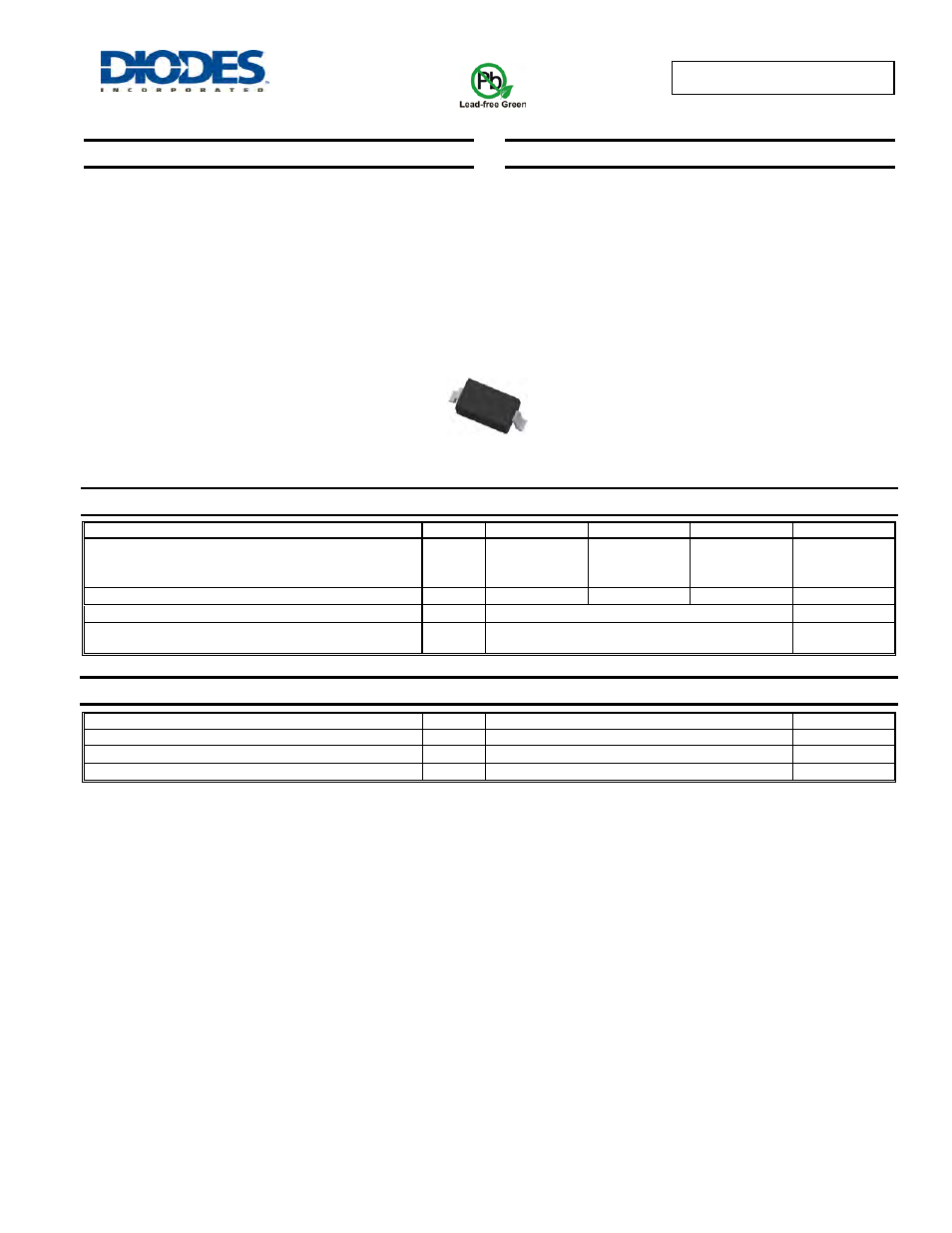

Top View


Maximum Ratings

@T

A

= 25°C unless otherwise specified

Characteristic

Symbol

SD101AW

SD101BW

SD101CW

Unit

Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage

V

RRM

V

RWM

V

R

60

50

40

V

RMS Reverse Voltage

V

R(RMS)

42

35

28

V

Forward Continuous Current (Note 1)

I

FM

15

mA

Non-Repetitive Peak Forward Surge Current @ t

≤ 1.0s

@ t = 10

μs

I

FSM

50

2.0

mA

A

Thermal Characteristics

Characteristic

Symbol

Value

Unit

Power Dissipation (Note 1)

P

D

400

mW

Thermal Resistance, Junction to Ambient Air (Note 1)

R

θJA

300

°C/W

Operating and Storage Temperature Range

T

J

, T

STG

-65 to +125

°C

Notes:

1. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

2. No purposefully added lead. Halogen and Antimony Free.
3. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code
V9 are built with Non-Green Molding Compound and may contain Halogens or Sb

2

O

3

Fire Retardants.
