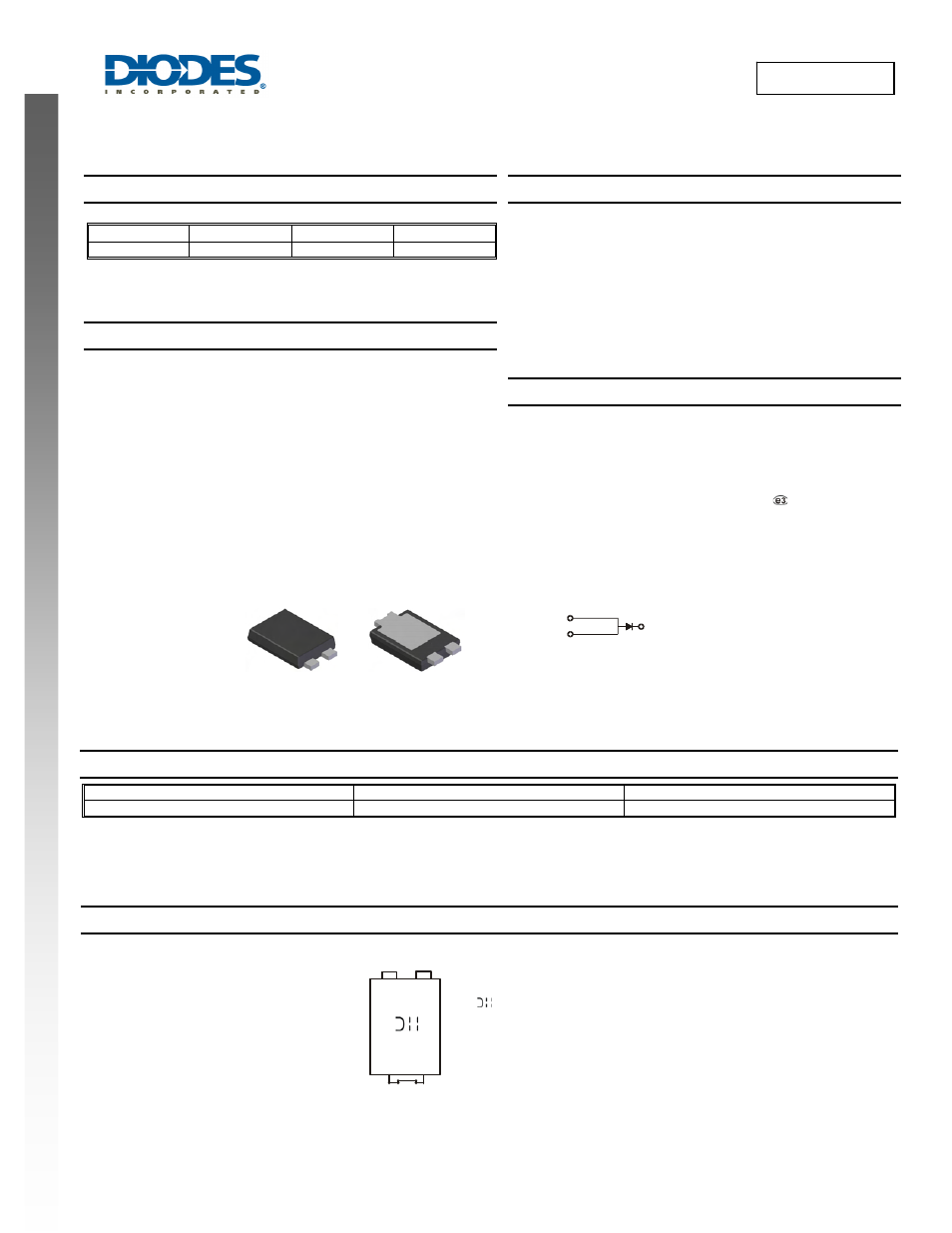

Diodes SBR8A60P5 User Manual
Sbr8a60p5 new prod uc t, New prod uc t, Product summary
SBR8A60P5
Document number: DS35382 Rev. 3 - 2
1 of 4
January 2012
© Diodes Incorporated
SBR8A60P5
NEW PROD
UC
T
SBR and POWERDI are registered trademarks of Diodes Incorporated.
NEW PROD
UC
T
8A SBR
®
SUPER BARRIER RECTIFIER
POWERDI
®
5
Product Summary
V
RRM
(V)
I
O
(A) V
F
(V) I
R
(mA)
60 8 0.55
0.092
Description and Applications
The SBR8A60P5 uses patented SBR technology which offers low VF,
excellent high temperature stability and soft switching characteristics for
reduced EMI.
Packaged in the compact patented PowerDI-5 package, this product also
offers excellent thermal efficiency and high surge current handling
capability.
•
DC – DC Converters
•
DC/AC Inverters
•
AC/DC Power Supplies
Features and Benefits
•
Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Interlocking Clip Design for High Surge Current
Capacity
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
175ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 1)
•
“Green” Molding Compound (No Br, Sb)
Mechanical Data
• Case:
POWERDI
®
5
•
Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: See Below
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 2)
Part Number
Case
Packaging
SBR8A60P5-13 POWERDI
®
5
5000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, go to our website at
Marking Information
Top View
Bottom View
LEFT PIN
RIGHT PIN
Note: Pins Left & Right must
be electrically connected
at the printed circuit board.
BOTTOMSIDE
HEAT SINK
S8A60 = Product Type Marking Code
= Manufacturers’ Code Marking
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 11 for 2011)
WW = Week Code (01 - 53)
K = Factory Designator
YYWWK
S8A60
