ZHCS2000
Document number: DS33221 Rev. 4 - 2
2 of 6
www.diodes.com
September 2011
© Diodes Incorporated
ZHCS2000
Maximum Ratings
@T A = 25°C unless otherwise specified
Characteristic Symbol Value Units
Continuous Reverse Voltage V
R
40 V
Continuous Forward Current I
F
2 A
Average Peak Forward Current; D.C. = 50% I FAV
4 A
Non Repetitive Forward Current
t ≤ 100μs
I
FSM
20 A
t
≤ 10ms 10 A

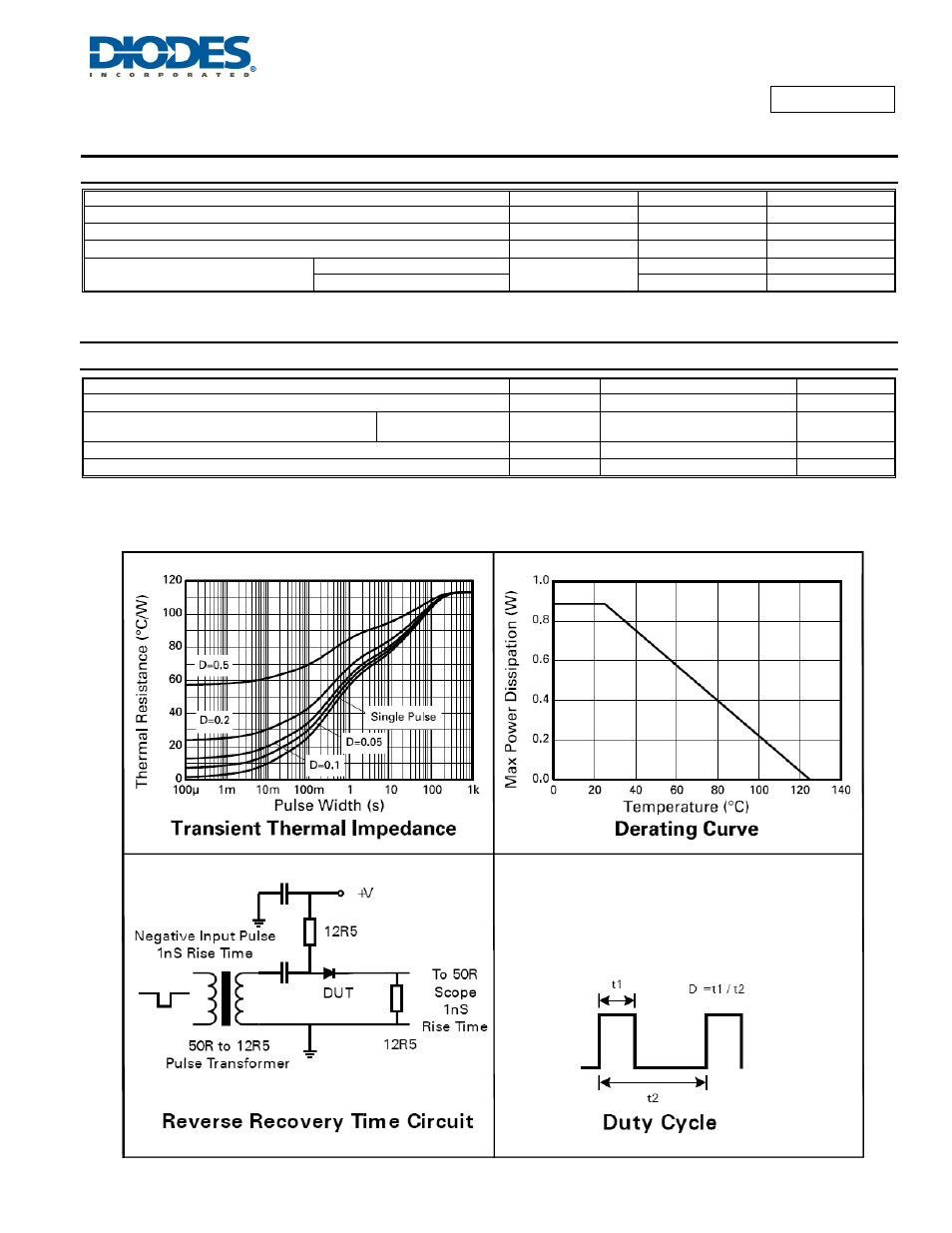

Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation, T A = 25°C P D
1.1 W
Thermal Resistance, Junction to Ambient
(Note 2)
(Note 3)
R θJA
113
73
Junction Temperature T
J
125 °C
Storage Temperature Range T
STG
-55 to +150 °C
Notes: 2. For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions.
3. For a device surface mounted on FR4 PCB measured at t ≤ 5 secs.
