ZHCS2000
Document number: DS33221 Rev. 4 - 2
1 of 6
September 2011
© Diodes Incorporated

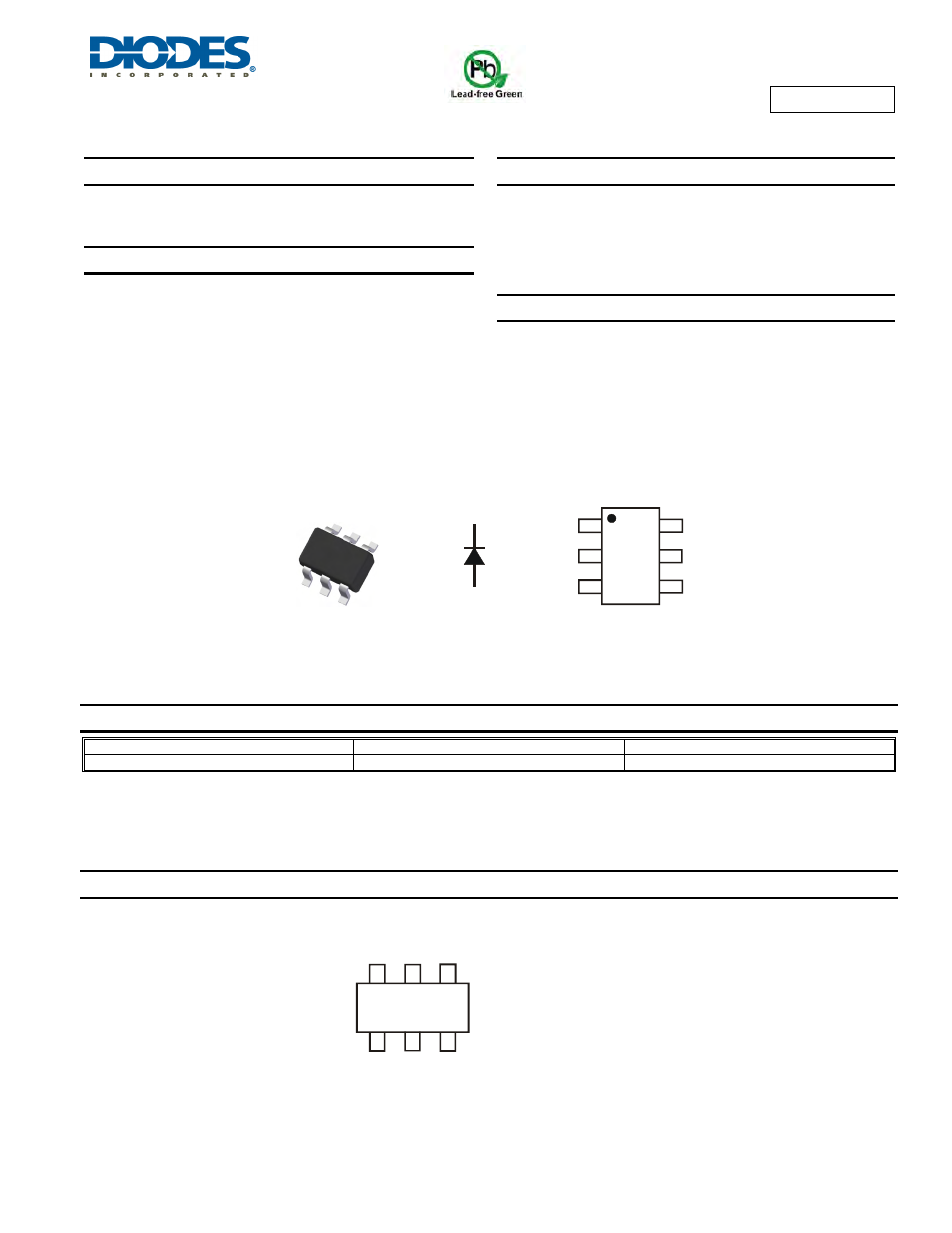

ZHCS2000
40V SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
•
V
R
= 40V
•
I
C
= 2A
Description and Applications
A surface mount Schottky Barrier Diode featuring low forward voltage
drop suitable for high frequency rectification and reverse voltage
protection.
• Mobile
Telecomms
•
DC – DC Converters
•
High Frequency Rectification
Features and Benefits
•
High current capability
•
Low Forward Voltage
•
Fast Recovery Time
•
Small Package Size
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT26
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe
(Lead Free Plating) Solderable per MIL-STD-202, Method 208
•
Weight: 0.016 grams (approximate)
Ordering Information
(Note 1)
Device
Packaging
Shipping
ZHCS2000TA
SOT26
3000/Tape & Reel
Notes:
1. For Packaging Details, go to our website at
Marking Information
Top View
ZS20 = Product Type Marking Code
SOT26
ZS20
C
C
A
C
C
A
Top View
Pin Out
C
A
Device Symbol
