SBR140S1F

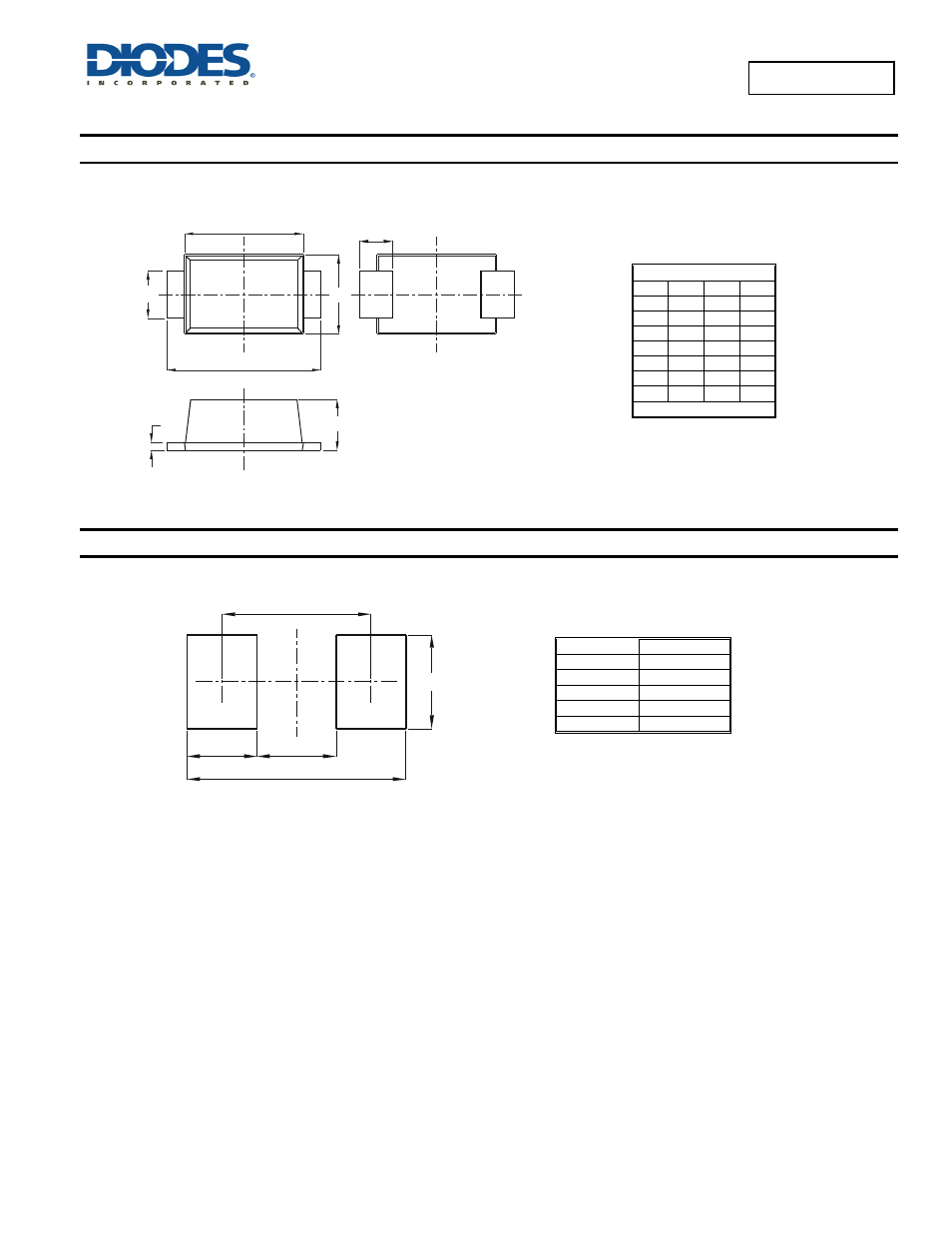

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.
SOD123F
Dim Min Max Typ
A 0.81 1.15 -
b 0.80 1.35 -
c 0.05 0.30 -
D 1.70 1.90 1.80
E 2.60 2.80 2.70
He 3.30 3.70 3.50
L2 0.35 0.85 -
All Dimensions in mm
Dimensions Value (in mm)
C 2.86
G 1.52
X 1.34
X1 4.20
Y 1.80
X
Y
G
X1
C
He
E
L2
D b
A c
