171.227, 171.228 User Manual

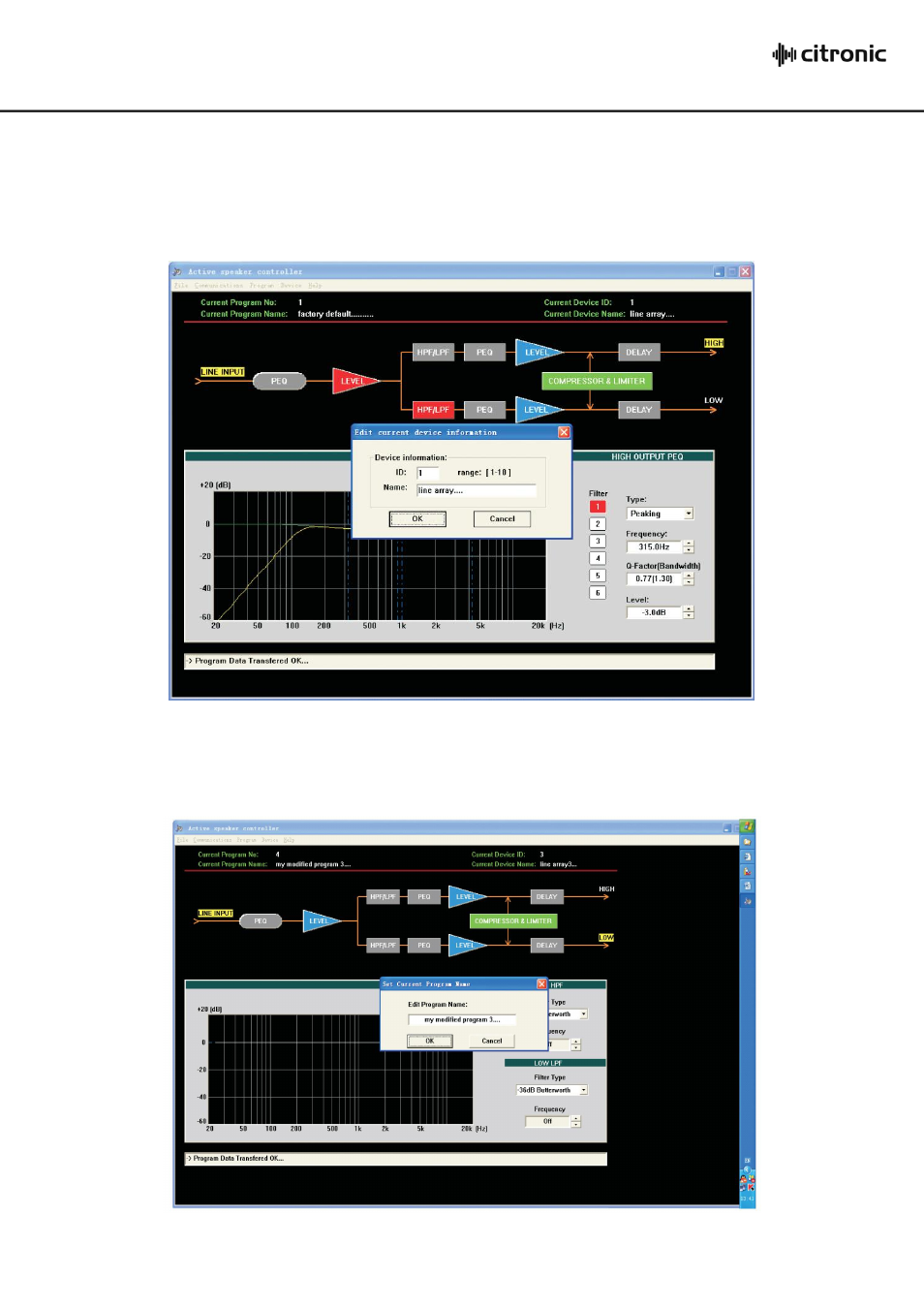

Device Information
For each CLA-300 connected to the PC, the ID number and Device Name can be edited from the
software editor. Click on the “Device” tab and select “Edit Current Device Information”.
Note: Device ID is limited from 1 to 10, allowing up to 10 devices to be addressed separately
connected in a group via RS-485 to the PC. Device name is limited to 14 ASCII characters.
Program Name
To change the current program name, click on the “Program” tab and select “Edit Current Program
Name” and type in the new program name.
