Air Suspension A-2724 REV 1 User Manual
Page 9
9
REV 1
12/13/2013
A-2724
A-
2724
ARNOTT REAR AIR SPRING
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(EXC. AMG)
FIGURE 13
FIGURE 30-14
15.

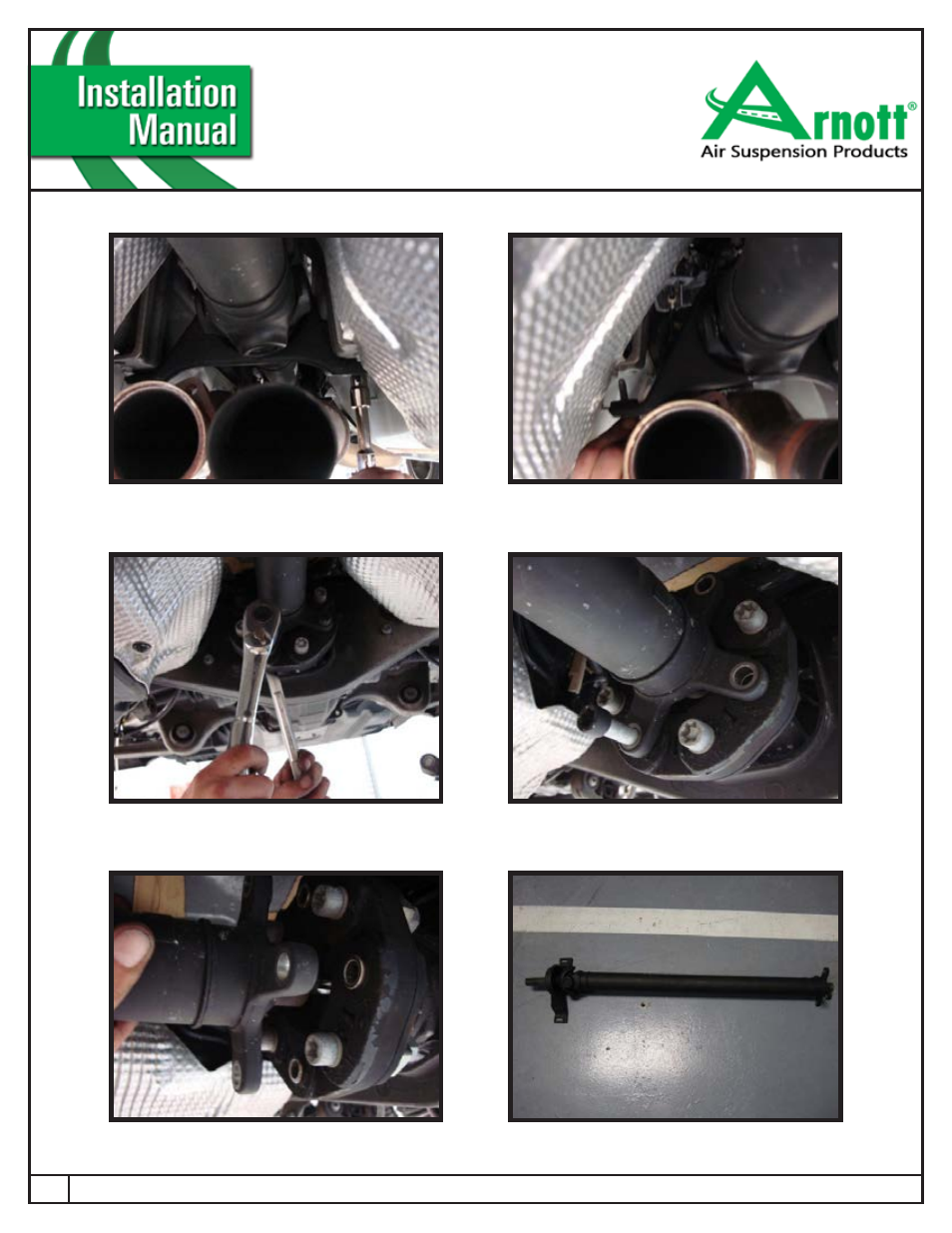

REMOVE THE REAR DRIVESHAFT BOLTS. (FIGURE 14)
14.
REMOVE THE TWO BOLTS HOLDING THE CARRIER BEARING. CAREFULLY LOWER. (FIGURE 13)
16.
SLIDE THE DRIVESHAFT TOWARD THE FRONT OF VEHICLE AND REMOVE. (FIGURE 15)
FIGURE 15
