Air Suspension A-2724 REV 1 User Manual
Page 12
12
REV 1
12/13/2013
A-2724
A-
2724
ARNOTT REAR AIR SPRING
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(EXC. AMG)

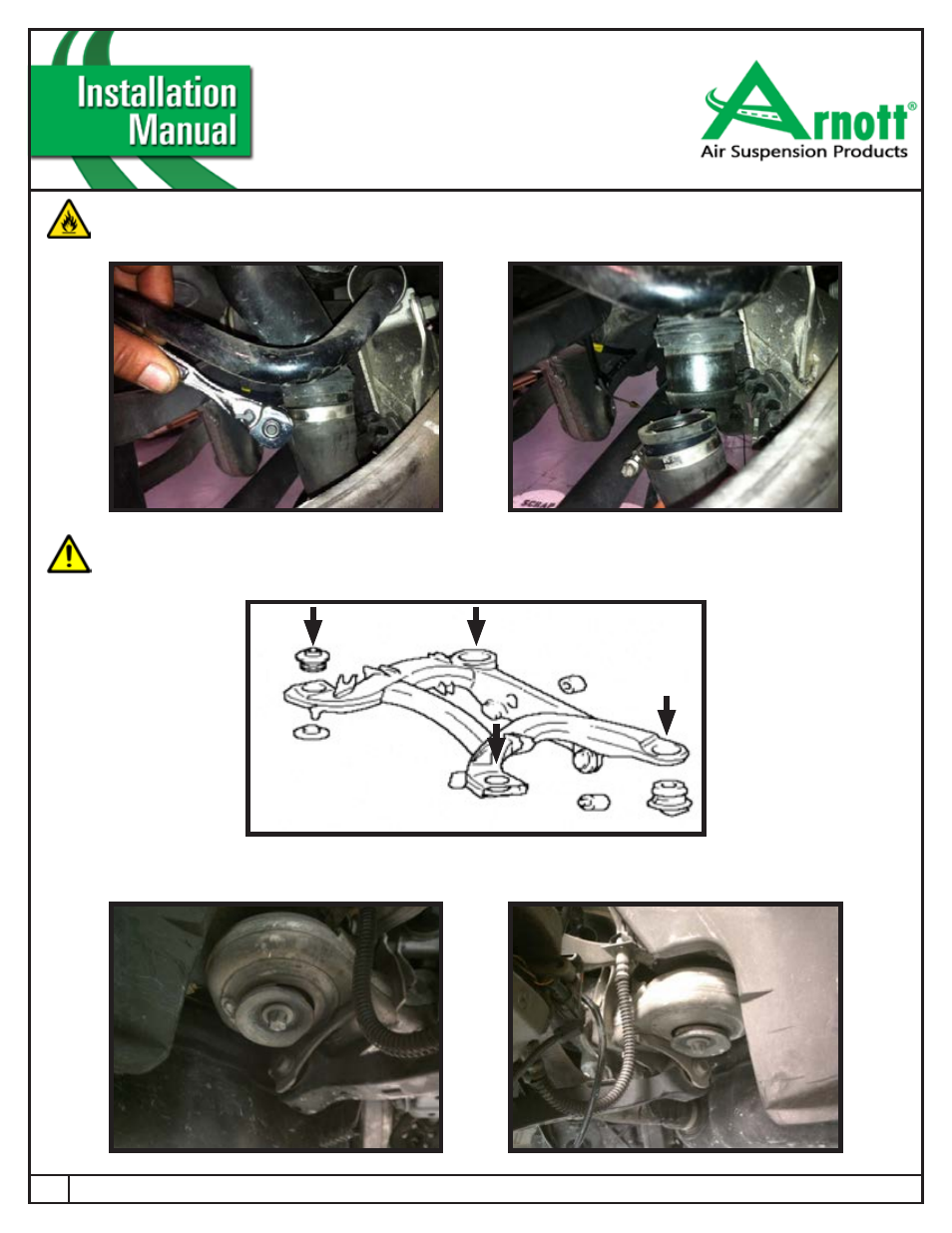

FIGURE 22
FIGURE 23
24.
THE REAR CROSSMEMBER BOLT POINTS. (FIGURE 23)
23.
LOOSEN FILLER NECK CLAMP, AND REMOVE GAS TANK FILLER HOSE. (FIGURE 22)
25.
LOWER THE VEHICLE AND POSITION JACK STANDS TO SUPPORT THE REAR SUB FRAME. REMOVE THE FOUR
(4) BOLTS HOLDING THE SUB FRAME TO THE VEHICLE. (FIGURE 24)
FIGURE 24
FIRE HAZARD:
Use extreme caution when working on, or around, fuel tank as gas fumes may be present.
Use lifting platform (hoist) that is capable of raising the body separately from the wheels, lift body at the lifting points prescribed
by the vehicle manufacturer.
