Air Suspension A-2724 REV 1 User Manual
Page 6
6
REV 1
12/13/2013
A-2724
A-
2724
ARNOTT REAR AIR SPRING
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(EXC. AMG)

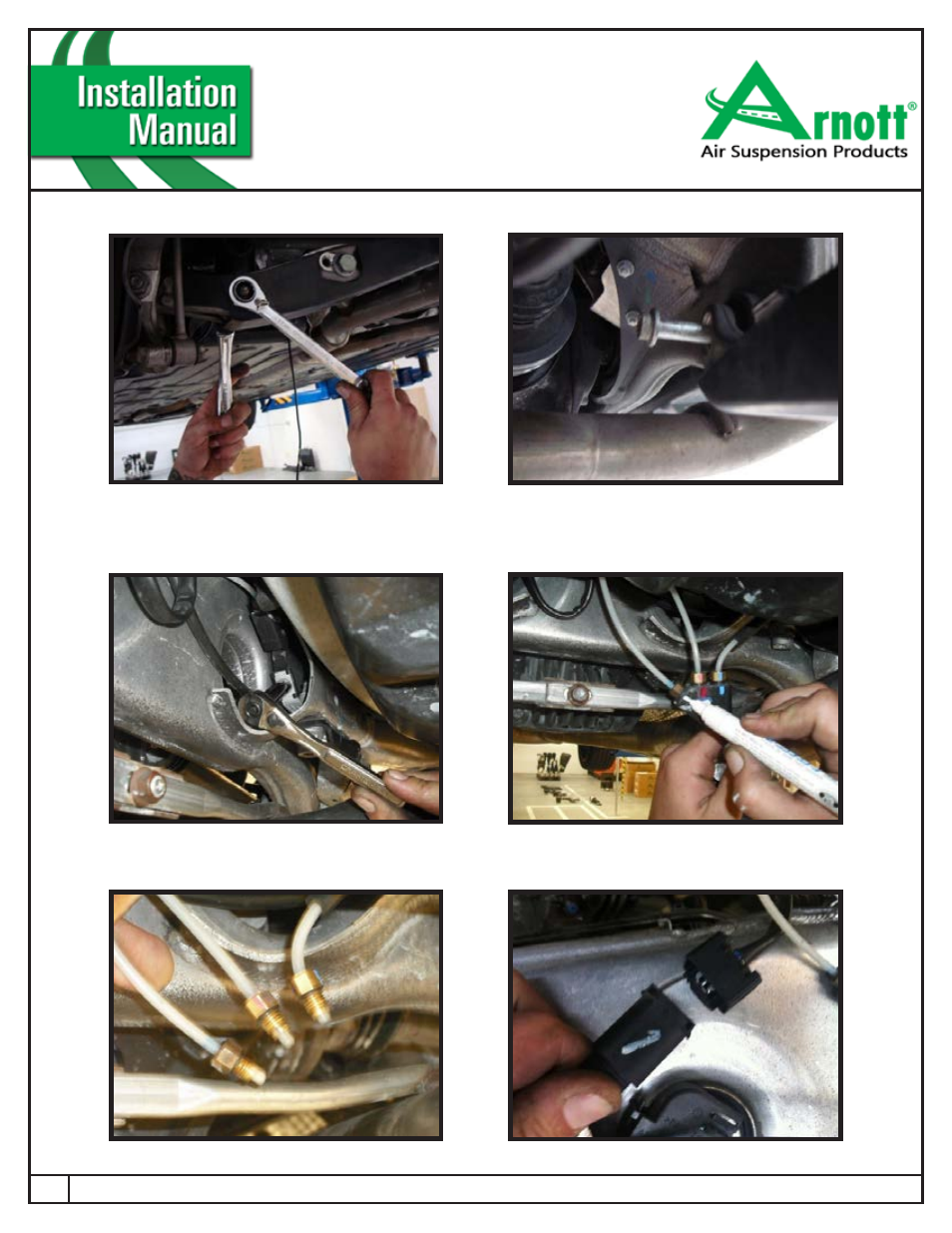

FIGURE 7
8.
REMOVE THE LOWER SHOCK BOLTS. (FIGURE 7)
9.
REMOVE THE MOUNTING NUT FROM THE AIR BLOCK. CLEARLY MARK THE AIRLINES ON THE AIR
DISTRIBUTATION BLOCK BEFORE DISCONNECTING. (FIGURE 8)
FIGURE 8
FIGURE 9
10.
AFTER THE AIR LINES ARE REMOVED, UNPLUG THE AIR SPRINGS VALVE WIRING. (FIGURE 9)
