Air Suspension A-2724 REV 1 User Manual
Page 10
10
REV 1
12/13/2013
A-2724
A-
2724
ARNOTT REAR AIR SPRING
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(EXC. AMG)

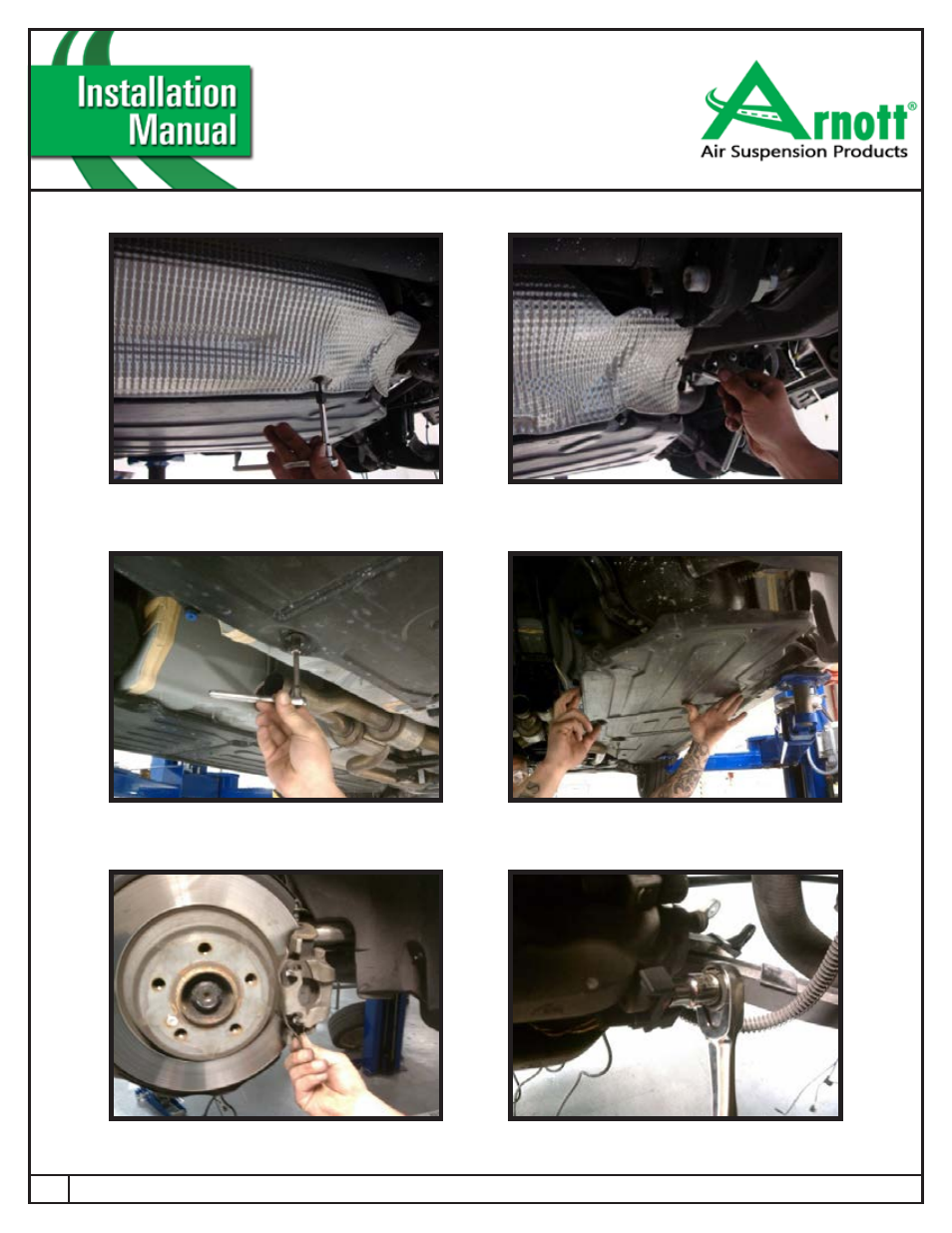

FIGURE 16
FIGURE 17
18.
LOOSEN BOLTS AND REMOVE BOTH REAR ROCK GUARDS. (FIGURE 30-17)
17.
LOOSEN BOLTS AND REMOVE THE REAR HEAT SHIELDS. (FIGURE 16)
19.
REMOVE CALIPER CLIPS, AND THEN REMOVE BOLTS FROM BRAKE PAD WEAR SENSORS. (FIGURE 18)
FIGURE 18
