Air Suspension A-2724 REV 1 User Manual
Page 8
8
REV 1
12/13/2013
A-2724
A-
2724
ARNOTT REAR AIR SPRING
FOR
2002-2009
MERCEDES-BENZ E-CLASS
FOR
2005-2011
MERCEDES-BENZ CLS-CLASS
(EXC. AMG)

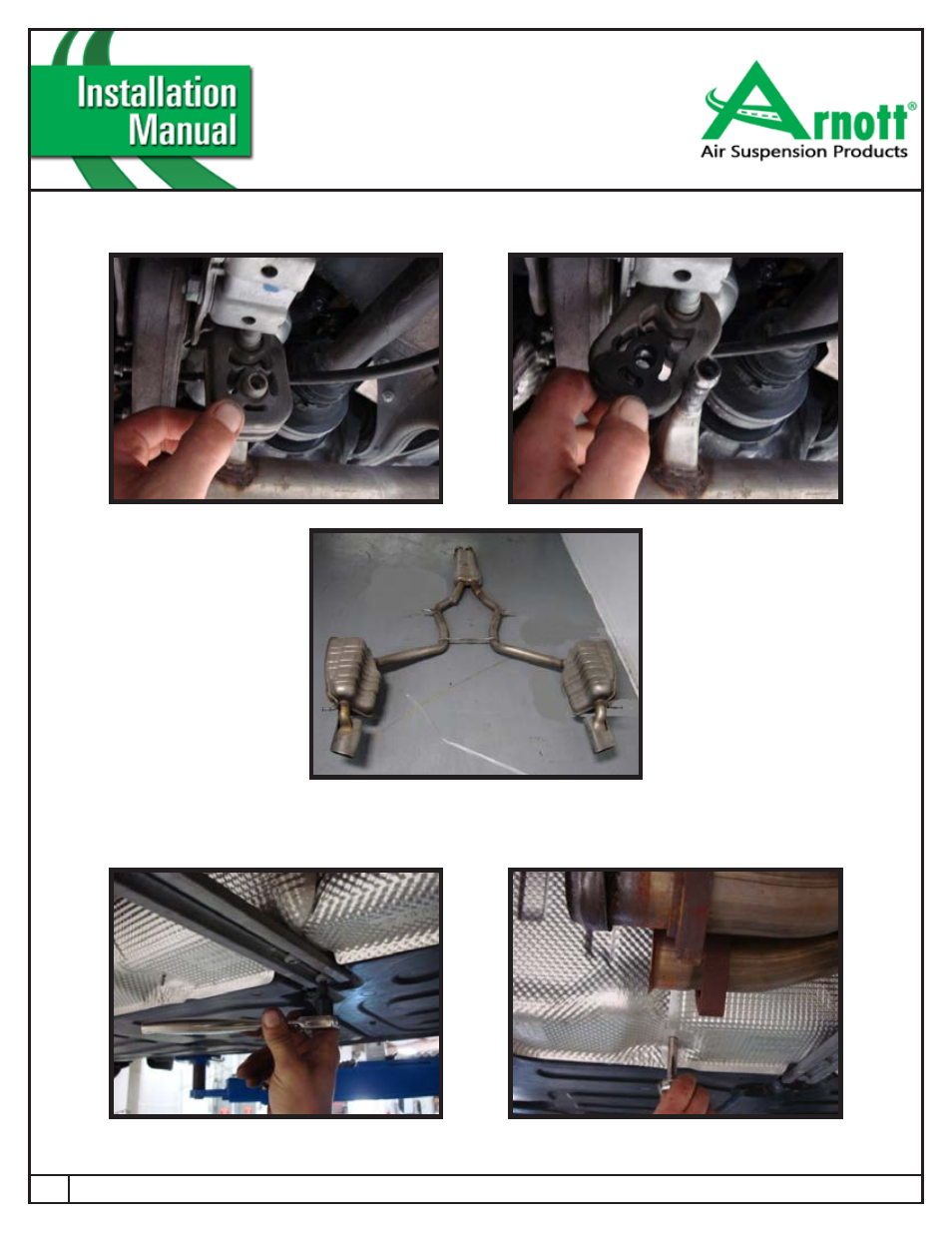

FIGURE 11
12.
WITH THE EXHAUST STILL SUPPORTED, REMOVE THE RUBBER HANGERS. THEN REMOVE THE EXHAUST.
(FIGURE 11)
13.
REMOVE THE DRIVESHAFT SAFETY BAR, AND THE TWO-PIECE HEAT SHEILD TO EXPOSE THE DRIVE SHAFT
CARRIER BEARING. (FIGURE 30-12)
FIGURE 12
