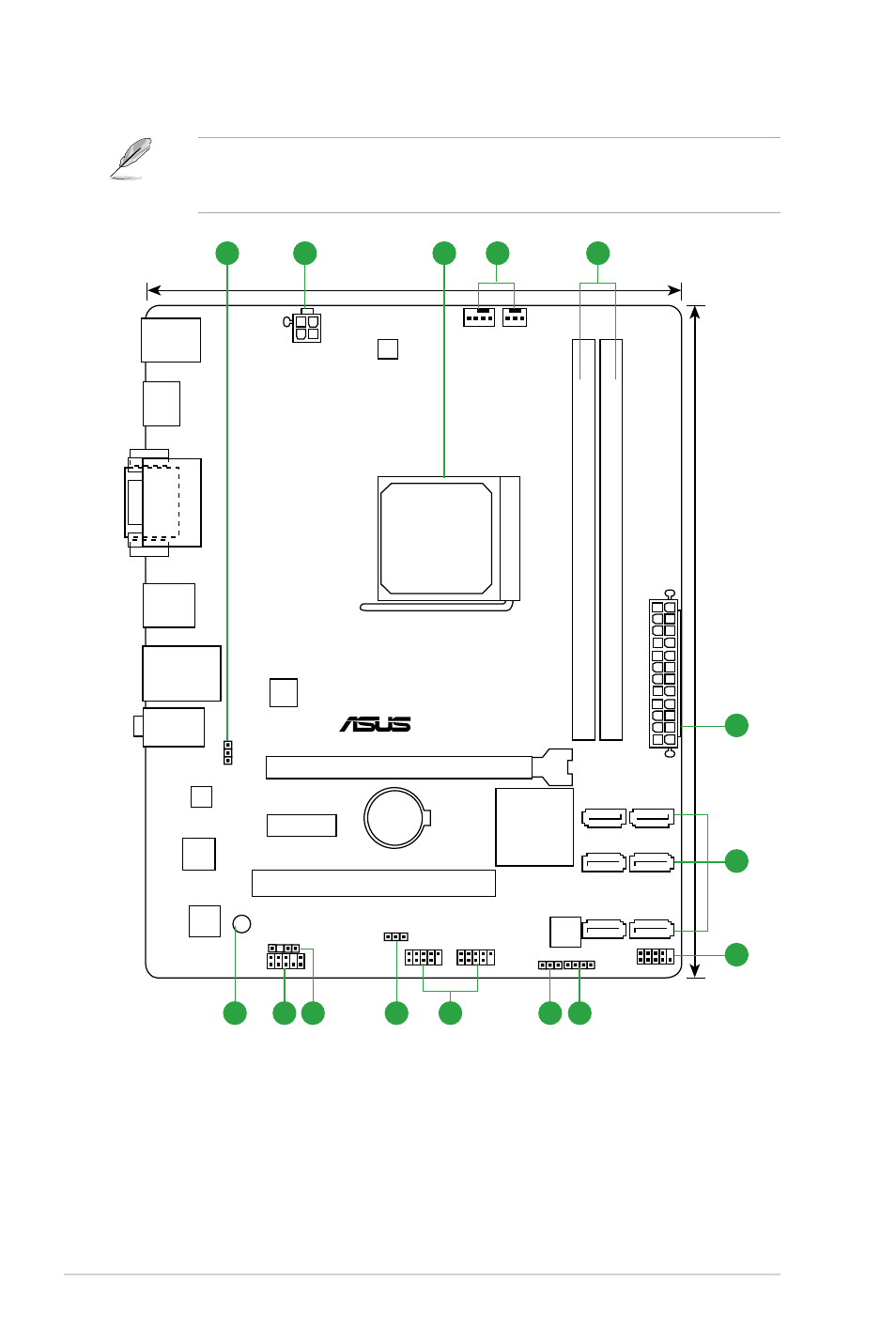

1.3.3 Motherboard layout
A55M-A/USB3
PCIEX16
PCIEX1_1
PCI1
F_PANEL
SPEAKER CLRTC
USBPWF
KB_USBWB
USB56 USB34
AAFP
SPDIF_OUT
ATX12V
EATXPWR
CPU_FAN CHA_FAN
BATTERY
Super
I/O
ALC
887
RTL
8111F
ASM
1042
32Mb
BIOS
SB_PWR
23.6cm(9.3in)
AMD ®
A55
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA6G_5 SATA6G_6
SATA6G_3 SATA6G_4
SATA6G_1 SATA6G_2
AUDIO
KBMS
LAN1_USB12
USB1112
HDMI
18.8cm(7.4in)
DVI_VGA
SOCKET FM2
DIGI
+VRM
3 2 1 5 4
6
7
2
8 9 10 11 12 13 14
A55M-A Series motherboards include A55M-A and A55M-A/USB3 models. The package
contents vary between models. The layout illustrations in this user guide are for A55M-
A/USB3 only.
Chapter 1: Product introduction 1-6
