III. INSTALLATION

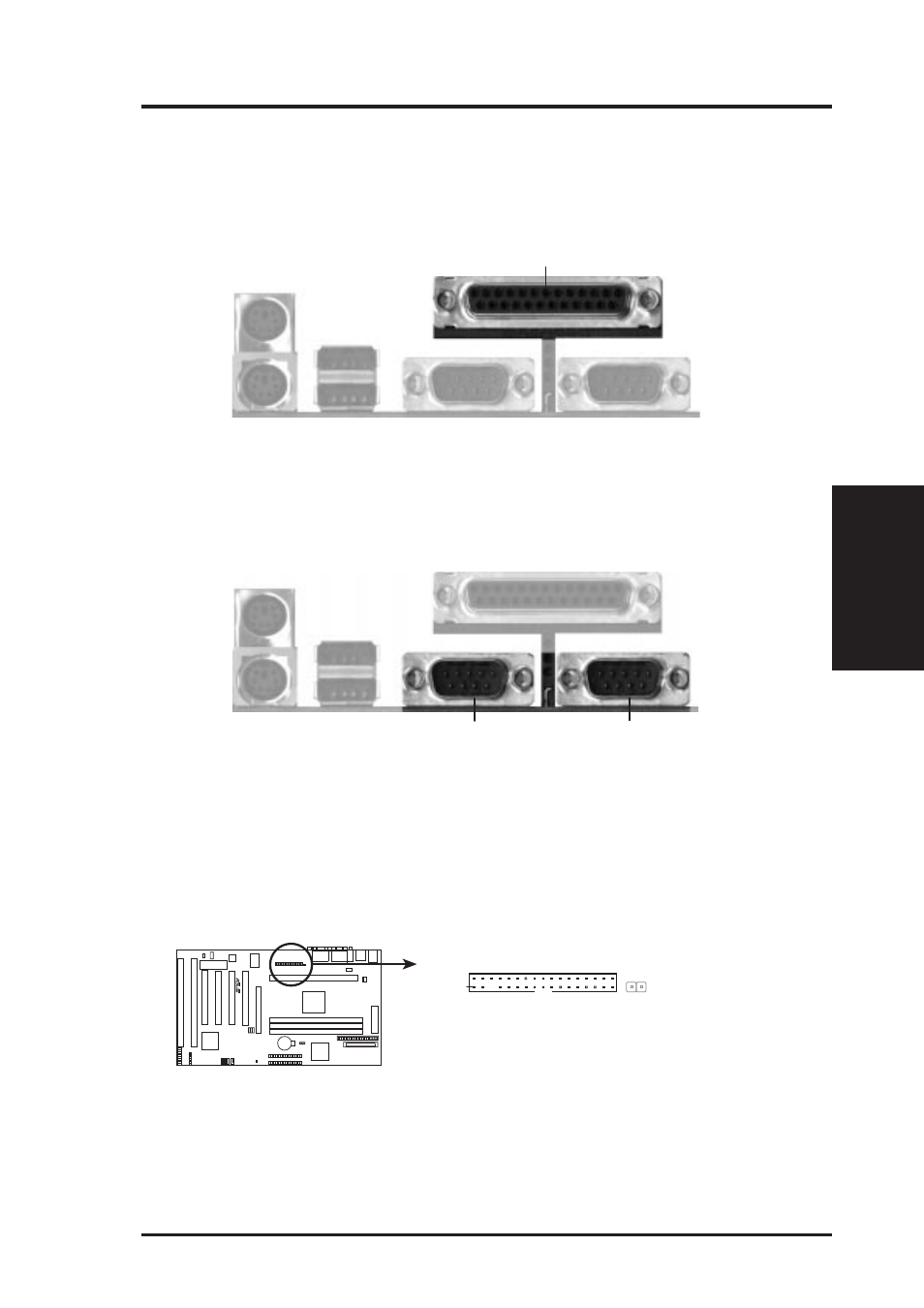

3. Parallel Printer Connector (25-pin Female)

You can enable the parallel port and choose the IRQ through “Onboard Parallel
Port” in Chipset Features Setup of the BIOS SOFTWARE. NOTE: Serial print-
ers must be connected to the serial port.

Parallel (Printer) Port (25-pin Female)

4. Serial Port COM1 and COM2 Connectors (Two 9-pin Male)

The two serial ports can be used for pointing devices or other serial devices. See
“Onboard Serial Port...” in Chipset Features Setup of the BIOS SOFTWARE.

COM 1

COM 2

Serial Ports (9-pin Male)

5. Floppy Disk Drive Connector (34-1pin FLOPPY)

This connector supports the provided floppy disk drive ribbon cable. After con-
necting the single end to the board, connect the two plugs on the other end to the
floppy drives. (Pin 5 is removed to prevent inserting in the wrong orienta-
tion when using ribbon cables with pin 5 plugged).

R

P2L97-S Floppy Disk Drive Connector

NOTE: Orient the red stripe to Pin 1

Pin 1

Floppy Disk Drive Connector
