Iii. installation, Jumper settings – Asus P2L97-S User Manual
Page 13
ASUS P2L97-S User’s Manual
13
III. INSTALLATION
III. INST
ALLA
TION
(Jumpers)
Jumper Settings
1. Onboard SCSI Setting (SCSI)
This motherboard gives you the option of using the onboard Adaptec 7880 SCSI
BIOS through either the PnP and PCI Setup of the BIOS SOFTWARE or the
use of jumper caps.
Selection
SCSI
Enable
[1-2]
Disable
[2-3]
Enable
SCSI
Disable
SCSI

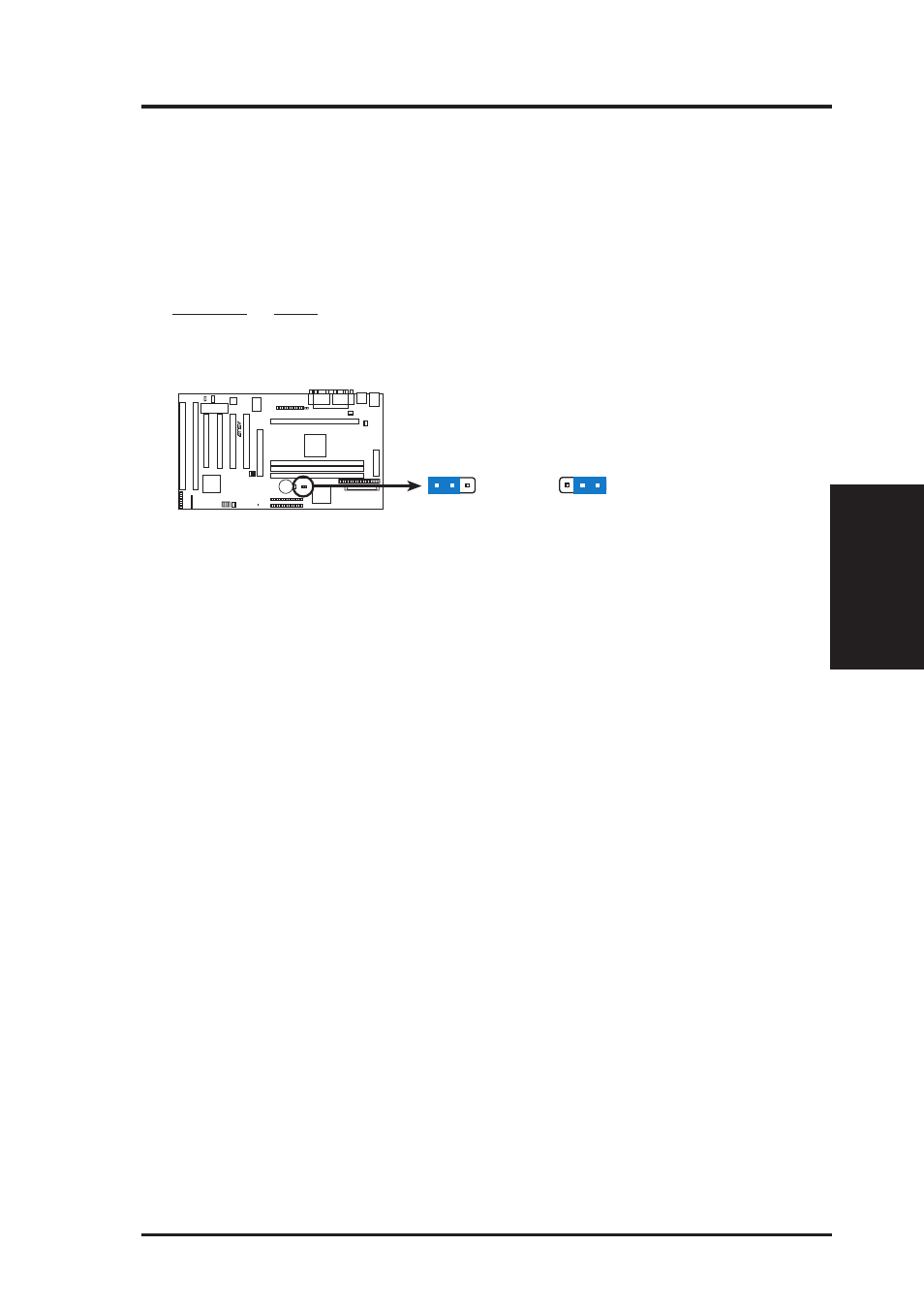

P2L97-S SCSI Setting
1 2 3
1 2 3
R
