Cache Vault Accessory Kit

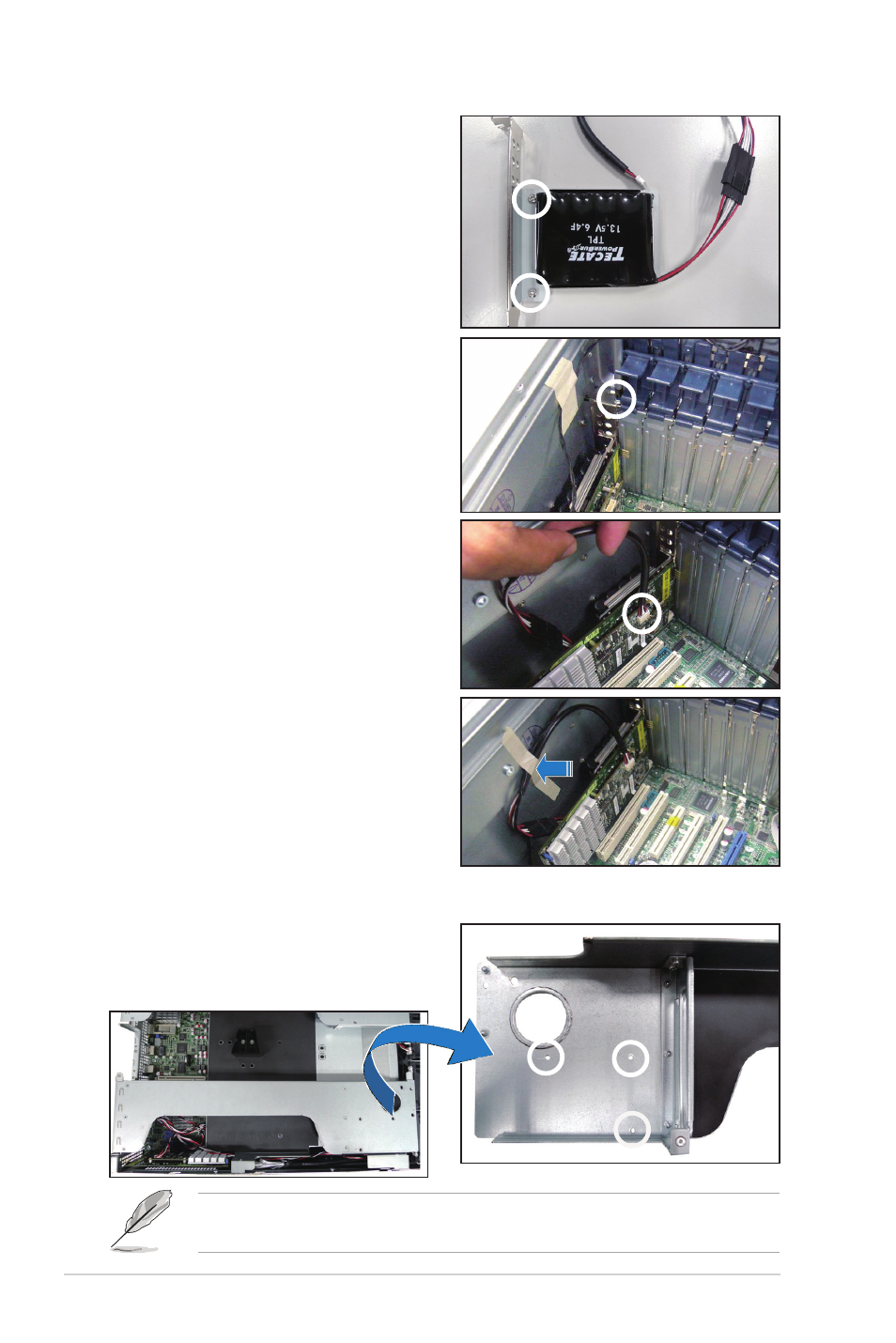

4. Install the PIKE 2208 card installed
with the Cache Vault Flash Module
on the system. Connect the cable
from the Cache Vault Power Module
to the Cache Vault Flash Module.
5. Secure the cable to the bottom
chassis cover using a piece of
acetate cloth tape.
Installing the kit on RS920-E7/RS8, RS926-E7/RS8 server systems
1. Take out the riser card bracket from
the system and place it on a flat, stable
surface. Locate the three screws.
For more details on how to uninstall the riser card bracket, refer to the user
manual that came with your server system.
2. Align the two screws on the side
of the steel CVPM holder installed
with the Cache Vault Power Module
to the screw holes of the full-height
steel bracket. Secure the holder
assembly with the bundled screws
(3).
3. Place the holder assembly into the
system and secure it with the screw
removed earlier in step 1.
