Cache Vault Accessory Kit
Installing the Cache Vault Kit on specific
ASUS server systems
After installing the Cache Vault Falsh Module on the PIKE 2208 card, and installing
the Cache Vault Power Module on the steel CVPM clip and holder, install these two
assemblies to the specific ASUS server systems as instructed below.
Installing the kit on RS720-X7/RS8, RS720-E7/RS12, RS720-E7/
RS12-E server systems

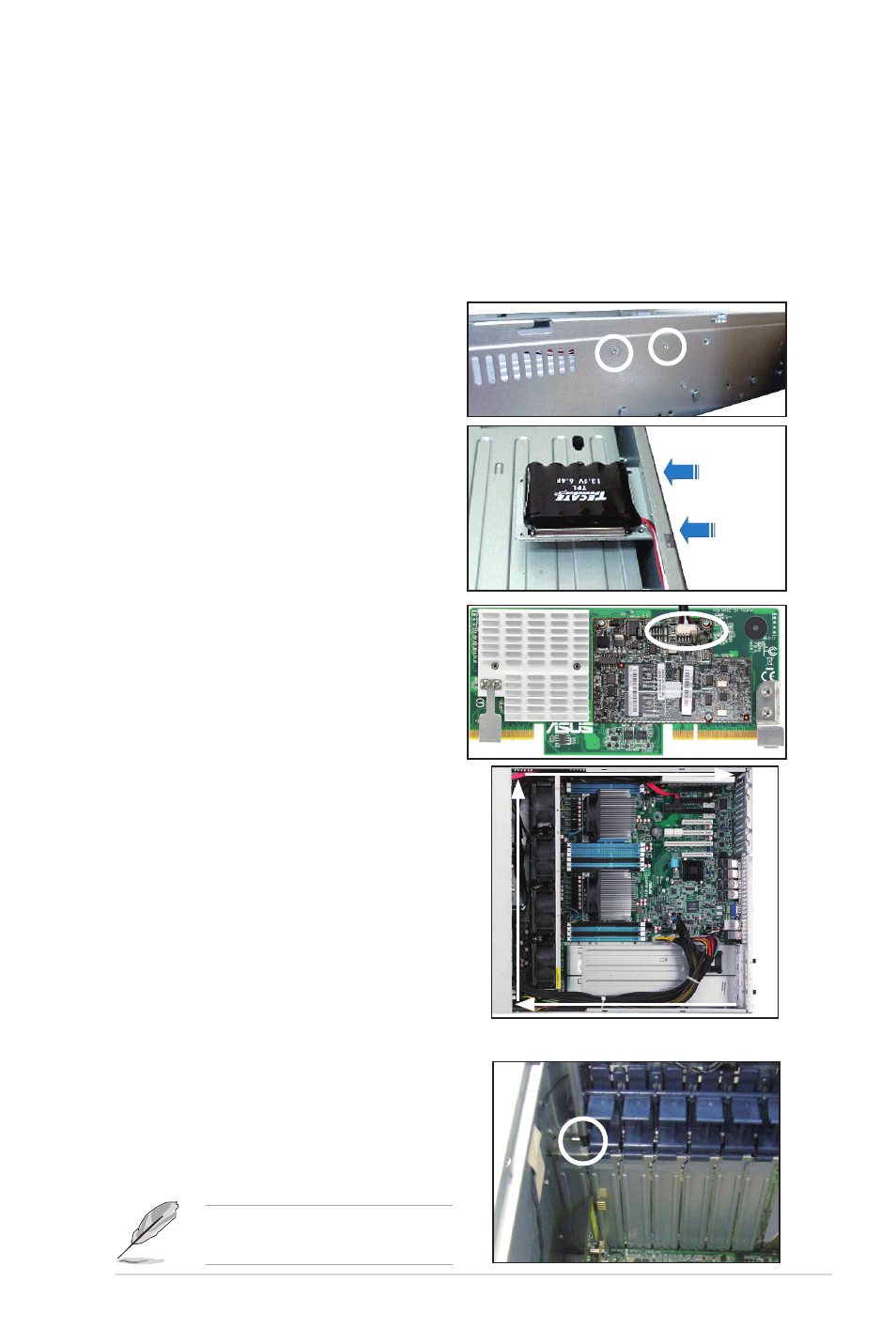

1. Locate the two screw holes on the
right side of the server chassis.
2. Align the two screws on the side of
the steel CVPM holder installed with
the Cache Vault Power Module to
the two screw holes on the right side
of the server chassis. Secure the
holder assembly with two screws, and
connect the 42’’ cable extender to the
Cache Vault Power Module.
screw
locations
3. Connect the other end of the 42’’
cable extender to the Cache Vault
Flash Module that is installed on the
PIKE 2208 card.
4. Install the PIKE 2208 card into the
server system. Arrange the cable
extender in the direction of the arrows.
Installing the kit on TS700-X7/PS4, TS700-E7/RS8 server systems
1. Remove the chassis cover and lay
the system on its side on a flat, stable
surface. Use a Phillip driver to remove
the screw on the metal slot cover and set
the screw aside. Remove the metal slot
cover.
Remove the metal slot cover close
to the bottom of the server chassis.
