Cache Vault Accessory Kit
2. Locate the three screw washers on
the Cache Vault Flash Module.
3. Align the three screw
washers to the three screw
holes on the PIKE 2208
card. Drive in the bundled
screws (1) to secure the
Cache Vault Flash Module.
If the PIKE 2208 card is already installed in a server system, uninstall it from the
system, and install the Cache Vault Flash Module to the PIKE 2208 card as instructed
above. For details, refer to user manual that came with your server system.
The images shown below are for reference only.
Installed on a 2U server system. Installed on a 5U server system.
2. Install the Cache Vault Power Module on your server system.

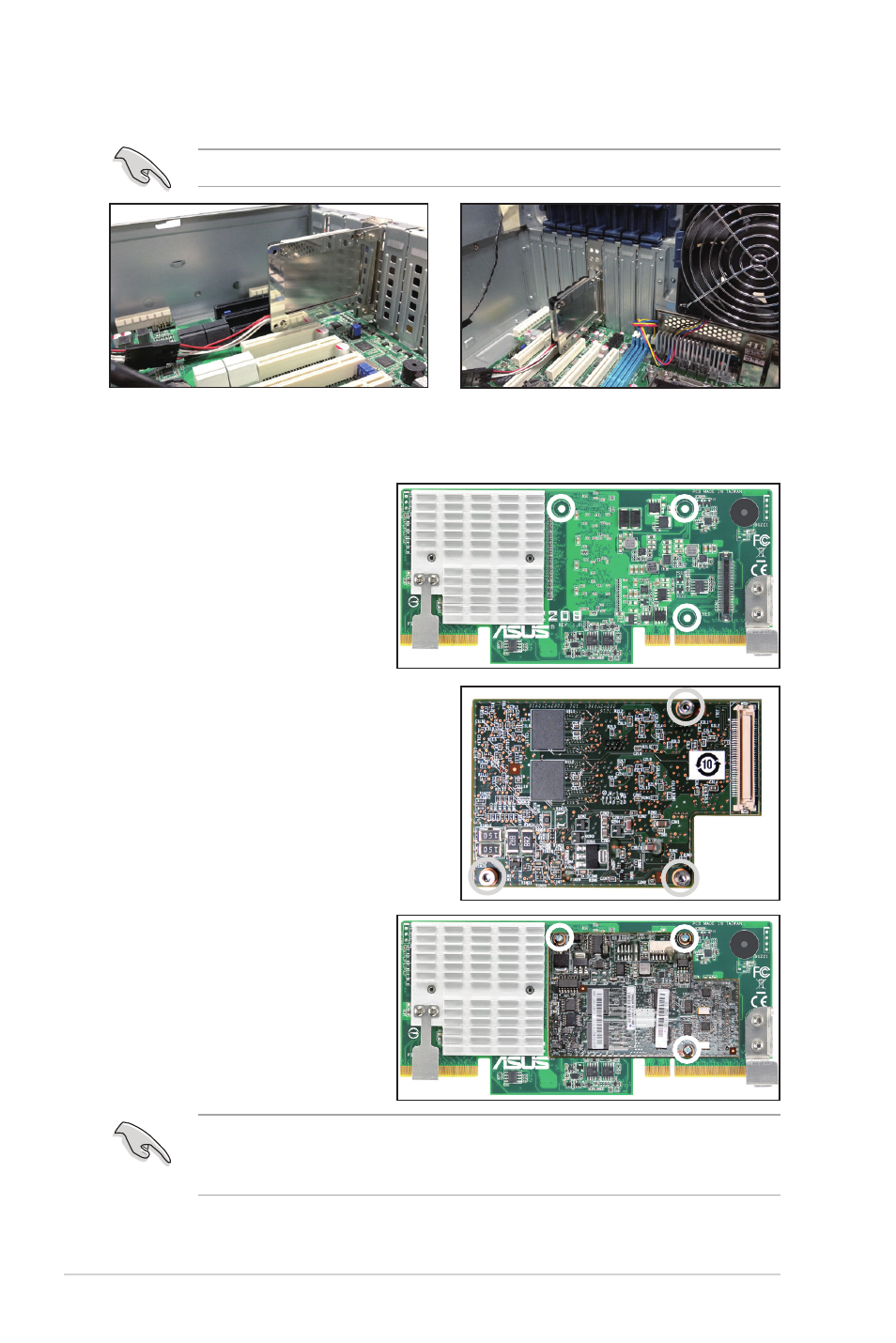

Installing the Cache Vault Flash Module on the PIKE 2208 card
1. Place the PIKE 2208 card
on a flat, stable surface.
Locate the three screw
holes on it.
4
