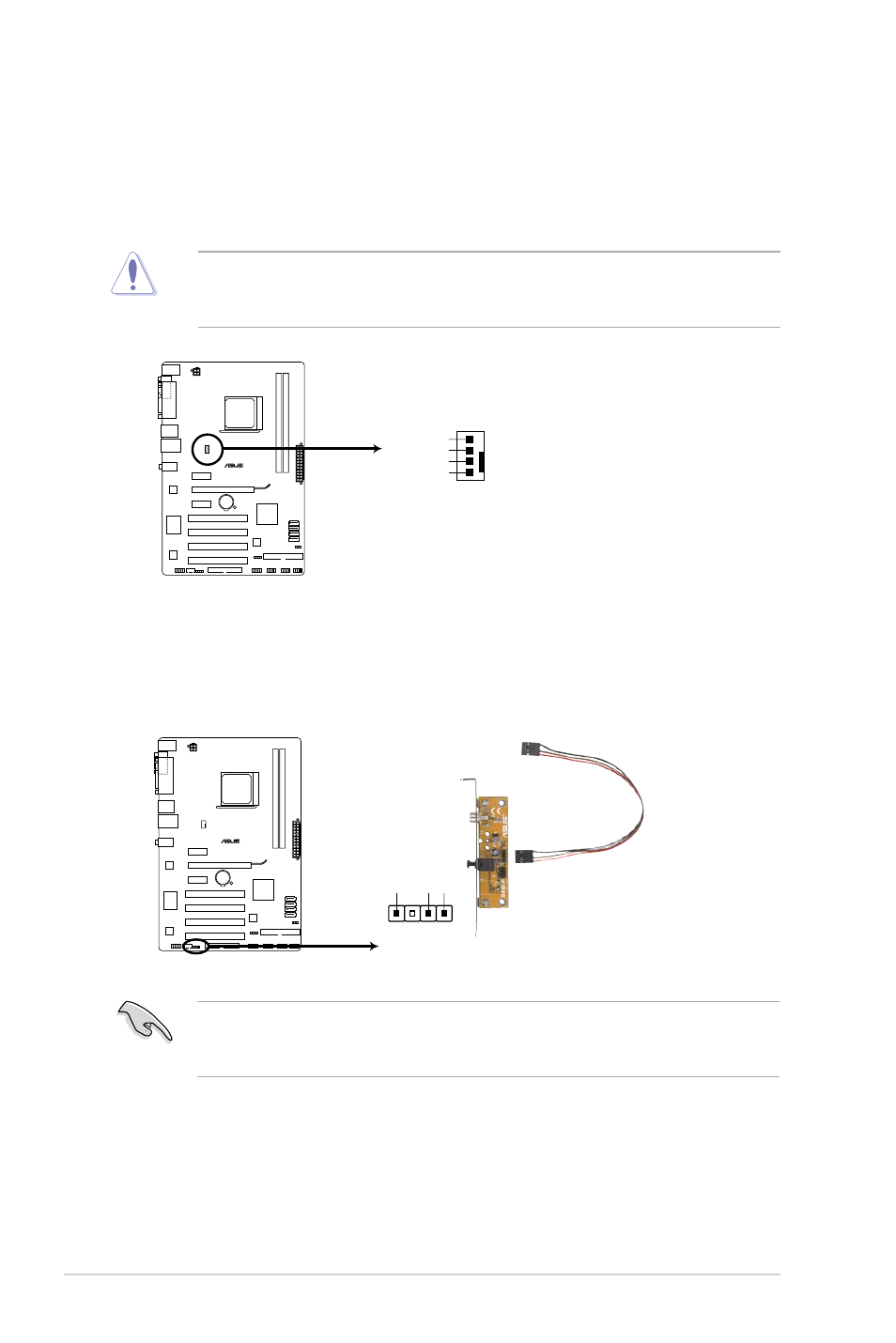

10. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s).
SPDIF_OUT
+5
V
SPDIFOU
T
GND
M2N68 SE
M2N68 SE Digital audio connector
Ensure that the audio device of Sound playback is Realtek High Definition Audio (the
name may be different based on the OS). Go to Start > Control Panel > Sounds and
Audio Devices > Sound Playback to configure the setting.
9. CPU fan connector (4-pin CPU_FAN)
The fan connector supports cooling fans of 350 mA~2000 mA (24 W max.) or a total
of 1 A~7 A (84 W max.) at +12V. Connect the fan cable to the fan connector on the
motherboard, making sure that the black wire of each cable matches the ground pin of
the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
M2N68 SE
M2N68 SE CPU fan connector
1-24 ASUS M2N68 SE
