Chapter 4: Motherboard information 4-10
4.4 Connectors

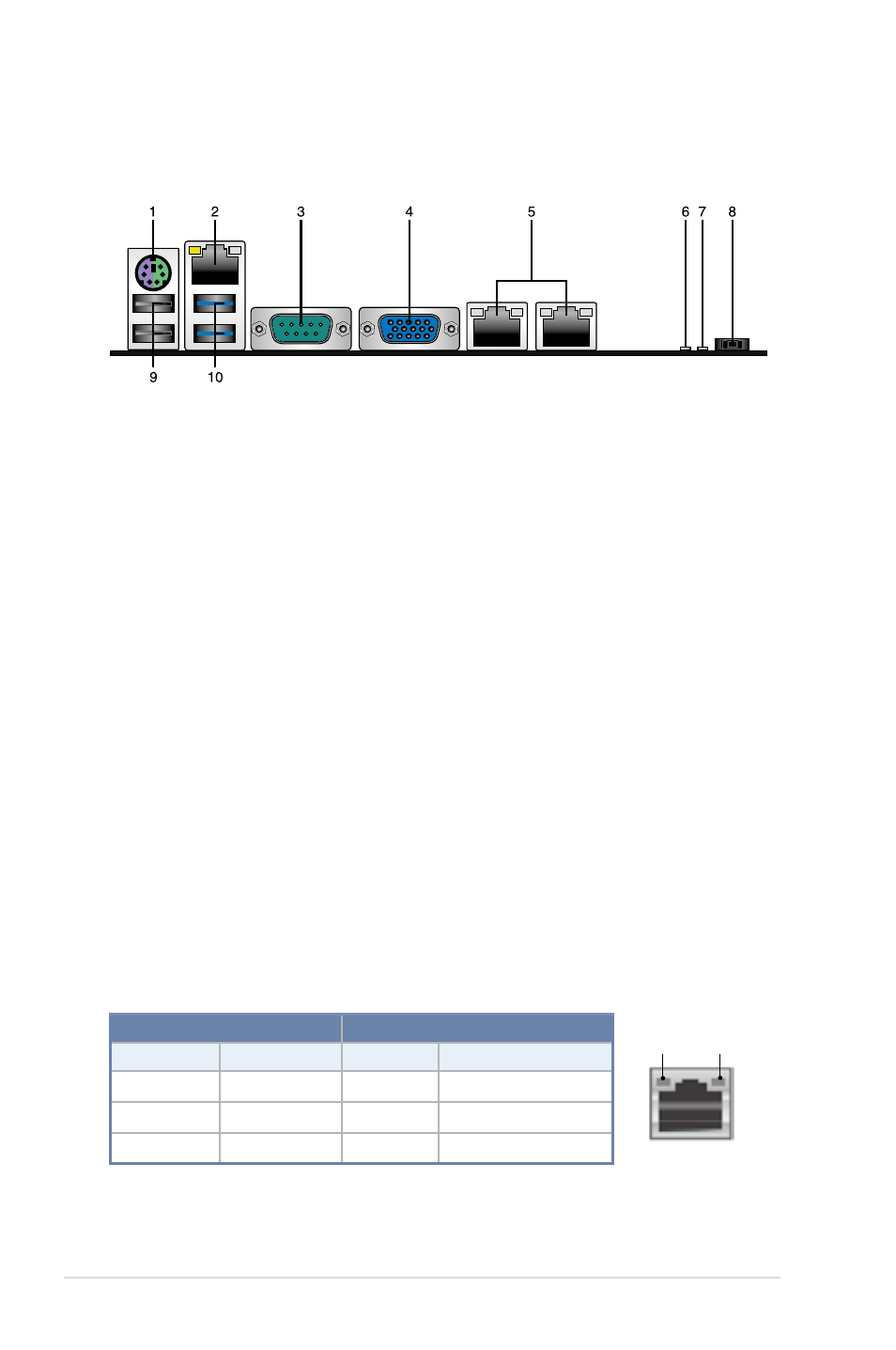

4.4.1 Rear panel connectors
1. PS/2 keyboard/mouse port (purple/green). This port is for a PS/2 keyboard or
mouse.
2. RJ-45 port for iKVM. This RJ-45 port functions only when you install an ASMB7
management card.
3. Serial port. This port connects a modem, or other devices that conform with serial
specification.
4. Video Graphics Adapter port. This port is for a VGA monitor or other VGA-compatible
devices.
5. RJ-45 ports for LAN. These ports allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
6. +5V_LED. This LED lights up when the Power-on button is pressed and the system is
on.
7. LOCLED1. The Locate LED is a user-activated LED on the front of the server module
that can be remotely turned on or off. It is used to find a specific server module within a
chassis.
8. Power-on Button. Press this button to power on the system.
9. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are available
for connecting USB 2.0 devices.
10. USB 3.0 ports 1 and 2. These two 4-pin USB ports are available for connecting USB 3.0
devices.
LAN port LED indications
LAN port
SPEED LED ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
